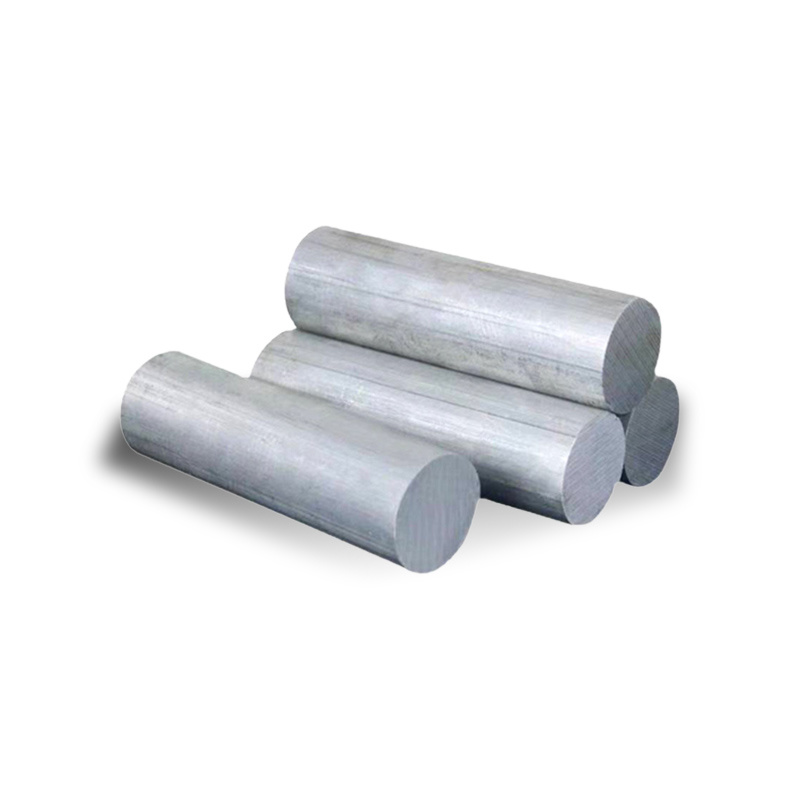

Monel R-405 Bar
SKU: HC-1146016367322939392
Monel R405 bar is made of an alloy with high strength and good corrosion resistance, as a chromium-cobalt superalloy. It is widely used in aerospace, petrochemical, marine engineering and other fields due to its excellent properties.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:haven@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Monel R405 bar is made of an alloy with high strength and good corrosion resistance, as a chromium-cobalt superalloy. It is widely used in aerospace, petrochemical, marine engineering and other fields due to its excellent properties. Monel R405 is a chromium-cobalt based superalloy with high strength and good corrosion resistance. It consists of elements such as chromium, cobalt, tungsten and aluminum. In addition, it contains small amounts of elements such as carbon, niobium, iron, and copper. T hese elements make it have excellent corrosion resistance and high strength. Monel R405 bar shows good corrosion resistance in strong alkali and medium strength sulfuric acid, hydrochloric acid, nitric acid and other solutions. Moreover, it has excellent corrosion resistance in seawater and chloride environments. Therefore, Monel R405 bar is often used in offshore engineering, such as offshore oil drilling platforms, seawater desalination equipment and so on. Lastly, It is able to maintain high strength and good oxidation resistance at high temperatures.
Specifications
Product Parameters
| Product Name | Monel R-405 Bar | |
| Outer Diameter | Round Bar | 4mm-500mm |
| Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
| Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
| Flat Steel | 1/2 "to 10",Thickness: 2mm-150mm,Can provide customized | |
| Length | 1-6 meters,Length can be customized | |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. | |
| Surface | Black,Bright Polished,Rough Turning,Matt Surface Treatment,NO.4,BA,etc. | |
| Certificate | ISO,SGS,BV | |
| Production Technology | Hot Rolling,Cold Rolling | |
Chemical Composition
| C | Si | S | Mn | Fe | Ni | Cu |
|---|---|---|---|---|---|---|
| 0.3 max | 0.5 max | 0.025 - 0.060 | 2.0 max | 2.5 max | 63.0 min | 28.0 - 34.0 |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
| 85 | 50 | 15 |
Physical Performance
| Units | Temperature in°C | |
| Density | 8.80 g/cm³ | Room |
| Specific Heat | 0.102 Kcal/kg.C | 21° |
| Melting Range | 1300-1350°C | - |
| Modulus of Elasticity | 179 KN/mm² | Room |
| Electrical Resistivity | 51.1 µΩ.cm | 21° |
| Coefficient of Expansion | 14.2 µm/m °C | 21 - 100° |
| Thermal Conductivity | 22.0 w/m-° K | 21° |
