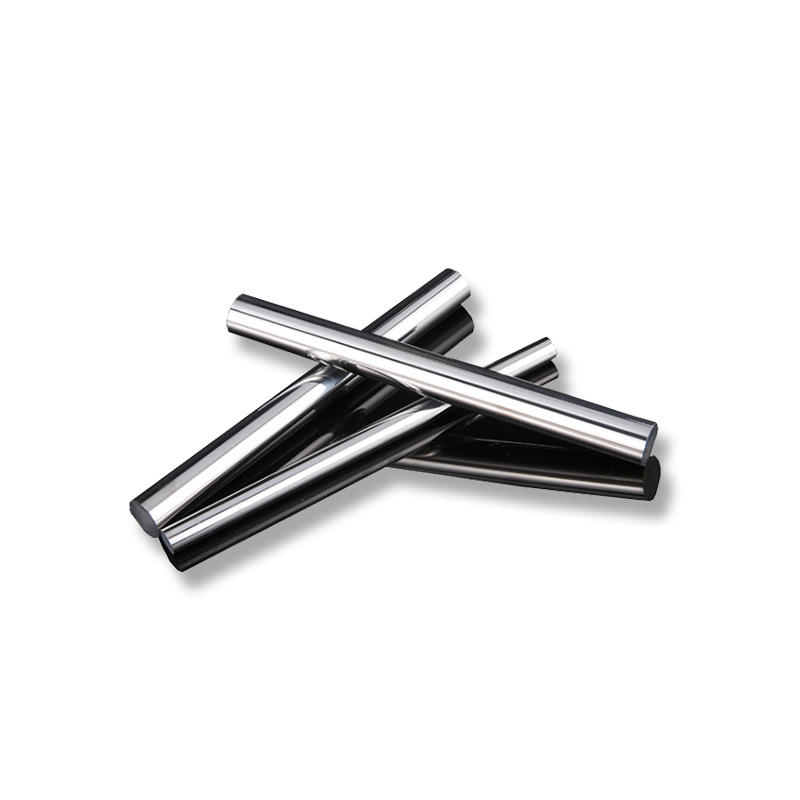

Titanium Grade 9 Bar
SKU: HC-1146016949202927616
Grade 9 titanium bar, also known as Ti-3Al-2.5V, is an alpha-beta titanium alloy consisting of 3% aluminum and 2.5% vanadium. This titanium alloy has some unique properties that make it suitable for a variety of applications, and it also has unique properties when it comes to forging.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:haven@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Grade 9 titanium bar, also known as Ti-3Al-2.5V, is an alpha-beta titanium alloy consisting of 3% aluminum and 2.5% vanadium. This titanium alloy has some unique properties that make it suitable for a variety of applications, and it also has unique properties when it comes to forging. Grade 9 titanium bar can maintain stable performance under high temperature and high pressure conditions , having remarkable strength and toughness . It is suitable for aerospace and aerospace engines and other fields. Besides, Grade 9 titanium bars can resist the erosion of corrosive media such as sea water and salt water, so they are widely used in marine engineering and chemical equipment. For another, Grade 9 titanium alloy has good weldability and is suitable for conventional welding, arc welding, laser welding and other processes. Lastly, Grade 9 titanium has a lower density and is lighter than many other metals, giving it an advantage in parts requiring lightweight designs. Grade 9 titanium bar is widely used in aerospace, marine engineering, chemical equipment and other fields.
Specifications
Product Parameters
| Product Name | Titanium Grade 9 Bar | |
| Outer Diameter | Round Bar | 4mm-500mm |
| Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
| Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
| Flat Steel | 1/2 "to 10",Thickness: 2mm-150mm,Can provide customized | |
| Length | 1-6 meters,Length can be customized | |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. | |
| Surface | Black,Bright Polished,Rough Turning,Matt Surface Treatment,NO.4,BA,etc. | |
| Certificate | ISO,SGS,BV | |
| Production Technology | Hot Rolling,Cold Rolling | |
Chemical Composition & Mechanical Properties
| STM/ASME | GB | JIS | Element Content(wt%) | Mechanical Properties | |||||||
| N,max | C,max | H,max | Fe,max | O,max | Others | Strength Of Extension | Ductility | ||||
| Mpa,min | %,min | ||||||||||
| Pure Titanium | Gr.1 | TA1 | Class1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | - | 240 | 24 |
| Gr.2 | TA2 | Class2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 20 | ||
| Gr.3 | TA3 | Class3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 18 | ||
| Gr.4 | TA4 | Class4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 15 | ||
| Titanium Alloy | Gr.5 | TC4 | Class60 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | AI:5.5-6.75 | 895 | 10 |
| Ti-6A1-4V | V:3.5-4.5 | ||||||||||
| Gr.7 | TA9 | Class12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | Pd:0.12-0.25 | 345 | 20 | |
| Gr.9 | TC2 | Class61 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | AI:2.5-3.5 | 620 | 15 | |
| V:2.0-3.0 | |||||||||||
| Gr.11 | TA9-1 | Class11 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | Pd:0.12-0.25 | 240 | 24 | |
| Gr.23 | TC4 ELI | Class60E | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | AI:5.5-6.5 | 828 | 10 | |
| V:3.5-4.5 | |||||||||||
