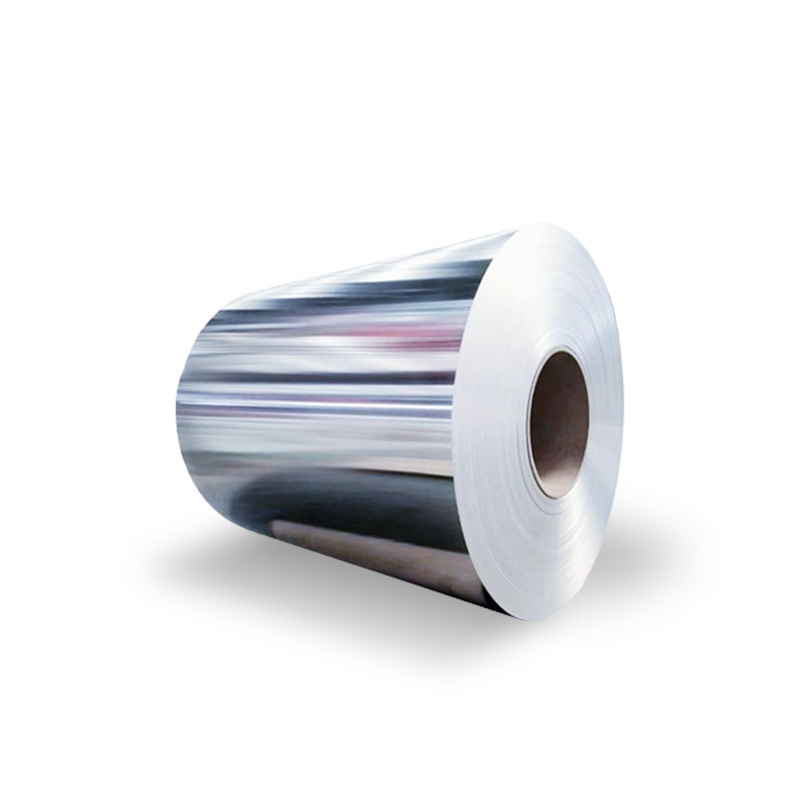

Monel 400 Coil
SKU: HC-1146006177304936448
Monel 400, also known as UNS N04400 or German grade 2.4360, is a high-performance alloy whose unique chemical composition and excellent mechanical properties enable it to perform well in various harsh environments. Whether in the marine engineering or chemical industries, Monel 400 coil plays an indispensable role, providing reliable protection and support for various equipment and components.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:haven@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Monel 400, also known as UNS N04400 or German grade 2.4360, is a high-performance alloy whose unique chemical composition and excellent mechanical properties enable it to perform well in various harsh environments. Whether in the marine engineering or chemical industries, Monel 400 coil plays an indispensable role, providing reliable protection and support for various equipment and components. Monel 400 is a corrosion-resistant alloy with the largest dosage, the most wide range of uses, and excellent comprehensive properties. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, and also has excellent corrosion resistance against hot concentrated alkali liquid. It is also resistant to corrosion from neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of this alloy is that it generally does not produce stress corrosion cracking and has good cutting performance. Monel 400 coil is widely used in many corrosive applications, particularly in the marine and chemical industries. Monel 400 can be easily machined through conventional machining operations. It is a relatively soft material suitable for thermoforming into almost any shape.
Specifications
Product Parameters
| Product Name | Monel 400 Coil |
| Thickness | 2.5mm-10.0 mm |
| Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc. |
| Width | 610-2000 mm |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. |
| Surface | BA,2B,NO.1,NO.4,4K,HL,8K,etc. |
| Certificate | ISO,SGS,BV |
| Production Technology | Hot Rolling,Cold Rolling |
Chemical Composition
| Nickel,min A | Copper | lron,max | Manganese,max | Carbon,max | Silicon,max | Sulfur,max |
|---|---|---|---|---|---|---|
| 63.0% | 28.0% - 34.0% | 2.5% | 2.0% | 0.3% | 0.5% | 0.024% |
Mechanical Properties
| Condition (Temper) | Tensile Strength,min,psi (MPa) | Yield Strength A (0.2 % offset),min,psi (MPa) | Elongation in 2 in. or 50 mm,or 4D,min,% | Rockwell Hardness (B Scale) b,c |
|---|---|---|---|---|
| Hot-Rolled Plate | ||||
| Annealed | 70000 (485) | 28000 (195) | 35 | - |
| As-Rolled D,E | 75000 (515) | 40000 (275) | 25 | - |
| Hot-Rolled Sheet | ||||
| Annealed | 70000 (485) | 28000 (195) | 35 | - |
| Cold-Rolled Sheet | ||||
| Annealed | 70000 - 85000 (485 - 585) | 28000 (195) | 35 | - |
| Quarter-Hard | - | - | - | 73 - 83 |
| Half-Hard | - | - | - | 82 - 90 |
| Hard | 100000 (690) | 90000 (620) | 2 | - |
| Cold-Rolled Strip | ||||
| Annealed | 70000 - 85000 (485 - 585) F | 28000 (195) | 35 F | - |
| Skin Hard | - | - | - | 68 - 73 |
| Quarter-Hard | - | - | - | 73 - 83 |
| Half-Hard | - | - | - | 82 - 90 |
| Three-Quarter-Hard | - | - | - | 89 - 94 |
| Hard | 100000 (690) F | 90000 (620) F | 2 F | - |
| Spring Temper | - | - | - | 98 min |
Physical Performance
| Units | Temperature in°C | |
| Density | 8.14 g/cm³ | Room |
| Specific Heat | 0.105 Kcal/kg.C | Room |
| Melting Range | 1370-1400°C | - |
| Modulus of Elasticity | 196 KN/mm² | 20° |
| Electrical Resistivity | 113 µΩ.cm | 25° |
| Coefficient of Expansion | 14.1 µm/m °C | 25 - 100° |
| Thermal Conductivity | 11.1 w/m-° K | 25° |
