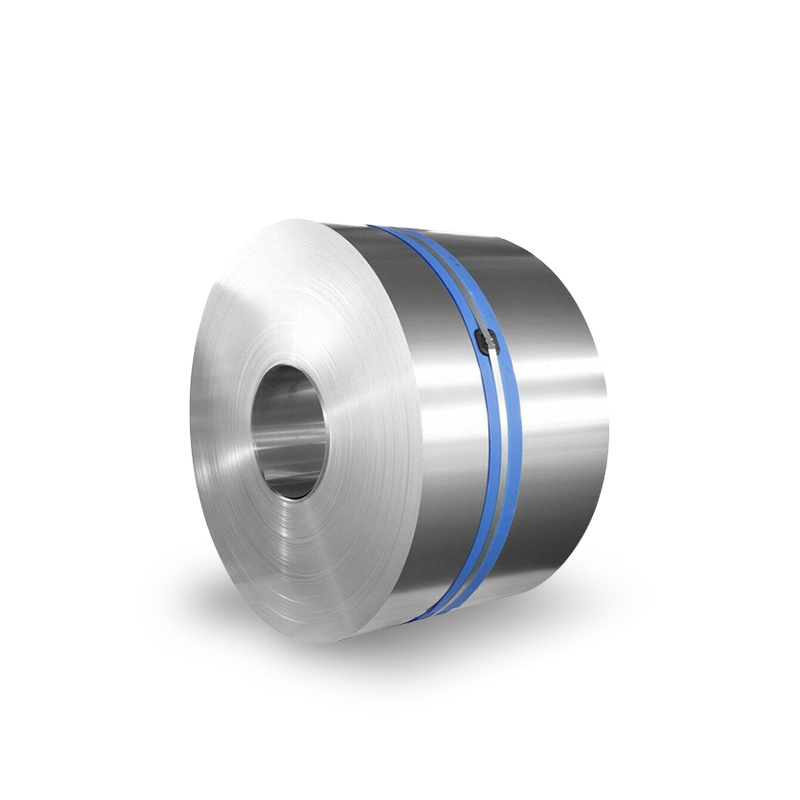

Monel R-405 Coil
SKU: HC-1146006247752466432
Monel R405 coil is made of an alloy with high strength and good corrosion resistance, belonging to the chromium-cobalt superalloy. It is widely used in aerospace, petrochemical, marine engineering and other fields due to its excellent properties.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:haven@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Monel R405 coil is made of an alloy with high strength and good corrosion resistance, belonging to the chromium-cobalt superalloy. It is widely used in aerospace, petrochemical, marine engineering and other fields due to its excellent properties. Monel R405 is a chromium-cobalt based superalloy with high strength and good corrosion resistance. It consists of elements such as 30 percent chromium, 20 percent cobalt, 5 percent tungsten and 2 percent aluminum. In addition, it contains small amounts of elements such as carbon, niobium, iron, and copper. The addition of these elements makes it have excellent corrosion resistance and high strength. Monel R405 coil shows good corrosion resistance in strong alkali and medium strength sulfuric acid, hydrochloric acid, nitric acid and other solutions. In addition, it also has excellent corrosion resistance in seawater and chloride environments. Therefore, Monel R405 coil is often used in offshore engineering, such as offshore oil drilling platforms, seawater desalination equipment and so on. The high strength of Monel R405 alloy gives it excellent performance at high temperatures. It is able to maintain high strength at high temperatures and has good oxidation resistance. Therefore, Monel R405 coil is often used in the aerospace field.
Specifications
Product Parameters
| Product Name | Monel R-405 Coil |
| Thickness | 2.5mm-10.0 mm |
| Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc. |
| Width | 610-2000 mm |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. |
| Surface | BA,2B,NO.1,NO.4,4K,HL,8K,etc. |
| Certificate | ISO,SGS,BV |
| Production Technology | Hot Rolling,Cold Rolling |
Chemical Composition
| C | Si | S | Mn | Fe | Ni | Cu |
|---|---|---|---|---|---|---|
| 0.3 max | 0.5 max | 0.025 - 0.060 | 2.0 max | 2.5 max | 63.0 min | 28.0 - 34.0 |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
| 85 | 50 | 15 |
Physical Performance
| Units | Temperature in°C | |
| Density | 8.80 g/cm³ | Room |
| Specific Heat | 0.102 Kcal/kg.C | 21° |
| Melting Range | 1300-1350°C | - |
| Modulus of Elasticity | 179 KN/mm² | Room |
| Electrical Resistivity | 51.1 µΩ.cm | 21° |
| Coefficient of Expansion | 14.2 µm/m °C | 21 - 100° |
| Thermal Conductivity | 22.0 w/m-° K | 21° |
