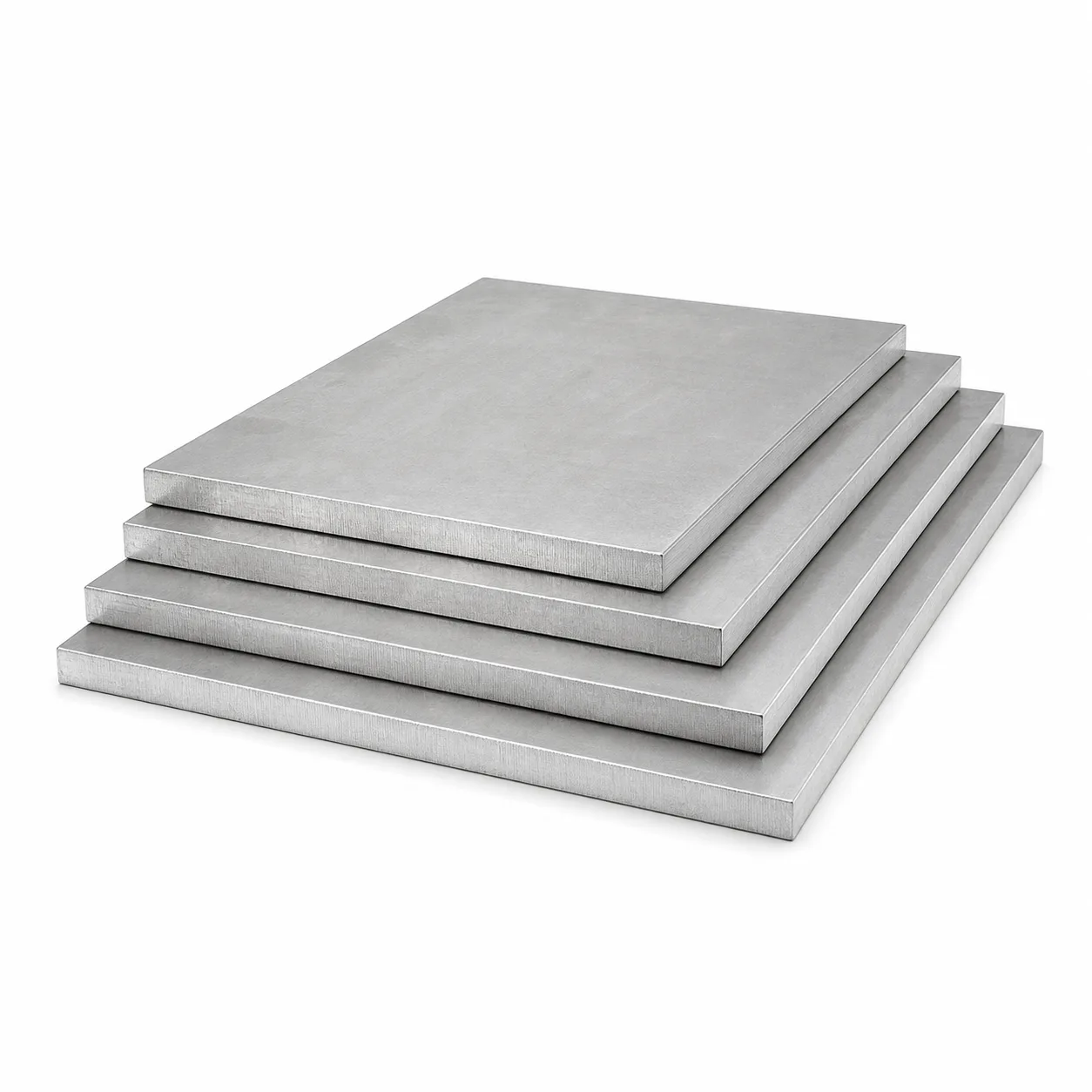

3003 Aluminum Plate
SKU: HC-1138067231982034944
3003 aluminum plate is a commonly used product in the aluminum-manganese alloy series. Due to the manganese alloy element, this product has excellent anti-rust properties and is also called anti-rust aluminum plate. It is often used for processing parts and components that require good formability, high corrosion resistance and good weldability.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
3003 aluminum plate is a commonly used product in the aluminum-manganese alloy series. Due to the manganese alloy element, this product has excellent anti-rust properties and is also called anti-rust aluminum plate. It is often used for processing parts and components that require good formability, high corrosion resistance and good weldability.
Specifications
3003 Aluminum Plate Description
| Width | 20-3000mm or Customized | Thickness | 0.1-120mm or Customized |
| Length | 100-12000mm or Customized | Certificate | ISO,SGS,BV |
| Standard | JIS,AISI,ASTM,GB,DIN,EN,etc. | ||
| Brand | 1000 Series: 1050,1060,1070,1100,1200,1235,etc. 3000 Series: 3003,3004,3005,3104,3105,3A21,etc. 5000 Series: 5005,5052,5083,5086,5154,5182,5251,5754,5A05,etc. 6000 Series: 6061,6063,6082,6A02,etc. 7000 Series: 7050,7475,7075,etc. 8000 Series: 8A06,8011,8090,etc. | ||
| Surface | Coating,Embossing,Drawing,Polishing,Anodizing,etc. | ||
| OEM Service | Punching,Cutting Special Size,Making Flat Surface,Surface Treatment,etc. | ||
| Delivery Time | Received 30%,After deposit 7-15 working day | ||
| Application | Construction,Shipbuilding,Decoration,Industry,Manufacturing,Machinery,Hardware And Other Fields,etc. | ||
| Sample | Free Offers Sample | ||
| Packaging | Strapping,plastic bag,film,wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Margin |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Margin |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Margin |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Margin |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Margin |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Margin |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Margin |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Margin |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Margin |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Margin |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Margin |
Mechanical Properties
| Tensile Strength (MPa) | Test Stress (MPa) | Hardness HB | Elongation Rate (%) |
|---|---|---|---|
| 95-135 | ≥ 35 | 28 | 10 |
Physical Performance
| Density | Melting Point | Thermal Expansion | Thermal Conductivity | Resistivity |
|---|---|---|---|---|
| 2.73 Kg/m³ | 655 °C | 23.1 (10 -6 /℃) | 190 W/m.K | 0.034 × 10 -6 Ω.m |
Annealing State
| Brand | Annealing State |
|---|---|
| 1xxx: 1050,1050A,1060,1100 | O,H12,H14,H16,H18,H22,H24,H26,H28,H111 |
| 3xxx: 3003,3004,3005,3105 | |
| 5xxx: 5005,5052,5754,5083,5086,5182,5049,5251,5454 | O,H22,H24,H26,H28,H32,H34,H36,H38,H111 |
| 6xxx: 6061,6082 | T4,T6,T451,T651 |
| 2xxx: 2024 | T3,T351,T4 |
| 7xxx: 7075 | T6,T651 |
Scope of Application
| Aluminum Uses And Application Area | |
| Food Packaging | Beverage can ends,cans,bottle caps,etc. |
| Building | Curtain walls,cladding,suspended ceilings,thermal insulation,venetian blinds,etc. |
| Transportation | Auto parts,passenger car bodies,aviation ships and air cargo containers. |
| Electronic Equipment | Electrical appliances,communication equipment,PCPlate drilling guide,lighting and heat dissipation materials,etc. |
| Consumer Goods | Umbrellas,cooking utensils,sports equipment,etc |
| Other | Military,color coated aluminum plate |
