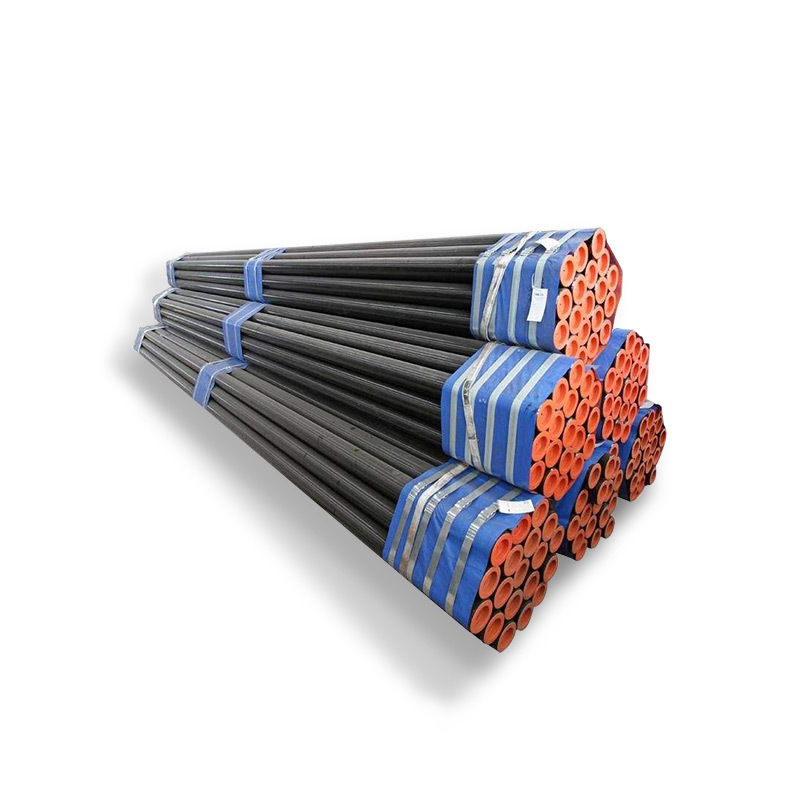

API Spec 5L Steel Pipe
SKU: HC-1137063039386476544
API Spec 5L is an international standard that specifies the manufacturing requirements for two product specification grades (PSL 1 and PSL 2) of seamless and welded steel pipes used in pipeline transportation systems in the oil and gas industry.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
API Spec 5L is an international standard that specifies the manufacturing requirements for two product specification grades (PSL 1 and PSL 2) of seamless and welded steel pipes used in pipeline transportation systems in the oil and gas industry. API-5L welded spiral steel pipe is made of hot-rolled strip or steel plate as raw material. The strip or steel plate is rolled into a round or special-shaped steel pipe by a forming machine, and then the formed steel pipe is butt welded by a high-frequency welding unit. PSL1 and PSL2 pipelines have different levels of quality requirements. This kind of steel pipe has the advantages of high strength, high toughness, corrosion resistance, and easy welding. API Spec 5L steel p ipes are commonly used to manufacture pipeline steel pipes in the oil and gas industry.
Specifications
Product Parameters
| Product Name | API Spec 5L Steel Pipe | |
| Standard | EN / DIN / JIS / ASTM / BS / ASME / AISI etc. | |
| Outer Diameter | Seamless: 1/4"-36" | Welding: 21.3mm-3620mm |
| Round Tube: 1/2"-10" | Square Tube /Rectangular Tube: 15x15mm-400x600mm | |
| Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm - 65mm |
| Length | 3-12 meters,Support customization | |
| Surface Process | Bright,Polished,Black | |
| Other Services | Machining(cnc),Centerless Grinding(cg),Heat Treatment,Annealing,Pickling,Polishing,Rolling,Forging,Cutting,Bending,Small Machining,etc. | |
Chemical Composition
| API Spec 5L PSL 1 | Brand | C | Mn | P | S |
| B | ≤ 0.28 | ≤ 1.20 | ≤ 0.030 | ≤ 0.030 | |
| X42 | ≤ 0.28 | ≤ 1.30 | ≤ 0.030 | ≤ 0.030 | |
| X46 | ≤ 0.28 | ≤ 1.40 | ≤ 0.030 | ≤ 0.030 | |
| X52 | ≤ 0.28 | ≤ 1.40 | ≤ 0.030 | ≤ 0.030 | |
| API Spec 5L PSL 2 | B | ≤ 0.24 | ≤ 1.20 | ≤ 0.025 | ≤ 0.015 |
| X42 | ≤ 0.24 | ≤ 1.30 | ≤ 0.025 | ≤ 0.015 | |
| X46 | ≤ 0.24 | ≤ 1.40 | ≤ 0.025 | ≤ 0.015 | |
| X52 | ≤ 0.24 | ≤ 1.40 | ≤ 0.025 | ≤ 0.015 |
Mechanical Properties
| Standard | Brand | Yield Strength (MPa) | Tensile Strength (MPa) |
|---|---|---|---|
| API Spec 5L PSL 1 | A25 | 172 | 310 |
| A | 207 | 331 | |
| B | 241 | 414 | |
| X42 | 290 | 414 | |
| X46 | 317 | 434 | |
| X52 | 359 | 455 | |
| X56 | 386 | 490 | |
| X60 | 414 | 517 | |
| X65 | 448 | 531 | |
| X70 | 483 | 565 | |
| API Spec 5L PSL 2 | B | 290-496 | 414-758 |
| X42 | 317-524 | 434-758 | |
| X46 | 359-531 | 455-758 | |
| X52 | 386-544 | 490-758 | |
| X56 | 414-565 | 517-758 | |
| X60 | 448-600 | 531-758 | |
| X65 | 483-621 | 565-758 | |
| X70 | 552-690 | 621-827 |
Scope of Application
| Materials No. | European Standard EN 10208-2 | German Standard DIN 17172 | API 5L |
| 1.0457 | L 245NB | StE 240.7 | Gr.B |
| 1.0484 | L 290NB | StE 290.7 | X42 |
| 1.0582 | L 360NB | StE 360.7 | X52 |
| 1.8972 | L 415NB | StE 415.7 | X60 |
| 1.0418 | L 245MB | StE 240.7 TM | Gr.B |
| 1.0429 | L 290MB | StE 290.7 TM | X42 |
| 1.0578 | L 360MB | StE 360.7 TM | X52 |
| 1.8973 | L 415MB | StE 415.7 TM | X60 |
| 1.8975 | L 450MB | StE 445.7 TM | X65 |
| 1.8977 | L 485MB | StE 480.7 TM | X70 |
