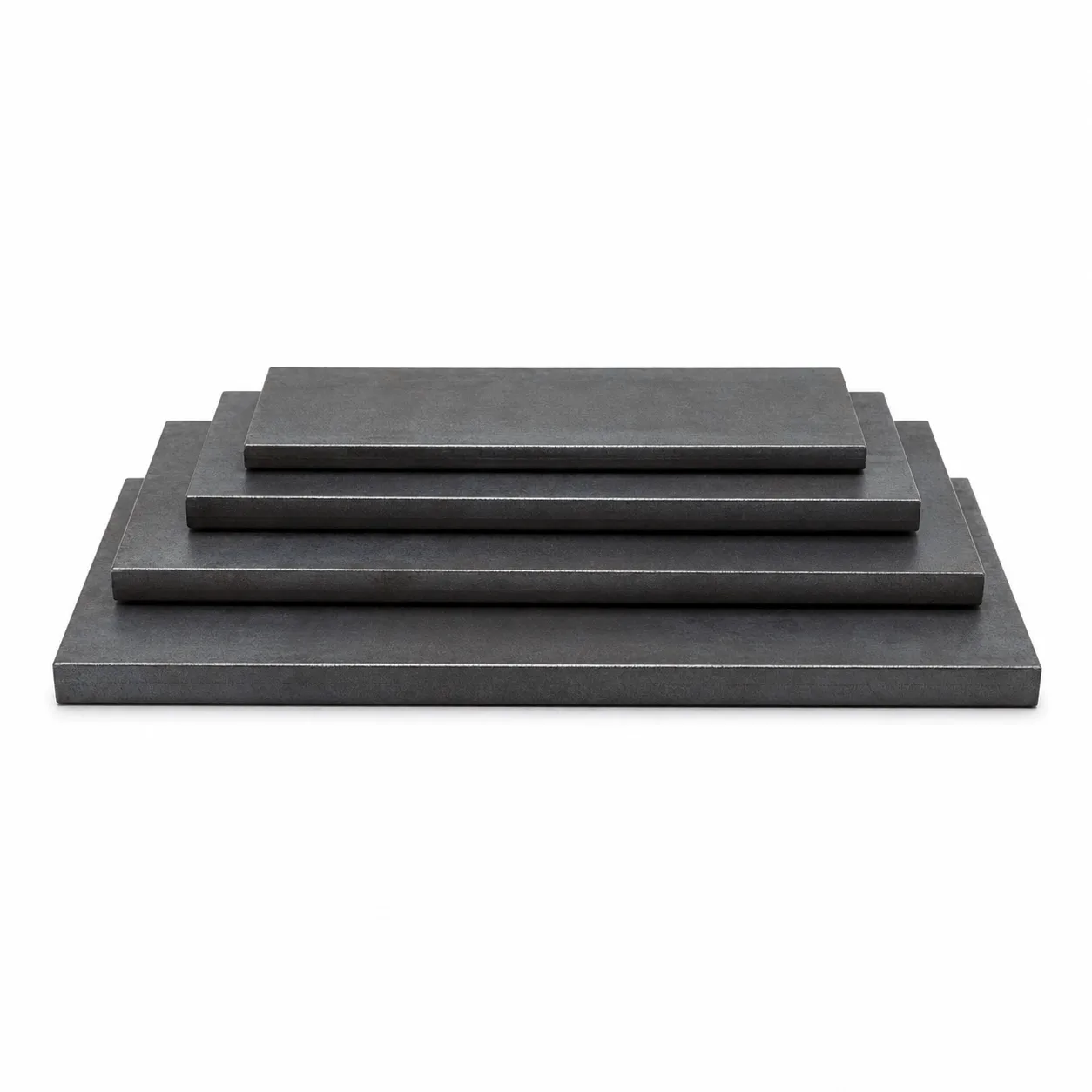

A537 Pressure Vessel Steel Plate
SKU: HC-1134523936993947648
ASTM A537 pressure vessel steel plates are heat treated carbon manganese silicon steel plates used in pressure vessel fabrication. There are 3 grades, which are Grade 1, Grade 2, and Grade 3.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
ASTM A537 pressure vessel steel plates are heat treated carbon manganese silicon steel plates used in pressure vessel fabrication. There are 3 grades, which are Grade 1, Grade 2, and Grade 3. ASTM A537 pressure vessel steel plates , as a high-strength, high-quality steel, is widely used in petroleum, chemical industry, pressure vessels and other fields . The strength of A537 is much higher than that of ordinary steel, and it can maintain excellent stability in high-pressure and high-temperature environments. After special anti-corrosion treatment, A537 steel plate has extremely strong corrosion resistance and can adapt to various harsh environments. Besides, A537 steel is easy to solder, reducing product damage caused by soldering problems.
Specifications
Product Parameters
| Product Name | A537 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling,Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE,etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m,or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling,Annealing,Quenching,Tempered or Standard |
| Surface Process | Ordinary,Wire Drawing,Laminated Film |
Chemical Composition
| Standard | Thickness (Mm) | C | Si | Mn | P | S | Cu | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|---|---|---|
| A537 | ≤ 40 mm | 0.24 | 0.15-0.50 | 0.70-1.35 | 0.035 | 0.035 | 0.35 | 0.25 | 0.25 | 0.08 |
| > 40 mm | 1.00-1.60 |
Mechanical Properties
| A537 | Thickness mm | Yield Mpa | Tensile Strength Mpa | Elongation % |
|---|---|---|---|---|
| Level 1 | ≤ 65 | 345 | 485-620 | 22 |
| 65-100 | 310 | 450-585 | - | |
| 100-150 | - | - | 18 | |
| Level 2 | ≤ 65 | 415 | 550-690 | 22 |
| 65-100 | 380 | 515-655 | 20 | |
| 100-150 | 315 | 485-620 | - | |
| Level 3 | ≤ 65 | 380 | 550-690 | 22 |
| 66-100 | 345 | 515-655 | 20 | |
| 101-150 | 275 | 485-620 | - |
Physical Performance
| Physical Performance | Metric | Imperial |
|---|---|---|
| Density | 7.80 g/cc | 0.282 lb/in³ |
