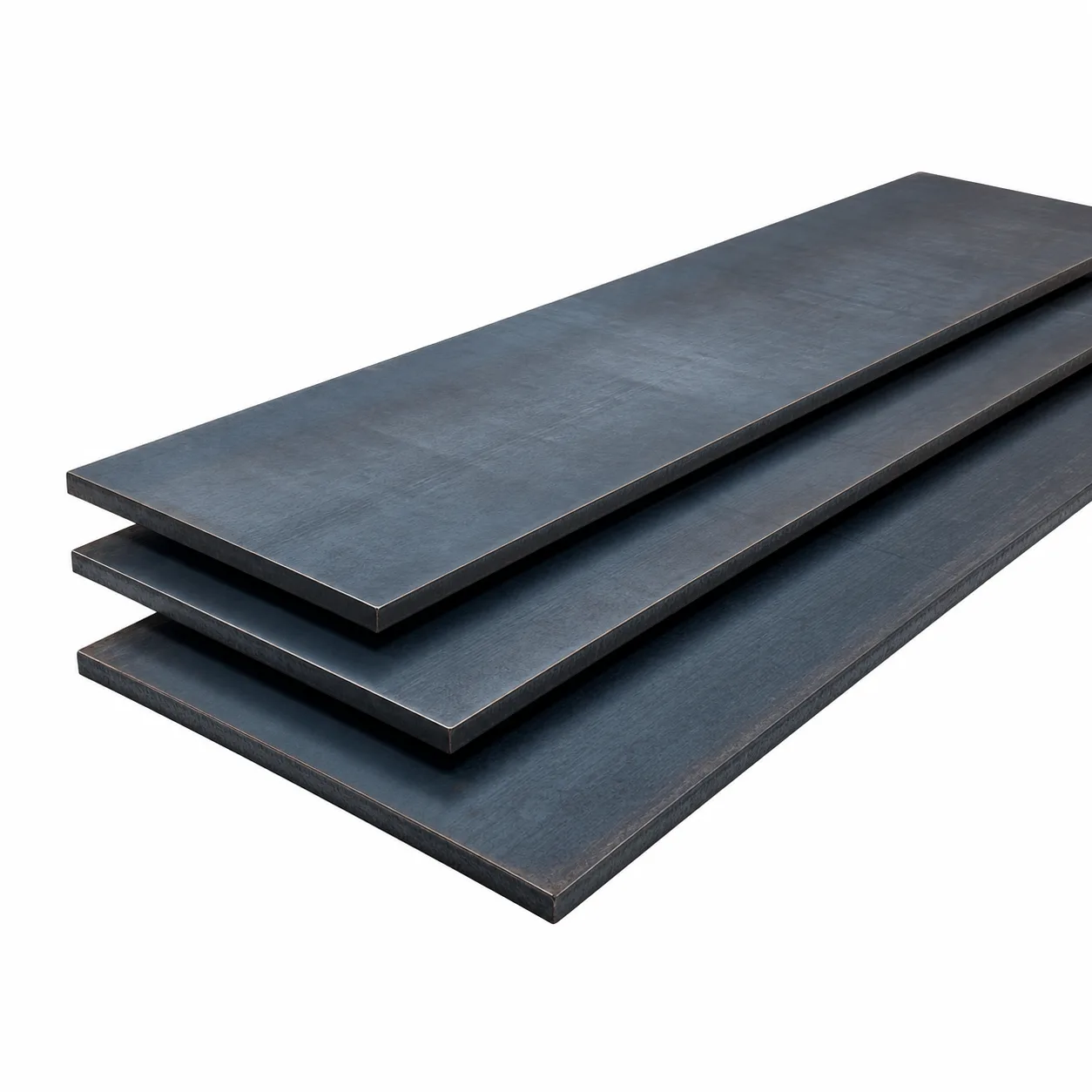

API Spec 5L Pipeline Steel Coil Steel Plate
SKU: HC-1134531022427500544
API Spec 5L is an international standard that specifies the manufacturing requirements for two product specification grades (PSL 1 and PSL 2) of seamless and welded steel pipes used in pipeline transportation systems in the oil and gas industry.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
API Spec 5L is an international standard that specifies the manufacturing requirements for two product specification grades (PSL 1 and PSL 2) of seamless and welded steel pipes used in pipeline transportation systems in the oil and gas industry. API SPEC 5L-2011 is compiled and published by the American Petroleum Institute and is used throughout the world. The main materials of this pipe are L245, L290, L360, L415, L480, GR.B, X42, X46, X56, X65, X70, X80, X100 and other steel grades. PSL refers to the product specification level established for the API 5L standard. Piping specification classes are classified into PSL1 and PSL2. For pipeline standards, PSL1 and PSL2 pipelines have different levels of quality requirements. API Spec 5L pipeline steel plate is commonly used to manufacture pipeline steel pipes that extract oil, steam, and water on the ground in the oil and gas industry.
Specifications
Product Parameters
| Product Name | API Spec 5L Pipeline Steel Coil Steel Plate |
| Production Process | Hot Rolling,Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE,etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m,or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling,Annealing,Quenching,Tempered or Standard |
| Surface Process | Ordinary,Wire Drawing,Laminated Film |
Chemical Composition
| API Spec 5L PSL 1 | Brand | C | Mn | P | S |
| B | ≤ 0.28 | ≤ 1.20 | ≤ 0.030 | ≤ 0.030 | |
| X42 | ≤ 0.28 | ≤ 1.30 | ≤ 0.030 | ≤ 0.030 | |
| X46 | ≤ 0.28 | ≤ 1.40 | ≤ 0.030 | ≤ 0.030 | |
| X52 | ≤ 0.28 | ≤ 1.40 | ≤ 0.030 | ≤ 0.030 | |
| API Spec 5L PSL 2 | B | ≤ 0.24 | ≤ 1.20 | ≤ 0.025 | ≤ 0.015 |
| X42 | ≤ 0.24 | ≤ 1.30 | ≤ 0.025 | ≤ 0.015 | |
| X46 | ≤ 0.24 | ≤ 1.40 | ≤ 0.025 | ≤ 0.015 | |
| X52 | ≤ 0.24 | ≤ 1.40 | ≤ 0.025 | ≤ 0.015 |
Mechanical Properties
| Standard | Brand | Yield Strength (MPa) | Tensile Strength (MPa) |
|---|---|---|---|
| API Spec 5L PSL 1 | A25 | 172 | 310 |
| A | 207 | 331 | |
| B | 241 | 414 | |
| X42 | 290 | 414 | |
| X46 | 317 | 434 | |
| X52 | 359 | 455 | |
| X56 | 386 | 490 | |
| X60 | 414 | 517 | |
| X65 | 448 | 531 | |
| X70 | 483 | 565 | |
| API Spec 5L PSL 2 | B | 290-496 | 414-758 |
| X42 | 317-524 | 434-758 | |
| X46 | 359-531 | 455-758 | |
| X52 | 386-544 | 490-758 | |
| X56 | 414-565 | 517-758 | |
| X60 | 448-600 | 531-758 | |
| X65 | 483-621 | 565-758 | |
| X70 | 552-690 | 621-827 |
Equivalent Material
| Materials No. | European Standard EN 10208-2 | German Standard DIN 17172 | API 5L |
| 1.0457 | L 245 NB | StE 240.7 | Gr.B |
| 1.0484 | L 290 NB | StE 290.7 | X42 |
| 1.0582 | L 360 NB | StE 360.7 | X52 |
| 1.8972 | L 415 NB | StE 415.7 | X60 |
| 1.0418 | L 245 MB | StE 240.7 TM | Gr.B |
| 1.0429 | L 290 MB | StE 290.7 TM | X42 |
| 1.0578 | L 360 MB | StE 360.7 TM | X52 |
| 1.8973 | L 415 MB | StE 415.7 TM | X60 |
| 1.8975 | L 450 MB | StE 445.7 TM | X65 |
| 1.8977 | L 485 MB | StE 480.7 TM | X70 |
