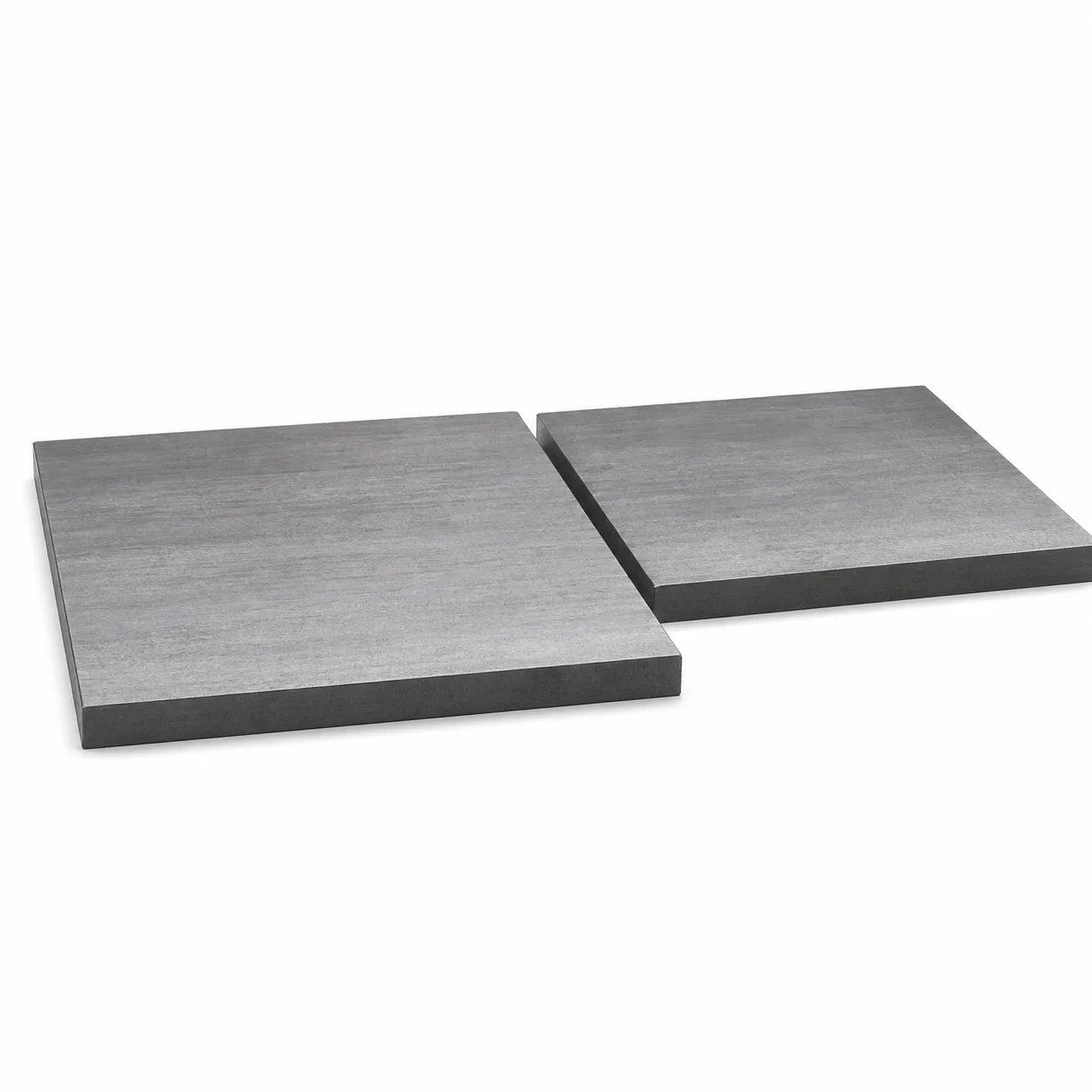

DIN 17155 Pressure Vessel Steel Plate
SKU: HC-1134527101439148032
DIN 17155 pressure vessel steel plate is steel for boilers and pressure vessels. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid delivery pipes.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
DIN 17155 pressure vessel steel plate is steel for boilers and pressure vessels. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid delivery pipes. DIN 17155 pressure vessel plate not only has very high strength but also has very good toughness, wear resistance, fatigue resistance, impact resistance, easy welding processability and cold forming performance. DIN 17155 pressure vessel steel plate is widely used in gas, petrochemical and other industries, especially suitable for manufacturing boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic Bracket etc.
Specifications
Product Parameters
| Product Name | DIN 17155 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling,Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE,etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m,or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling,Annealing,Quenching,Tempered or Standard |
| Surface Process | Ordinary,Wire Drawing,Laminated Film |
Chemical Composition
| DIN 17155 | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|---|
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.90 | 0.035 | 0.03 | - | 0.25 | 0.3 | 0.3 | 0.25-0.35 |
| 13CrMo44 | 0.08-0.18 | 0.10-0.35 | 0.40-0.10 | 0.035 | 0.03 | - | 0.70-1.10 | 0.3 | - | 0.4-0.6 |
| 17Mn4 | 0.14-0.20 | 0.4 | 0.90-1.40 | 0.035 | 0.03 | 0.02 | 0.25 | 0.3 | 0.3 | 0.1 |
| 10CrMo9-10 | 0.06-0.15 | 0.5 | 0.40-0.70 | 0.035 | 0.03 | - | 2.00-2.50 | 0.3 | - | 0.9-1.0 |
| 19Mn6 | 0.2 | 0.5 | 0.90-1.70 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 |
| HI | 0.16 | 0.35 | 0.40/1.20 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 |
| HII | 0.2 | 0.35 | 0.50-1.30 | 0.035 | 0.03 | 0.02 | 0.25 | 0.3 | 0.3 | 0.1 |
Equivalent Material
| DIN 17155 | Material No. | EN 10028-2 | UNI 5869 | BS 1501 | A 36087 | ASTM | JIS G3115 |
|---|---|---|---|---|---|---|---|
| HI | 1.0345 | P235GH | Fe360 - 1KW | 161 Gr.360 / 164 Gr.360 | A37RCI | A285 Gr.C / A414 Gr.C / A516 Gr.55 | SPV 24 |
| HII | 1.0425 | P265GH | Fe410 - 1KW | 161 Gr.400 / 164 Gr.400 / 224 Gr.400 | A42RCI | A414 Gr.E / A516 Gr.60 | - |
| 17Mn4 | 1.0481 | P295GH | Fe460 - 1KW | 224 Gr.490 | A47RCI | A414 Gr.F / A516 Gr.65 | SPV 32 |
| 19Mn6 | 1.0473 | P355GH | Fe510 - 1KW | - | A52RCI | A414 Gr.G | SPV 36 |
| 15Mo3 | 1.5415 | 16Mo3 | 15Mo3 | 1503 - 243 B | 16Mo3 | A204 Gr.B | - |
| 13CrMo44 | 1.7335 | 13CrMo4-5 | 14CrMo4.5 | 620 Gr.27 | 14CrMo4.5 | A387 Gr.12 | - |
| 10CrMo910 | 1.7380 | 10CrMo9-10 | - | 622 Gr.31 | - | A387 Gr.22 | - |
