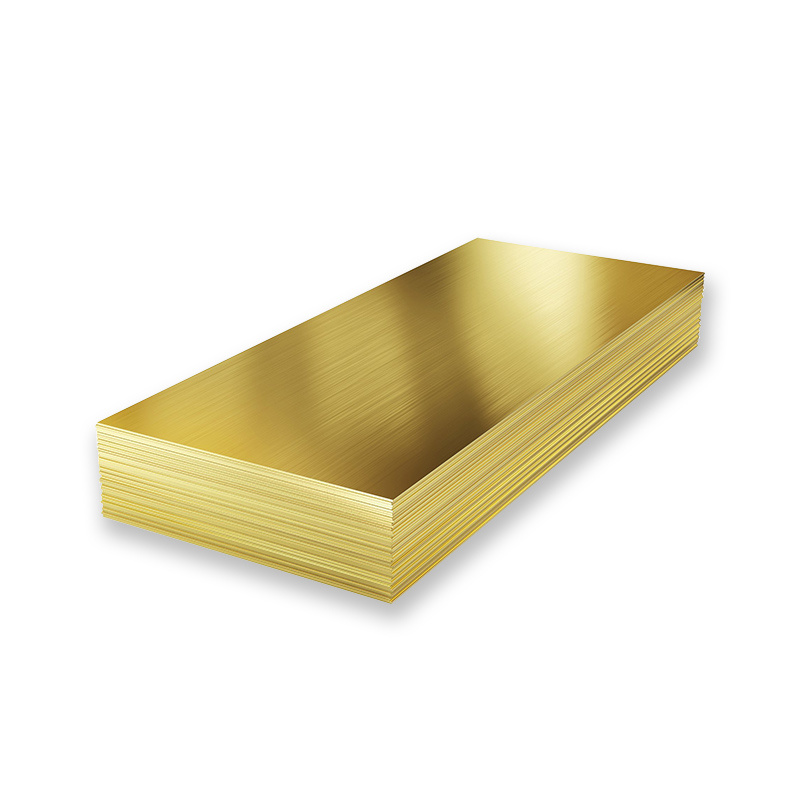

C27200 Brass Plate
SKU: HC-1140703150572384256
C27200 copper plate is a high-quality copper material that is widely used in various fields. It is made of high-purity copper and zinc alloy with excellent electrical conductivity and corrosion resistance.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
C27200 copper plate is a high-quality copper material that is widely used in various fields. It is made of high-purity copper and zinc alloy with excellent electrical conductivity and corrosion resistance. C27200 copper plate has a chemical composition includ ing about 63% copper and 37% zinc. To begin with, C27200 copper has excellent corrosion resistance and is resistant to most common environments such as water, gases and non-oxidizing acids. Besides, C27200 copper plate has higher strength and hardness than some other pure copper alloys, making it more suitable in certain applications that require greater strength. Aside from excellent conductivity properties, C27200 alloy can be easily cold or hot worked into a variety of shapes and sizes to facilitate the manufacture of a variety of parts and assemblies. C27200 copper plate has a wide range of application prospects. In the future, with the continuous development of material science and the increase in industrial demand, the market demand for C27200 copper plate will also continue to expand.
Specifications
Product Parameters
| Thickness | 0.1-300mm or customized | Length | 100-12000mm or customized |
| Width | 10-3000mm or customized | Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. |
| Brand | C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930，C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70620,C71000,C71500,C71520,C71640,C72200，T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,ect. | ||
| Surface | Grinding,Polishing,Brightening,Oiling,Hair Thread,Brush,Mirror,Sandblasting or Processing as Required | ||
| Certification | ISO,SGS,BV,etc. | Payment Method | FOB,CRF,CIF,EXW Acceptable,etc. |
| Port of Loading | Any Port in China | Delivery Time | Received 30% after deposit 7-15 working days |
Chemical Composition
| Copper With: | Zinc Zn: | Lead Pb: | Iron Fe: | Impurity: | Nickel Ni: |
|---|---|---|---|---|---|
| 62.0-65.0 | Allowance | 0.08 | 0.15 | 0.5 | 0.5 |
Mechanical Properties
| Tensile Strength Kb (MPa): | Elongation D10 (%): | Elongation Δ5 (%): |
| ≥370 | ≥15 | ≥18 |
Scope of Application
| Uses and Applications of Copper | |
| Power Industry | Power transmission such as line cables,transformers,switches,plug components and connectors,etc.; motor manufacturing such as stator,rotor,shaft head and hollow wire,etc.; communication cables and residential electrical lines also need to use a large number of copper wires. |
| Electronic Industry | Electric vacuum devices such as high-frequency and ultra-high-frequency emission tubes,catheters,magnetrons,etc.,they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuit Copper replaces aluminum in silicon chips for interconnect lines and lead frames. |
| Energy and Petrochemical Industry | The main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass,bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys,used in large quantities to manufacture contact corrosion Various media containers,piping systems,filters,pumps and valves,various evaporators,heat exchangers and condensers,etc. |
| Transportation Industry | In the shipbuilding industry,copper alloys include aluminum bronze,manganese bronze,aluminum brass,gunmetal (tin zinc bronze),white copper and nickel copper alloy (Monel alloy),etc. are all standard materials for shipbuilding. In warships and merchant ships,copper and copper alloys are generally used as aluminum bronze propeller,Bolts,condenser tubes,rivets,copper coated paint,etc. In the automotive industry,copper and copper alloys are mainly used in radiators,brake system pipelines,hydraulic devices,gears,bearings,power distribution and power systems,brake friction plates,washers and various joints,Accessories and trims,etc. The motors,rectifiers and control,braking,electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition,the electrification of railways requires a large amount of copper and copper alloys.in the aircraft Copper for wiring,hydraulic,cooling and pneumatic systems,aluminum bronze tubing for bearing retainers and landing gear bearings,and diamagnetic copper alloy for navigation instruments. |
| Mechanical and Metallurgical Industries | In addition to a large number of copper used in motors,circuits,hydraulic systems,pneumatic systems and control systems in mechanical engineering,various transmission parts and fixing parts,such as cylinder liners,connectors,fasteners,gears,twisting parts,etc.,all Need to reduce wear and lubrication with copper or copper alloy. The key component in continuous casting technology of metallurgical equipment-crystallizer,mostly made of high strength and high thermal conductivity copper alloy such as chromium copper,silver copper,etc.,and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe,and various induction heating The induction coils are all made of copper tubes or special-shaped copper tubes,which are cooled by water. |
| Light Industry | Copper and copper alloy can be used in the manufacture of air conditioner heat exchanger,watch movement,paper machine mesh,roller,printing copper plate,fermentation tank lining,distillation pot,building decoration components,etc. |
| Emerging Industries and High-tech Fields | Copper is also used in emerging industries and high-tech fields,such as superconducting alloy jackets,ultra-low temperature medium containers and pipelines,rocket engine cooling village,high-energy accelerator magnet windings. |
