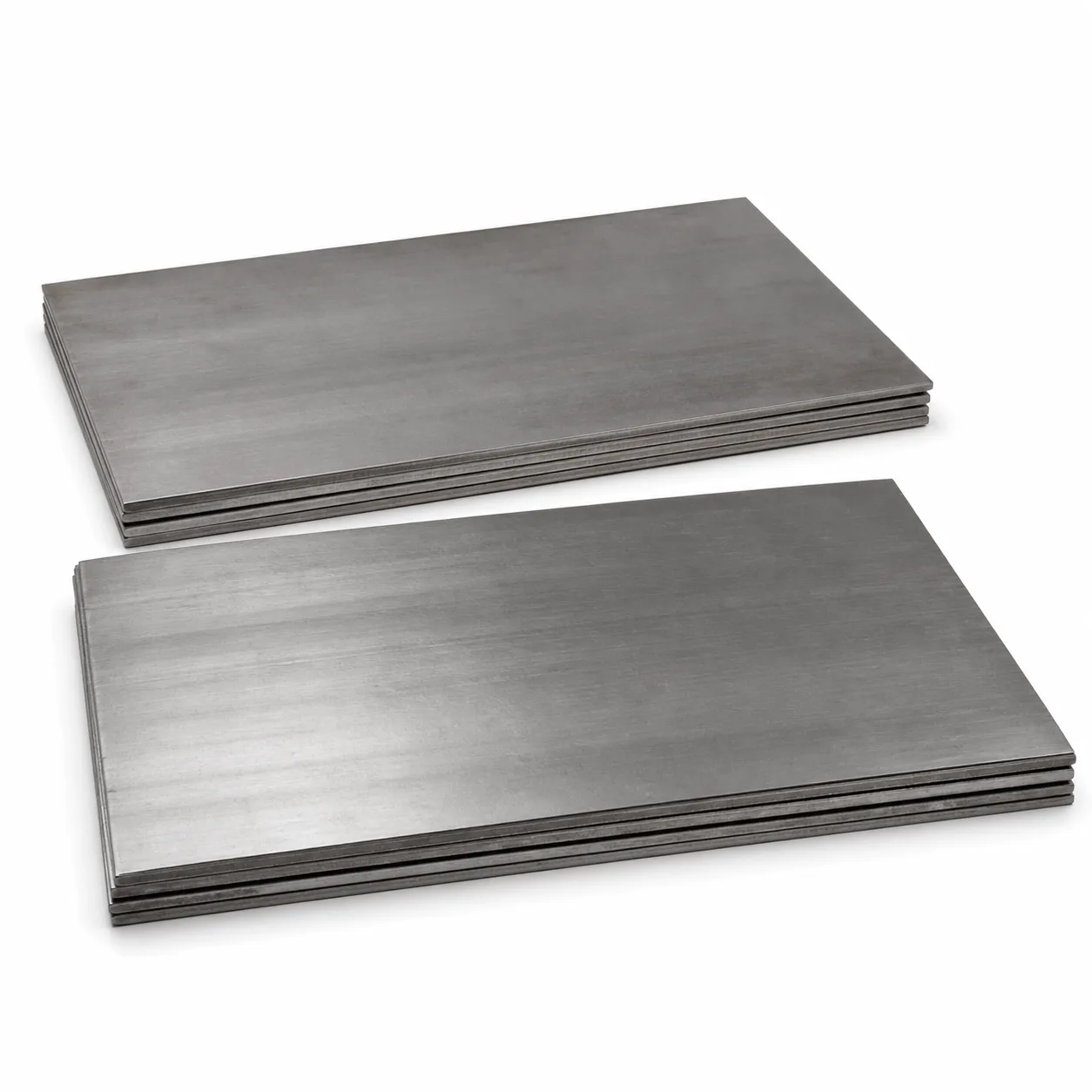

Docol 1400M Martensitic Steel (MS)
SKU: HC-1141747022600028160
Docol 1400M: Docol1400M martensitic steel contributes to improved crashworthiness and ensures lightweight design and cost-effective production in the automotive industry. Docol is one of the cold-rolled high-strength steels on the market and has become a material used in applications such as side anti-collision beams, bumpers and structural parts in the automotive industry.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
Docol 1400M: Docol1400M martensitic steel contributes to improved crashworthiness and ensures lightweight design and cost-effective production in the automotive industry. Docol is one of the cold-rolled high-strength steels on the market and has become a material used in applications such as side anti-collision beams, bumpers and structural parts in the automotive industry. Docol 1400M: Docol 1400M martensitic steel contributes to improved crashworthiness and guarantees lightweight design and cost-effective production in the automotive industry. Docol is one of the cold-rolled high-strength steels on the market and has become a material used in applications such as side anti-collision beams, bumpers and structural parts in the automotive industry.
Specifications
Mechanical Properties
| Steel Grade | Standard | Plating | Test Direction | Yield Strength R p0.2 (MPa) | Tensile Strength R m (MPa) | Extension Rate A 80 (min %) | BH2 (Min MPa) | 90 ° Bend the Most Small Bend Inner Diameter |
|---|---|---|---|---|---|---|---|---|
| Docol CR1150Y 1400T-MS | SSAB | UC,eg. | T | 150- | 1400-1600 | 3 | 30 | 4.0.5xt |
Chemical Composition
| C (max %) | Si (max %) | Mn (max %) | P (max %) | S (max %) | Al (min %) | Nb Title (max %) |
|---|---|---|---|---|---|---|
| 0.20 | 0.40 | 1.60 | 0.020 | 0.010 | 0.015 | 0.10 |
Plating
| Plating Type | Plating Grade | Standard | Single-sided coating quality,single-point test (g/m 2) | Single side thickness,for reference only (μm) |
|---|---|---|---|---|
| EG | ZE25/25 | EN 10152 | 12- | 1.7- |
| EG | ZE25/50 | EN 10152 | 29- | 4.1- |
| EG | ZE25/75 | EN 10152 | 47- | 6.6- |
| EG | ZE25/100 | EN 10152 | 65- | 9.1- |
