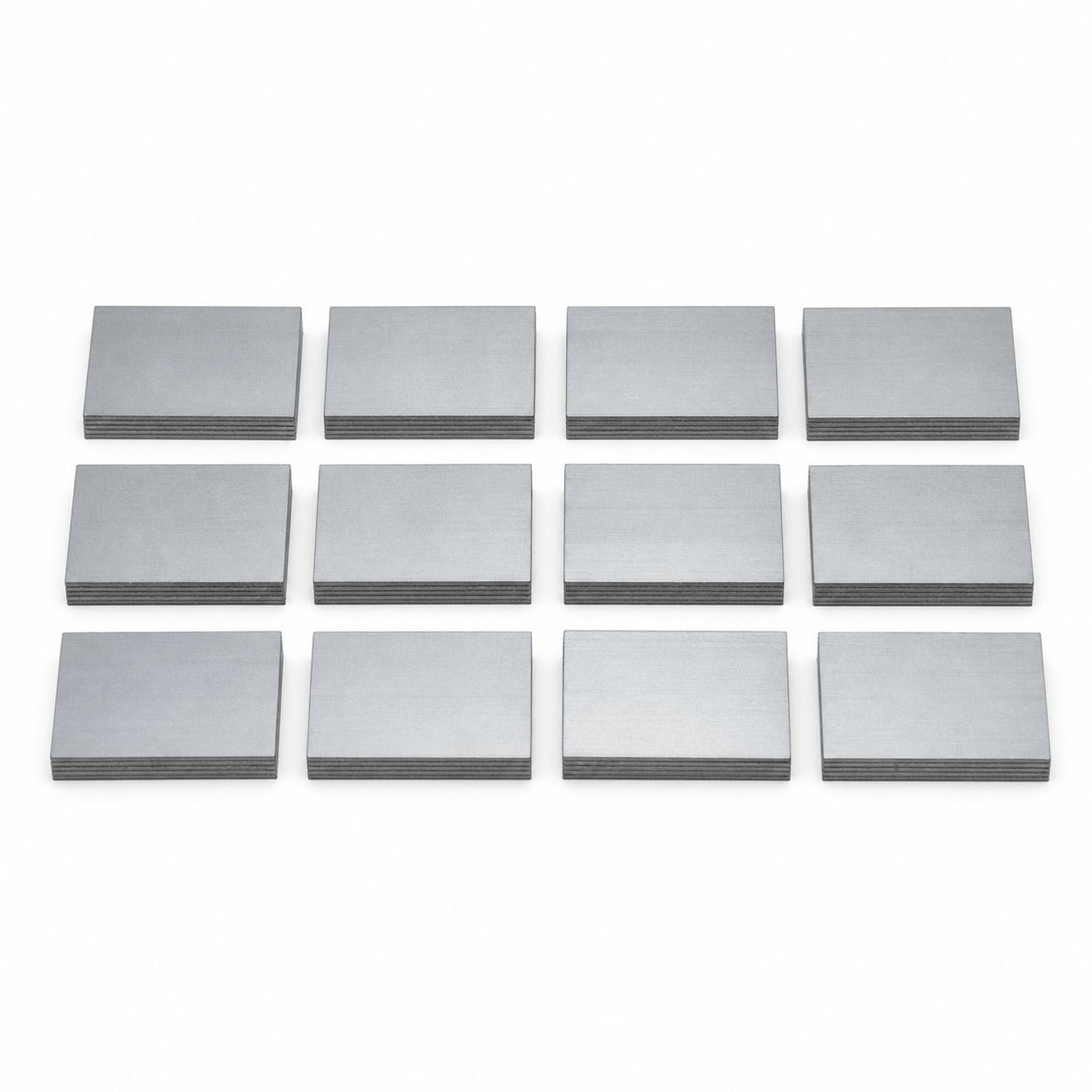

Cold Rolled Non-oriented Silicon Steel For Magnetic Switch
SKU: HC-1141309059817644032
Non-oriented silicon steel is used in rotating equipment such as motors. It is divided into iron core and rotor. In order to be easily magnetized during the rotation process, electrical energy is converted into mechanical energy. Therefore, it is required to be easily magnetized at every angle in the rotation process, so the grain orientation distribution in the non-oriented silicon steel is required to be uniform.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
Non-oriented silicon steel is used in rotating equipment such as motors. It is divided into iron core and rotor. In order to be easily magnetized during the rotation process, electrical energy is converted into mechanical energy. Therefore, it is required to be easily magnetized at every angle in the rotation process, so the grain orientation distribution in the non-oriented silicon steel is required to be uniform.
Specifications
Product Parameters
| Category | Silicon Content/% | Nominal Thickness/Mm | Lord To Use Way | ||
| Hot Rolled Silicon Steel (No Orientation) | Hot rolled low silicon steel(Motor Steel) | 1.0~2.5 | 0.5 | Household motors and micromotors | |
| Hot rolled high silicon steel(Transformer steel) | 3.0~4.5 | 0.35,0.50 | Transformer | ||
| Cold Rolled Electrical Steel | Cold rolled non-oriented electrical steel(Motor Steel) | Low carbon electrical steel | ≤ 0.5 | 0.50,0.65 | Small transformers and ballasts for household motors,micromotors |
| Silicon steel | >0.5~3.5 | 0.35,0.50 | Medium and large motors,generators and transformers | ||
| Cold rolled grain oriented silicon steel(Transformer steel) | Ordinary oriented silicon steel | 2.9~3.3 | 0.18,0.23,0.27 0.30,0.35 | Large,medium and small transformers and ballasts | |
| High magnetic induction oriented silicon steel | |||||
| Special Purpose Silicon Steel | Cold rolled grain oriented silicon steel strip | 2.9~3.3 | 0.03,0.05,0.10 | Pulse transformer,magnetic amplifier,high frequency transformer and electric welding machine | |
| Cold rolled non-oriented silicon steel strip | 3.0 | 0.15,0.20 | High-frequency motors and generators | ||
| Cold rolled non-oriented silicon steel for magnetic switch | 3.0 | 0.70 | Relays and magnetic switches | ||
| Cold rolled high silicon steel | 6.5 | 0.1~0.5 | High-frequency motors,transformers and magnetic shielding | ||
