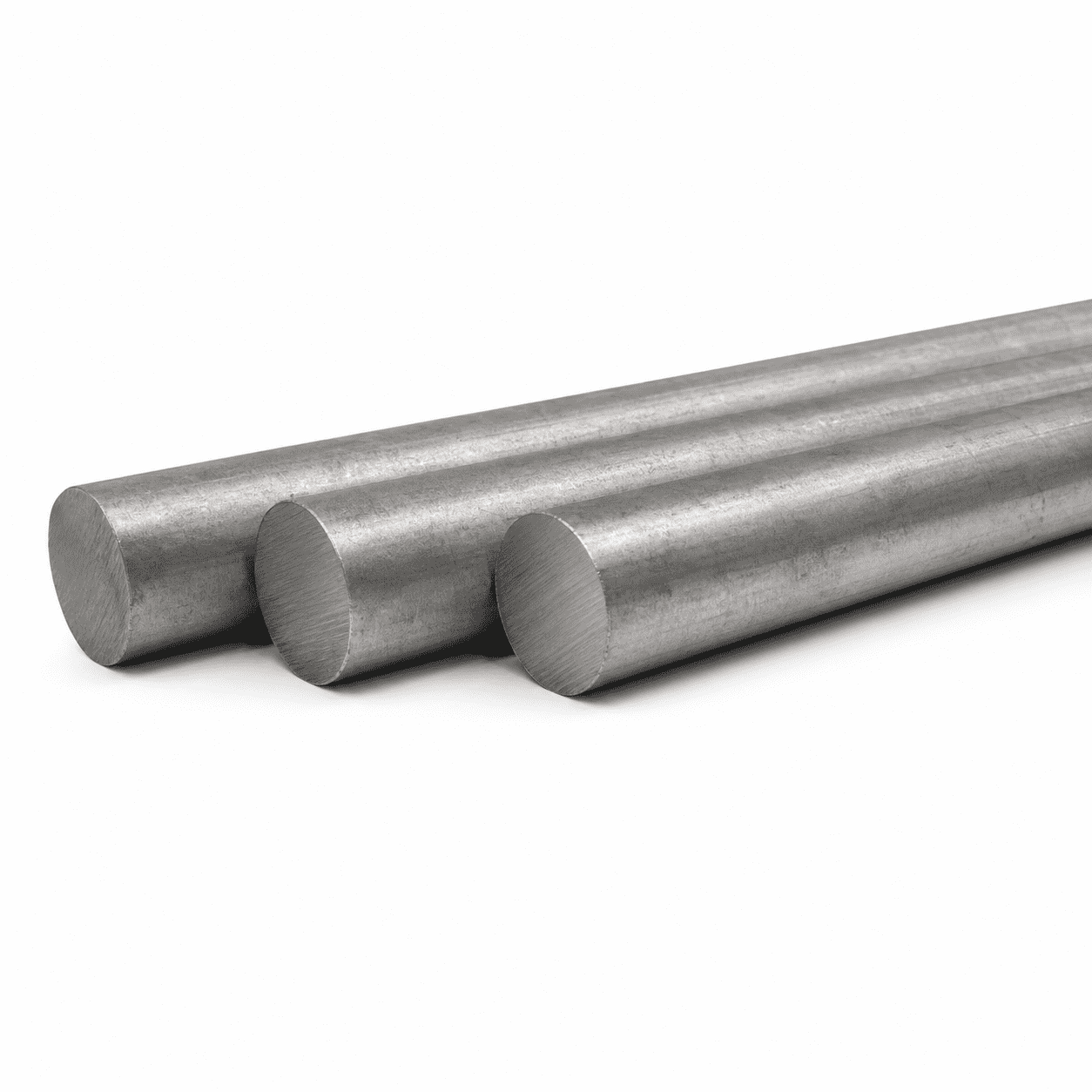

2205 Duplex Stainless Steel Bar
SKU: HC-1131649223278034944
2205 Duplex stainless steel alloy bar is made of a duplex stainless steel composed of 22% chromium, 2.5% molybdenum and 4.5% nickel nitrogen alloy, which accounts for its high strength, good impact toughness and good overall and local resistance to stress corrosion.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
2205 Duplex stainless steel alloy bar is made of a duplex stainless steel composed of 22% chromium, 2.5% molybdenum and 4.5% nickel nitrogen alloy, which accounts for its high strength, good impact toughness and good overall and local resistance to stress corrosion. 2205 Duplex stainless steel bars have more than twice of yield strength than ordinary austenitic stainless steel, and it has enough plastic toughness for molding. Moreover, it has good local corrosion resistance, and compared with austenitic stainless steel with similar alloy content, its wear corrosion resistance and fatigue corrosion performance are better than austenitic stainless steel. Whether under dynamic load or static load conditions, 2205 duplex stainless steel bars have a higher energy absorption capacity than austenitic stainless steel, which is why they have obvious advantages for structural parts to cope with emergencies such as collisions, explosions, etc..
Specifications
Product Parameters
| Product Name | 2205 Duplex Stainless Steel Bar | |
| Type | Steel Bar | |
| Outer Diameter | Round Bar | 4mm-500mm |
| Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
| Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
| Flat Steel | 1/2 "to 10",Thickness: 2mm-150mm,Can provide customized | |
| Length | 1-6 meters,Length can be customized | |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. | |
| Surface | Black,Bright Polished,Rough Turning,Mattness Surface Treatment,No. 4. BA,etc. | |
| Scope of Application | Stainless steel bars are used in a variety of industries such as shipbuilding,Defense,Automotive,Textiles,Paper and pulp,Manufacturing,Cement,Heavy earthmoving equipment and construction,etc. | |
Chemical Composition
| C | Si | Mn | Cr | Ni | Mo | S | P |
|---|---|---|---|---|---|---|---|
| ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 21.0～23.0 | 4.5～6.5 | 2.5～3.5 | ≤ 0.02 | ≤ 0.03 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥ 620 | ≥ 450 | ≥ 25 | ≤ 293HB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10 -6 /°C) | Coefficient of Thermal Conductivity(W/m * K) | Resistivity(ΜΩ. cm) |
|---|---|---|---|---|
| 7.88 | 190 | 13.7 | 19.0 | 80 |
