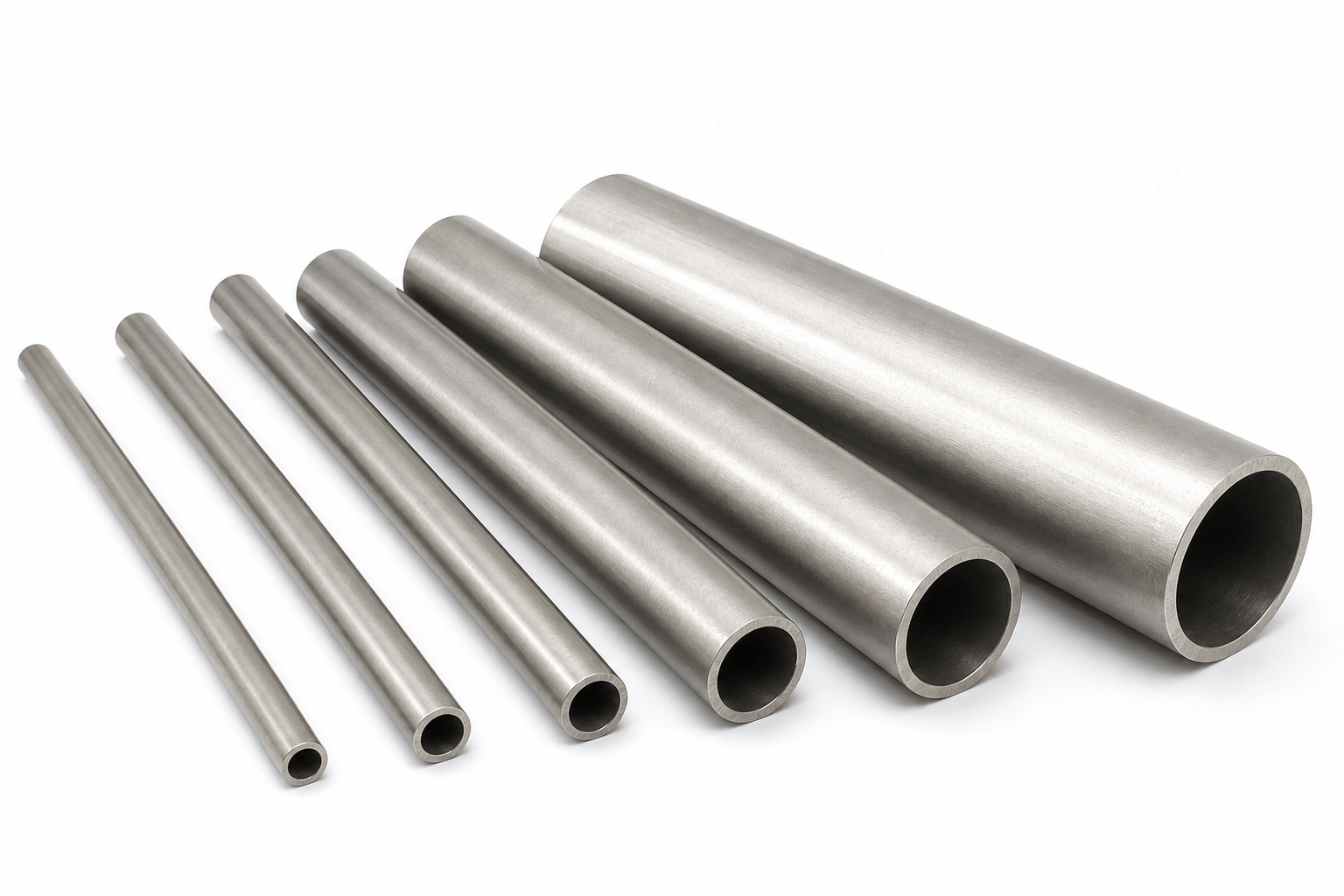

254SMO Stainless Steel Pipe
SKU: HC-1131511507656589312
254SMO stainless steel has a precisely proportioned and optimized chemical elements, giving it unbeatable corrosion resistance, high temperature strength and processing performance. So it has been widely adopted in petroleum, chemical industry, marine engineering and other fields.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
254SMO stainless steel has a precisely proportioned and optimized chemical elements, giving it unbeatable corrosion resistance, high temperature strength and processing performance. So it has been widely adopted in petroleum, chemical industry, marine engineering and other fields. 254SMO is a highly corrosion-resistant austenitic stainless steel, mainly used in environments of high-concentration chloride ion and highly corrosive media, such as seawater, salt water, wet chlorine, acetic acid, formic acid, acetic acid, hydrochloric acid, hypochlorous acid, sulfuric acid, nitric acid, etc.. On the other hand, it also possesses good processing performance and welding performance. Besides, it is very resistant to pitting and crevice corrosion as a result of its high content of chromium and molybdenum. As this special stainless steel is a high-alloy material, the manufacturing process is quite complex. Generally, only traditional processes are adopted to manufacture this special stainless steel, such as pouring, forging, rolling, etc.
Specifications
Product Parameters
| Product Name | 254SMO Stainless Steel Pipe | |
| Type | Steel Pipe | |
| Outer diameter | Round Tube | 4mm-200mm |
| Square Tube | 10*10mm-100*100mm | |
| Rectangular Tube | 10*20mm-50*100mm | |
| Wall Thickness | 0.6mm-6.0mm | |
| Length | 1-6 meters,Length can be customized | |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. | |
| Surface | Black,Bright Polished,Rough Turning,Matt Surface Treatment,No. 4. BA,etc. | |
| Scope of Application | Common applications for stainless steel pipes include food processing,Textile operations,Breweries,Water treatment plants,Oil and gas processing,Fertilizers and pesticides,Chemical applications,Construction,Pharmaceuticals,Auto parts,etc. | |
| Certificate | ISO,SGS,BV,etc. | |
| Production Technology | Hot Rolling,Cold Rolling | |
| Edge Processing | Edging,Trimming | |
Chemical Composition
| C | Si | Mn | Cr | Ni | Mo | S | P |
|---|---|---|---|---|---|---|---|
| ≤ 0.02 | ≤ 0.8 | ≤1.0 | 19.5~20.5 | 17.5~18.5 | 6.0~6.5 | ≤ 0.01 | ≤ 0.03 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥ 680 | ≥ 300 | ≥ 45 | ≤ 180HRB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10 -6 /°C) | Coefficient of Thermal Conductivity(W/m * K) | Resistivity(ΜΩ. cm) |
|---|---|---|---|---|
| 8.0 | 195 | 16.0 | 14.0 | 85 |
