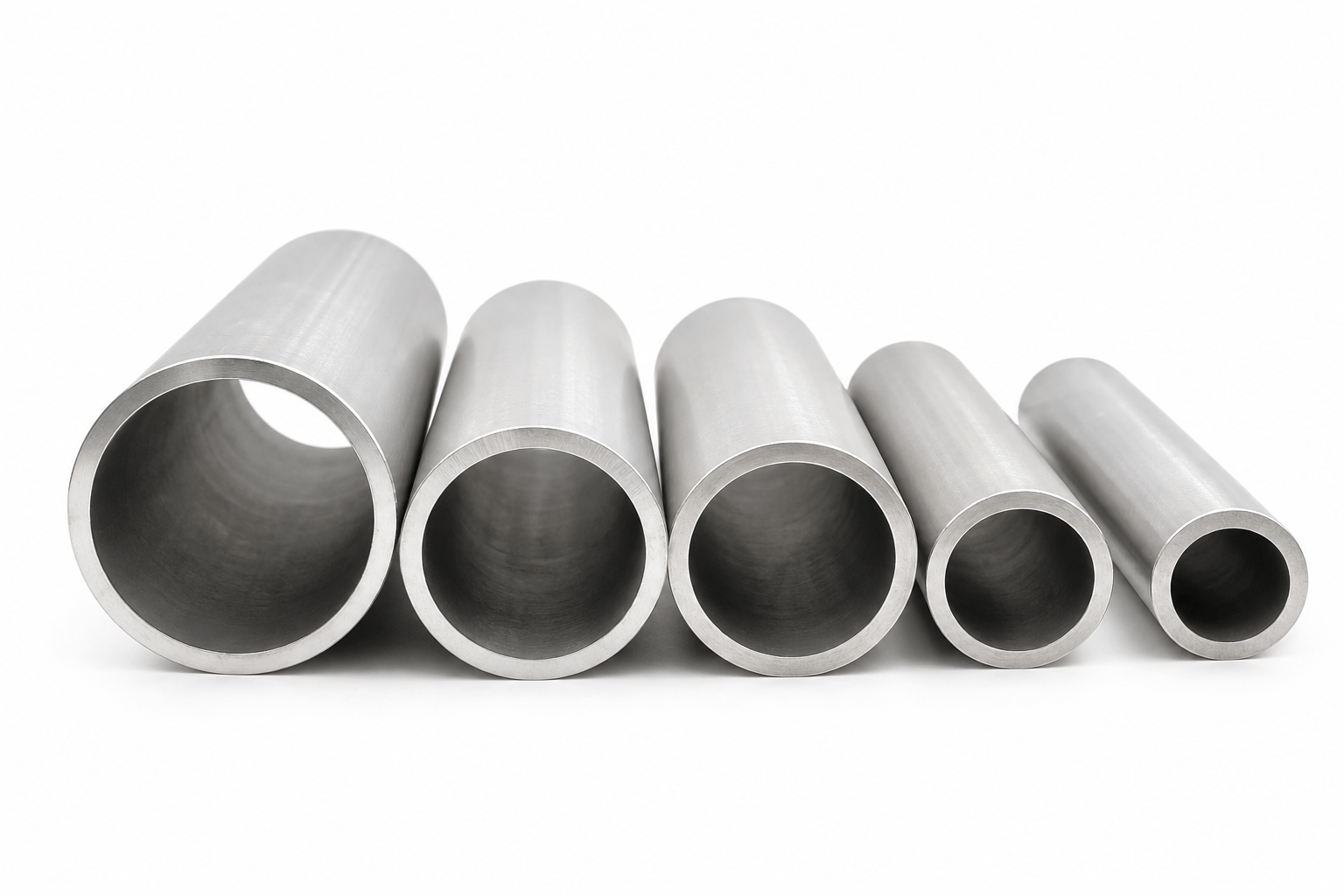

316L Stainless Steel Pipe

SKU: HC-1131269466259406848

316L stainless steel has a lower proportion of carbon in its composition, the amount of carbon cannot go over 0.03%. This lowers the chance of carbon precipitation, making it an ideal option for welding to ensure maximum corrosion resistance.

Testing & Certification

Key Features

  • Third-Party Inspection Support
  • Sufficient Inventory Supply
  • International Standard Certification
  • Custom Processing Service

Contact Us

Scan to chatWhatsApp QR Code

Product Description

316L stainless steel has a lower proportion of carbon in its composition, the amount of carbon cannot go over 0.03%. This lowers the chance of carbon precipitation, making it an ideal option for welding to ensure maximum corrosion resistance. 3 16 L stainless steel pipe has a lower carbon content than 3 16 stainless steel pipe and is used whe n welding is neede d. The lower carbon content greatly reduces the precipitation of carbides in the heat-affected zone close to the weld, and the precipitation of carbides is strongly associated with intergranular corrosion of stainless steel in some environments. Basically, there is no need to anneal weld joints prior to using the completed metal form. 316L stainless steel pipe is the second most prevalent stainless steel after 304, and it has better corrosion resistance than 304. High temperature resistance is also better, up to 1000 degrees. 316L stainless steel plate is a universal stainless steel material, with better rust resistance than 200 series stainless steel material. 316L stainless steel pipe is widely used in the chemical industry because of its excellent corrosion resistance.

Specifications

Product Parameters

Product Name316L Stainless Steel Pipe
TypeSteel Pipe
Outer diameterRound Tube4mm-200mm
Square Tube10*10mm-100*100mm
Rectangular Tube10*20mm-50*100mm
Wall Thickness0.6mm-6.0mm
Length1-6 meters,Length can be customized
StandardASTM,AISI,JIS,GB,DIN,EN,etc.
SurfaceBlack,Bright Polished,Rough Turning,Matt Surface Treatment,No. 4. BA,etc.
Scope of ApplicationCommon applications for stainless steel pipes include food processing,Textile operations,Breweries,Water treatment plants,Oil and gas processing,Fertilizers and pesticides,Chemical applications,Construction,Pharmaceuticals,Auto parts,etc.
CertificateISO,SGS,BV,etc.
Production TechnologyHot Rolling,Cold Rolling
Edge ProcessingEdging,Trimming

Chemical Composition

CSiMnCrNiSPMo
≤ 0.03≤1.0≤ 2.016.0~18.010.0~14.0≤ 0.03≤ 0.0452.0~3.0

Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 480≥ 177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV

Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10 -6 /°C)Coefficient of Thermal Conductivity(W/m * K)Resistivity(ΜΩ. cm)
7.991931 6.016.274
