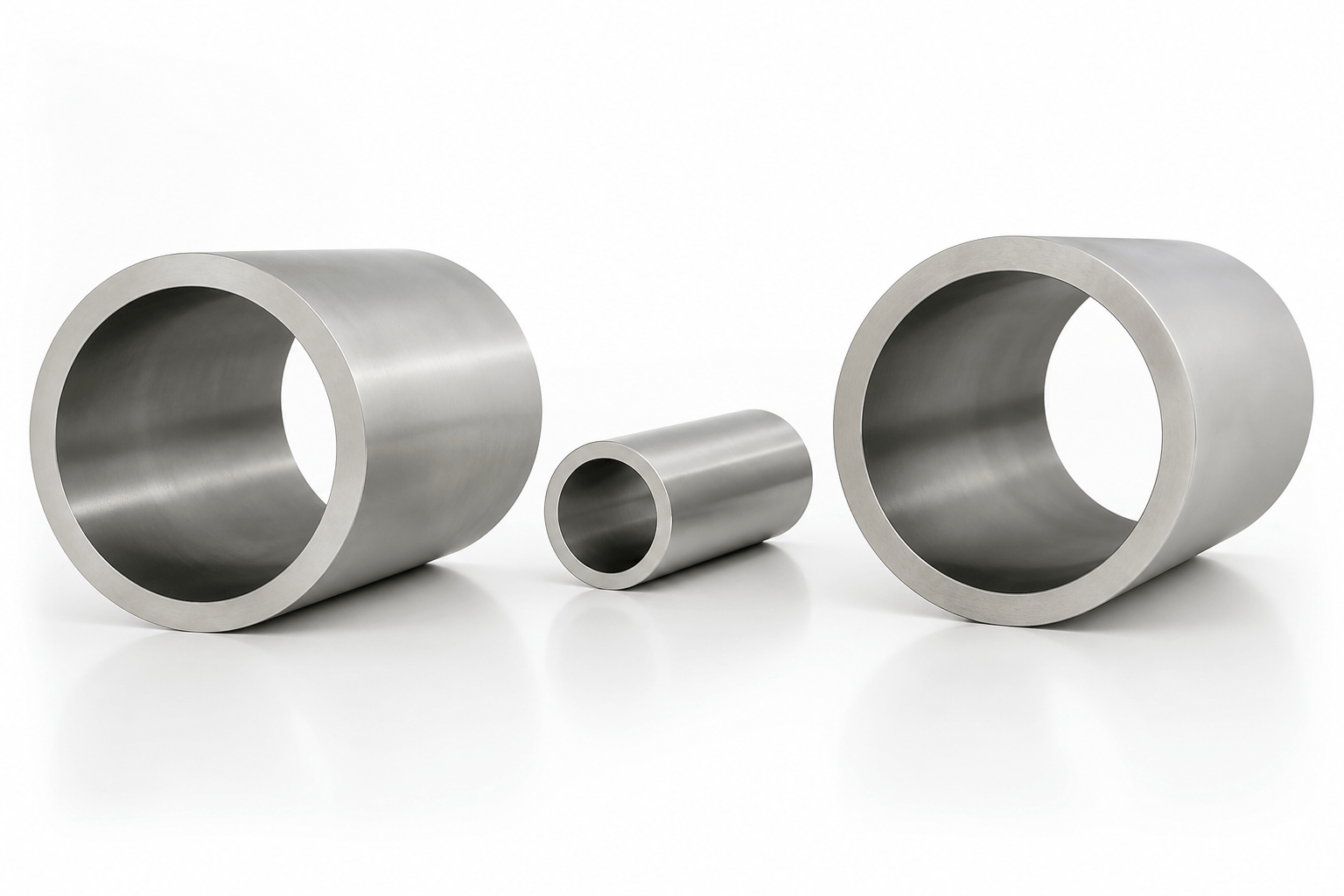

904L Stainless Steel Pipe

SKU: HC-1131510920224010240

904L stainless steel is a stainless steel material with high corrosion resistance, high strength and good mechanical properties. Due to its excellent tolerance and reliability to harsh environments, 904L stainless steel is commonly used in petroleum, chemical industry, and marine engineering.

Testing & Certification

Key Features

  • Third-Party Inspection Support
  • Sufficient Inventory Supply
  • International Standard Certification
  • Custom Processing Service

Contact Us

Scan to chatWhatsApp QR Code

Product Description

904L stainless steel is a stainless steel material with high corrosion resistance, high strength and good mechanical properties. Due to its excellent tolerance and reliability to harsh environments, 904L stainless steel is commonly used in petroleum, chemical industry, and marine engineering. 904L stainless steel is a high-strength material. This high-strength characteristic allows 904L stainless steel plate to maintain stable performance when subjected to high loads and stresses, and is not prone to deformation and fracture. It also has good toughness and can maintain good toughness in low temperature environments. More importantly, 904L stainless steel also has good wear resistance and can maintain good durability and stability in friction and wear environments. This characteristic allows 904L stainless steel to maintain a long service life under various mechanical movements and friction situations. Lastly, 904L stainless steel plate has excellent corrosion resistance and can maintain stable performance in various corrosive environments.

Specifications

Product Parameters

Product Name904L Stainless Steel Pipe
TypeSteel Pipe
Outer diameterRound Tube4mm-200mm
Square Tube10*10mm-100*100mm
Rectangular Tube10*20mm-50*100mm
Wall Thickness0.6mm-6.0mm
Length1-6 meters,Length can be customized
StandardASTM,AISI,JIS,GB,DIN,EN,etc.
SurfaceBlack,Bright Polished,Rough Turning,Matt Surface Treatment,No. 4. BA,etc.
Scope of ApplicationCommon applications for stainless steel pipes include food processing,Textile operations,Breweries,Water treatment plants,Oil and gas processing,Fertilizers and pesticides,Chemical applications,Construction,Pharmaceuticals,Auto parts,etc.
CertificateISO,SGS,BV,etc.
Production TechnologyHot Rolling,Cold Rolling
Edge ProcessingEdging,Trimming

Chemical Composition

CSiMnCrNiMoSP
≤ 0.02≤ 1.0≤ 2.019.0~23.023.0~28.04.0~5.0≤ 0.035≤ 0.045

Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 490≥ 220≥ 35≤ 90HRB

Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10 -6 /°C)Coefficient of Thermal Conductivity(W/m * K)Resistivity(ΜΩ. cm)
8.019515.512.094
