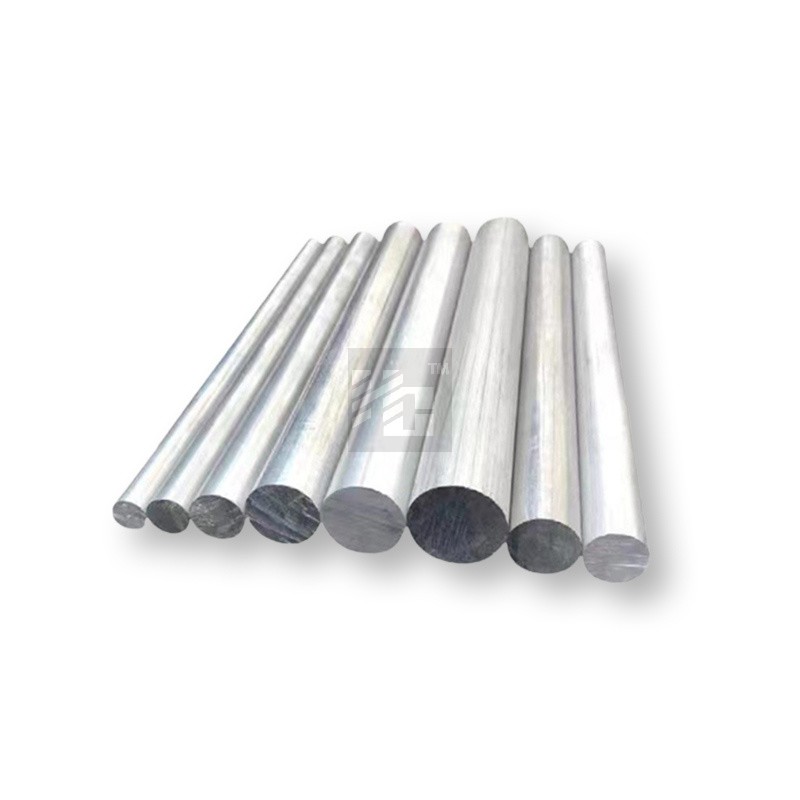

Hastelloy B-3 Bar

SKU: HC-1146015184774103040

Hastelloy B3 bar has better strength and corrosion resistance at high temperatures compared with traditional Hastelloy. B3 alloy shows excellent stability and durability, especially in oxidizing and reducing environments, as well as extreme corrosive environments such as strong acid and strong alkali.

Testing & Certification

Key Features

  • Third-Party Inspection Support
  • Sufficient Inventory Supply
  • International Standard Certification
  • Custom Processing Service

Contact Us

Scan to chatWhatsApp QR Code

Product Description

Hastelloy B3 bar has better strength and corrosion resistance at high temperatures compared with traditional Hastelloy. B3 alloy shows excellent stability and durability, especially in oxidizing and reducing environments, as well as extreme corrosive environments such as strong acid and strong alkali. Hastelloy B3 is a nickel-based high-temperature alloy, mainly composed of nickel, molybdenum, cobalt and other elements. This alloy material is optimized on the basis of Hastelloy B2. I mproving the thermal stability of the material significantly enhances the corrosion resistance, while also effectively improving the hot forming and cold forming performance. Hastelloy B3 bars ha ve been increasingly used in the production and manufacturing of chemical equipment. Besides, Hastelloy B3 material has many unique properties. Its high elongation provides favorable conditions for cold forming operations. Compared to austenitic stainless steel, Hastelloy B3 bar is harder and therefore requires greater pressure during cold forming or step forming processes.

Product Parameters

Product NameHastelloy B-3 Bar
Outer DiameterRound Bar4mm-500mm
Hexagon Bar18mm-57mm (11/16″ to 2-3/4″)
Square Bar18mm-47mm (11/16″ to 1-3/4″)
Flat Steel1/2 "to 10",Thickness: 2mm-150mm,Can provide customized
Length1-6 meters,Length can be customized
StandardASTM,AISI,JIS,GB,DIN,EN,etc.
SurfaceBlack,Bright Polished,Rough Turning,Matt Surface Treatment,NO.4,BA,etc.
CertificateISO,SGS,BV
Production TechnologyHot Rolling,Cold Rolling

Chemical Composition

CAlSiPSTiVCrMnFeCoNiCuZrNbMoTaWNot MO
0.01 max0.5 max0.10 max0.03 max0.01 max0.2 max0.2 max1.0 - 3.03.0 max1.0 - 3.03.0 max65.0 min0.2 max0.1 max0.2 max27.0 - 32.00.2 max3.0 max94.0 - 98.0

Mechanical Properties

Tensile Strength (ksi)0.2% Yield Strength (ksi)Elongation% in 2 inches
1105140

Physical Performance

UnitsTemperature in°C
Density9.22 g/cm³Room
Specific Heat0.089 Kcal/kg.CRoom
Melting Range1370-1418°C-
Modulus of Elasticity216 KN/mm²Room
Electrical Resistivity137 µΩ.cmRoom
Coefficient of Expansion10.6 µm/m °C25 - 100°
Thermal Conductivity11.2 w/m-° KRoom
