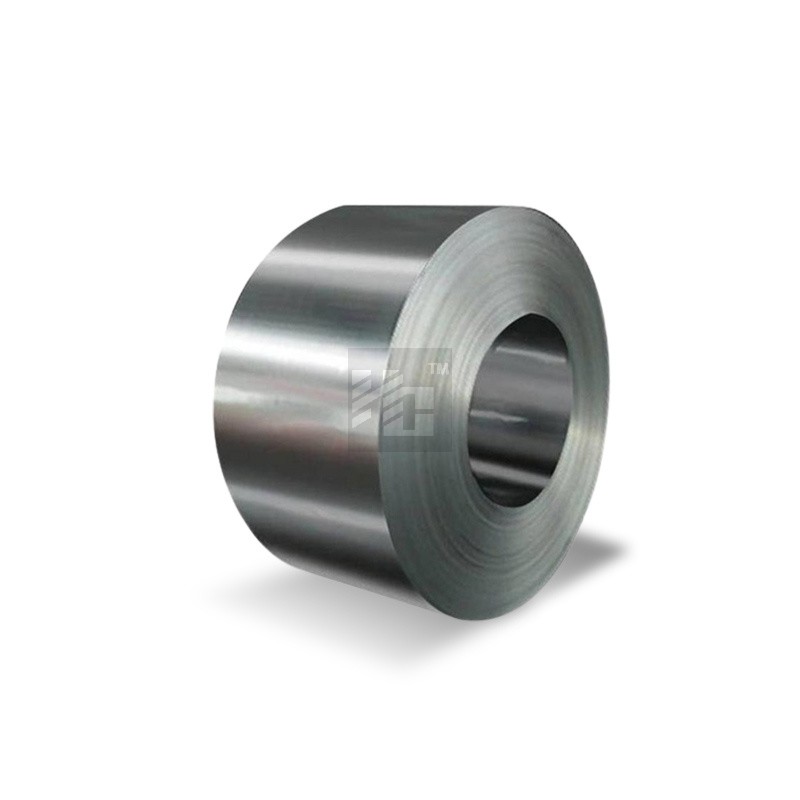

Hastelloy X Coil
SKU: HC-1146005056568508416
Hastelloy X coil is made of a high-quality alloy material. It has excellent corrosion resistance, high temperature strength and good processing properties, and is widely used in petroleum, chemical industry, pharmaceuticals, aerospace and other fields.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:juniper@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Hastelloy X coil is made of a high-quality alloy material. It has excellent corrosion resistance, high temperature strength and good processing properties, and is widely used in petroleum, chemical industry, pharmaceuticals, aerospace and other fields. Hastelloy X coil has excellent corrosion resistance and can be used for a long time in various corrosive environments. This is because a large number of alloying elements are added to the alloy, such as nickel, chromium, molybdenum, etc. These elements form a dense oxide film on the surface of the alloy, which can effectively resist the erosion of various chemical substances. Hastelloy X coil has excellent high-temperature strength and can maintain high strength and hardness in high-temperature environments. This is because the alloying elements in the alloy can form strengthening molybdenum, which improves the tensile strength and yield strength of the alloy. Hastelloy X has good processing properties and can be used for casting, forging, rolling and other processing processes. During the processing process, the fluidity and plasticity of the alloy are relatively good.
Product Parameters
| Product Name | Hastelloy X Coil |
|---|---|
| Thickness | 2.5mm-10.0 mm |
| Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc. |
| Width | 610-2000 mm |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. |
| Surface | BA,2B,NO.1,NO.4,4K,HL,8K,etc. |
| Certificate | ISO,SGS,BV |
| Production Technology | Hot Rolling,Cold Rolling |
Chemical Composition
| C | Si | P | S | Cr | Mn | Fe | Co | Ni | Mo | W |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 - 0.15 | 1.0 max | 0.04 | 0.03 | 20.5 - 23.0 | 1.0 max | 17.0 - 20.0 | 0.5 - 2.5 | Remainder | 8.0 - 10.0 | 0.2 - 1.0 |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
| 95 | 35 | 35 |
Physical Performance
| Units | Temperature in°C | |
| Density | 8.22 g/cm³ | 22°C |
| Specific Heat | 0.116 Kcal/kg. | Room |
| Melting Range | 1260-1355°C | - |
| Modulus of Elasticity | 205 KN/mm² | Room |
| Electrical Resistivity | 118.3 µΩ.cm | 22° |
| Coefficient of Expansion | 13.9 µm/m °C | 26 - 93° |
| Thermal Conductivity | 9.1 w/m-° K | 21° |
