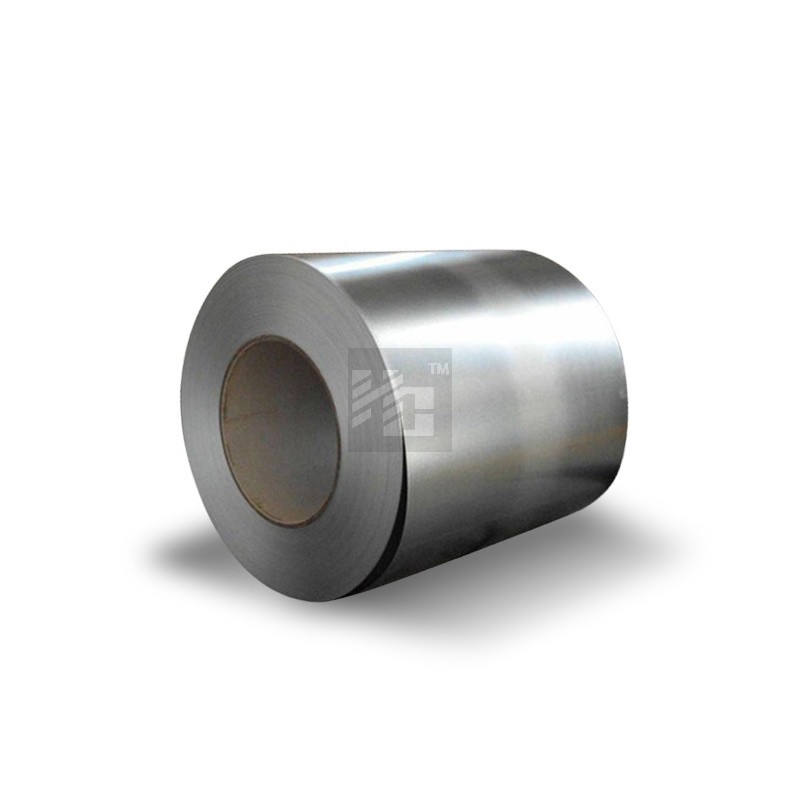

Inconel 601 Coil
SKU: HC-1146005433321865216
Inconel 601 coil is made of a high-strength, corrosion-resistant nickel-based alloy that is widely used in various high-temperature equipment. As a material with good mechanical properties and corrosion resistance, Inconel 601 is widely used in aviation, chemical industry, marine engineering and other fields.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:juniper@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Inconel 601 coil is made of a high-strength, corrosion-resistant nickel-based alloy that is widely used in various high-temperature equipment. As a material with good mechanical properties and corrosion resistance, Inconel 601 is widely used in aviation, chemical industry, marine engineering and other fields. Inconel 601 is a nickel-based high-temperature alloy whose main components are nickel, chromium, aluminum and iron. Among them, nickel accounts for the majority, with a content generally above 58%, while chromium and aluminum account for about 19% and 1.0% respectively. In addition, it also contains small amounts of elements such as copper and manganese, which can enhance the strength and corrosion resistance of the material. Inconel 601 coil has excellent high temperature strength, corrosion resistance and oxidation resistance. At high temperatures, its strength and hardness can be maintained at a high level, while having good plasticity and toughness. In an acidic environment, Inconel 601 coil exhibits good corrosion resistance and can effectively resist erosion by corrosive media such as chloride ions and sulfides.
Product Parameters
| Product Name | Inconel 601 Coil |
| Thickness | 2.5mm-10.0 mm |
| Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc. |
| Width | 610-2000 mm |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. |
| Surface | BA,2B,NO.1,NO.4,4K,HL,8K,etc. |
| Certificate | ISO,SGS,BV |
| Production Technology | Hot Rolling,Cold Rolling |
Chemical Composition
| C | Al | Si | S | Cr | Mn | Fe | Ni | Cu |
|---|---|---|---|---|---|---|---|---|
| 0.1 max | 1.0-1.7 | 0.5 max | 0.015 max | 21.0-25.0 | 1.0 max | Remainder | 58.0-63.0 | 1.0 max |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
| 80 | 30 | 30 |
Physical Performance
| Units | Temperature in°C | |
| Density | 8.11 g/cm³ | Room |
| Specific Heat | 0.107 Kcal/kg.C | 20° |
| Melting Range | 1360-1411°C | - |
| Modulus of Elasticity | 206.5 KN/mm² | 20° |
| Electrical Resistivity | 118 µΩ.cm | 20° |
| Coefficient of Expansion | 13.75 µm/m °C | 20 - 100° |
| Thermal Conductivity | 11.2 w/m-° K | 20° |
