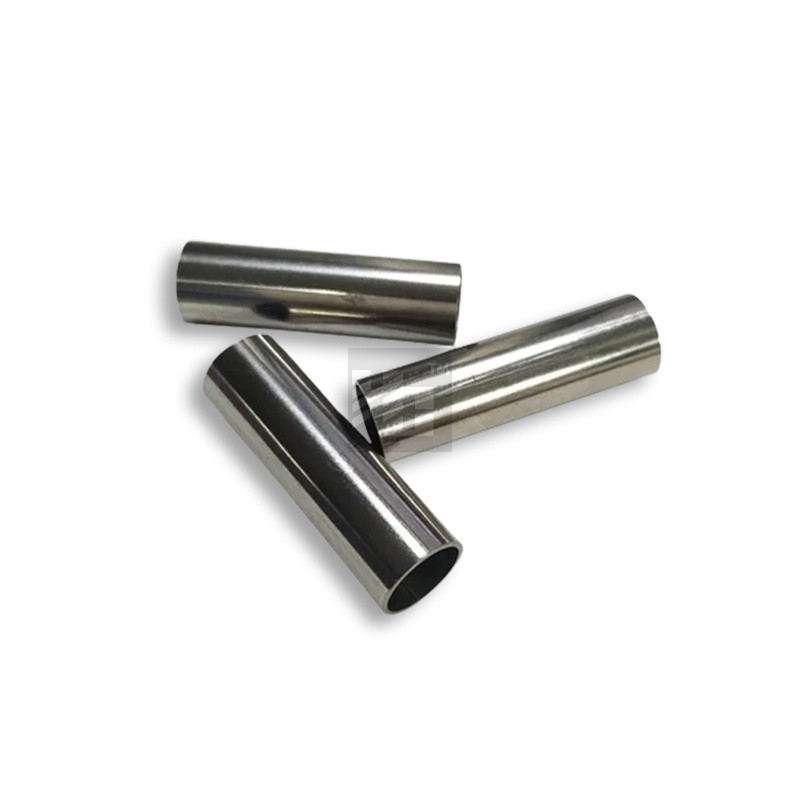

Inconel 600 Pipe
SKU: HC-1146012465475174400
Inconel 600 pipe is made of a nickel-based superalloy characterized by excellent heat resistance, corrosion resistance and high strength in extreme environments. This alloy is widely used in the chemical, aerospace, heat treatment and power industries, especially in high-temperature applications that require resistance to oxidizing and reducing environments.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:juniper@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Inconel 600 pipe is made of a nickel-based superalloy characterized by excellent heat resistance, corrosion resistance and high strength in extreme environments. This alloy is widely used in the chemical, aerospace, heat treatment and power industries, especially in high-temperature applications that require resistance to oxidizing and reducing environments. Inconel 600 alloy is mainly composed of nickel and chromium, with a nickel content of approximately 72% and a chromium content of approximately 14%-17%. In addition, the alloy contains a smaller proportion of iron, as well as trace amounts of silicon, carbon and manganese. This unique chemical composition gives Inconel 600 pipe excellent corrosion resistance and mechanical strength at high temperatures. Inconel 600 alloy has excellent mechanical properties over a wide temperature range and is capable of use at temperatures up to 1093 ° C (2000 ° F) without losing good creep and fracture resistance. Its corrosion resistance is particularly remarkable and it is highly resistant to a variety of corrosive media, including seawater, organic acids, and high-temperature and high-pressure steam environments.
Product Parameters
| Product Name | Inconel 600 Pipe | |
| Outer Diameter | Round Pipe | 4mm-200mm |
| Square Pipe | 10*10mm-100*100mm | |
| Rectangular Pipe | 10*20mm-50*100mm | |
| Wall Thickness | 0.6mm-6.0mm | |
| Length | 1-6 meters,Length can be customized | |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. | |
| Surface | Black,Bright Polished,Rough Turning,Matt Surface Treatment,No.4,BA,etc. | |
| Certificate | ISO,SGS,BV | |
| Production Technology | Hot Rolling,Cold Rolling | |
Chemical Composition
| C | Si | S | Cr | Mn | Fe | Ni | Cu |
|---|---|---|---|---|---|---|---|
| 0.15 max | 0.5 max | 0.015 max | 14.0 - 17.0 | 1.0 max | 6.0 - 10.0 | 72.0 min | 0.5 max |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
| 110 | 85 | 10 |
Physical Performance
| Units | Temperature in°C | |
| Density | 8.47 g/cm³ | Room |
| Specific Heat | 0.106 Kcal/kg.C | 22° |
| Melting Range | 1354-1413°C | - |
| Modulus of Elasticity | 214 KN/mm² | 22° |
| Electrical Resistivity | 103 µΩ.cm | Room |
| Coefficient of Expansion | 13.3 µm/m °C | 20 - 100° |
| Thermal Conductivity | 14.9 w/m-° K | 20° |
