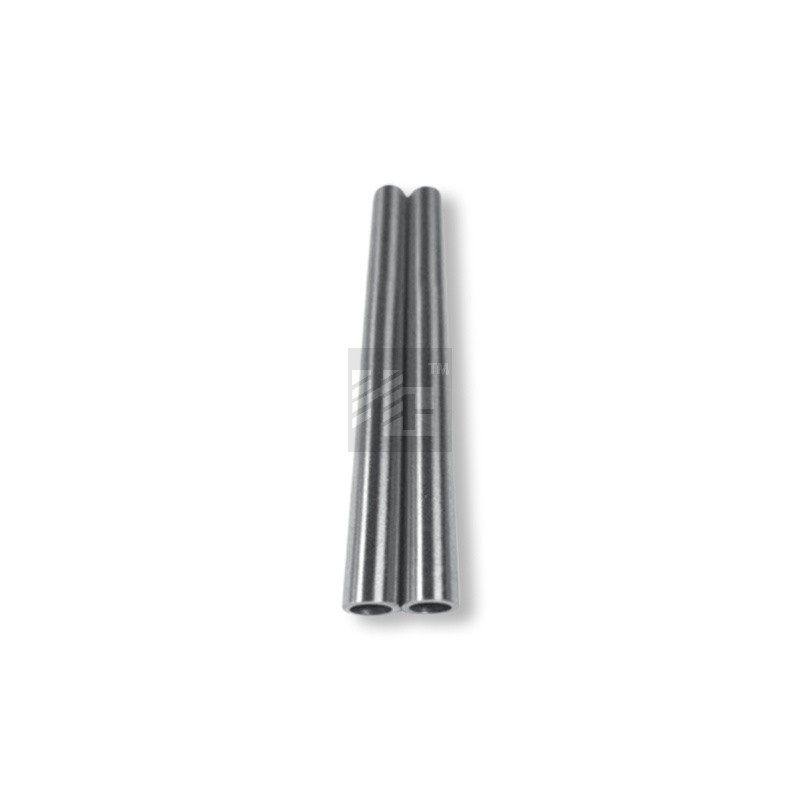

Inconel 718 Pipe

SKU: HC-1146013105718902784

Inconel 718 pipe is made of a special type of high-strength superalloy whose nickel-chromium base makes it resistant to corrosion, high pressures and extreme temperatures up to 700°C. Due to its unique properties, Inconel 718 pipe has become useful in a wide range of applications from manufacturing operations to military equipment and the aerospace industry.

Testing & Certification

Key Features

  • Third-Party Inspection Support
  • Sufficient Inventory Supply
  • International Standard Certification
  • Custom Processing Service

Contact Us

Scan to chatWhatsApp QR Code

Product Description

Inconel 718 pipe is made of a special type of high-strength superalloy whose nickel-chromium base makes it resistant to corrosion, high pressures and extreme temperatures up to 700°C. Due to its unique properties, Inconel 718 pipe has become useful in a wide range of applications from manufacturing operations to military equipment and the aerospace industry. Inconel 718 is known for being a high-strength, high-temperature, corrosion-resistant nickel-based alloy whose chemical composition includes elements such as nickel, chromium, molybdenum, iron, cobalt, aluminum, titanium, zirconium, carbon, and manganese. Inconel 718 pipe has a melting point of 1430 ° C and displays effective heat and temperature resistance. It also works well at low temperatures. This nickel superalloy has the inherent ability to create a strong and stable oxide layer when heated. In addition, the layer makes this Inconel variant significantly resistant to oxidation, thus protecting it from corrosion. Inconel 718 pipe can be manufactured through a variety of processing methods, such as forging, hot rolling, cold drawing and welding. One thing to keep in mind is it is prone to oxidation and hardening at high temperatures, and appropriate preheating and post-processing measures are necessary to reduce this phenomenon.

Product Parameters

Product NameInconel 718 Pipe
Outer DiameterRound Pipe4mm-200mm
Square Pipe10*10mm-100*100mm
Rectangular Pipe10*20mm-50*100mm
Wall Thickness0.6mm-6.0mm
Length1-6 meters,Length can be customized
StandardASTM,AISI,JIS,GB,DIN,EN,etc.
SurfaceBlack,Bright Polished,Rough Turning,Matt Surface Treatment,No.4,BA,etc.
CertificateISO,SGS,BV
Production TechnologyHot Rolling,Cold Rolling

Chemical Composition

BCAlSiPSTiCrMnFeCoNiCuMoCb (Nb Ta)
0.006 max0.08 max0.20-0.800.35 max0.015 max0.015 max0.65-1.1517.00-21.000.35 maxRemainder1.0 max50.00 - 55.000.30 max2.80 - 3.304.75 - 5.50

Mechanical Properties

Tensile Strength (ksi)0.2% Yield Strength (ksi)Elongation% in 2 inches
18015012

Physical Performance

UnitsTemperature in°C
Density8.19 g/cm³Room
Specific Heat0.104 Kcal/kg.C21°
Melting Range1260-1366°C-
Modulus of Elasticity199.9 KN/mm²21°
Electrical Resistivity125 µΩ.cmRoom
Coefficient of Expansion13.0 µm/m °C20 - 100°
Thermal Conductivity11.1 w/m-° K21°
