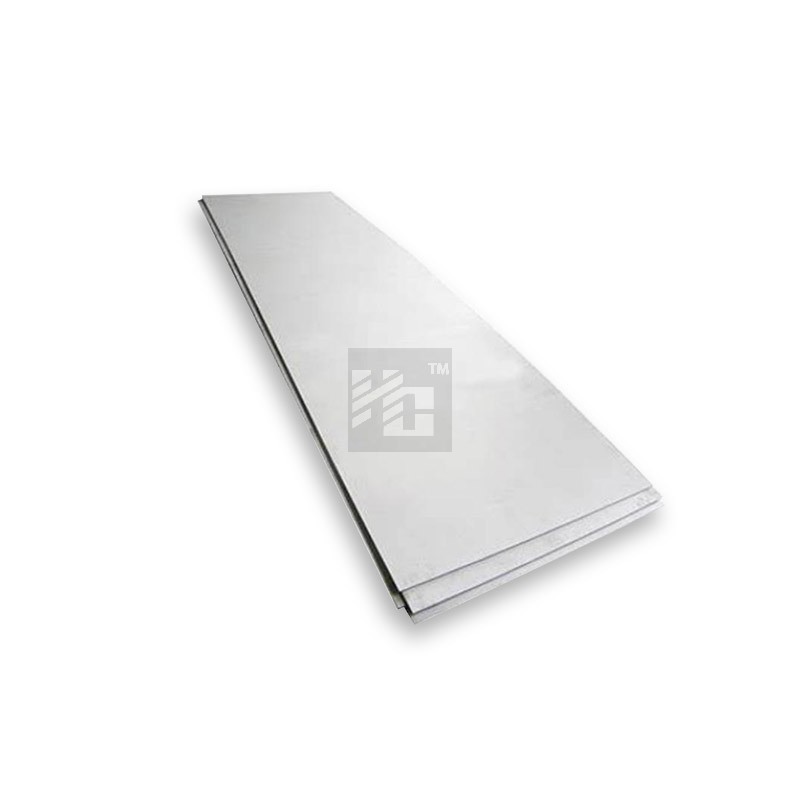

Hastelloy B-2 Plate

SKU: HC-1144587425014484992

Hastelloy B2 plate is made of a solid solution strengthened nickel-based special alloy with excellent corrosion resistance and high temperature strength. Hastelloy B2 exhibits excellent corrosion resistance in various temperatures and complex environments, especially in oxidizing environments.

Testing & Certification

Key Features

  • Third-Party Inspection Support
  • Sufficient Inventory Supply
  • International Standard Certification
  • Custom Processing Service

Contact Us

Scan to chatWhatsApp QR Code

Product Description

Hastelloy B2 plate is made of a solid solution strengthened nickel-based special alloy with excellent corrosion resistance and high temperature strength. Hastelloy B2 exhibits excellent corrosion resistance in various temperatures and complex environments, especially in oxidizing environments. The chemical composition of Hastelloy B2 plate mainly includes nickel, chromium, molybdenum and a small amount of iron, tungsten and other elements. The combination of these elements gives the material excellent corrosion resistance and high-temperature strength. Among them, the nickel element provides good corrosion resistance, the chromium element enhances the material's corrosion resistance in an oxidizing environment, and the molybdenum element improves the material's corrosion resistance in a reducing environment. In addition, the addition of elements such as iron and tungsten further enhance the strength and hardness of the material. Hastelloy B2 plate has good processing properties and can be used for hot processing and cold processing. Among them, hot processing includes casting, hot rolling, heat treatment and other processes, while cold processing includes cold rolling, cold drawing, stamping and other processes.

Product Parameters

Product NameHastelloy B-2 Plate
Thickness0.3mm-200mm
Length2000mm,2438mm,3000mm,5800mm,6000mm,12000mm,etc.
Width40mm-600mm,1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc.
StandardASTM,AISI,JIS,GB,DIN,EN,etc.
SurfaceBA,2B,NO.1,NO.4,4K,HL,8K,etc.
CertificateISO,SGS,BV
Production TechnologyHot Rolling,Cold Rolling

Chemical Composition

CSiPSCrMnFeCoNiMo
0.02 max0.1 max0.04 max0.03 max1.0 max1.0 max2.0 max1.0 maxRemainder26.0 - 30.0

Mechanical Properties

Tensile Strength (ksi)0.2% Yield Strength (ksi)Elongation% in 2 inches
1105140

Physical Performance

UnitsTemperature in°C
Density9.22 g/cm³22°C
Specific Heat0.089 Kcal/kg.CRoom
Melting Range1370-1418°C-
Modulus of Elasticity217 KN/mm²Room
Electrical Resistivity137 µΩ.cm0 °
Coefficient of Expansion10.3 µm/m °C20-93°
Thermal Conductivity11.1 w/m-° K
