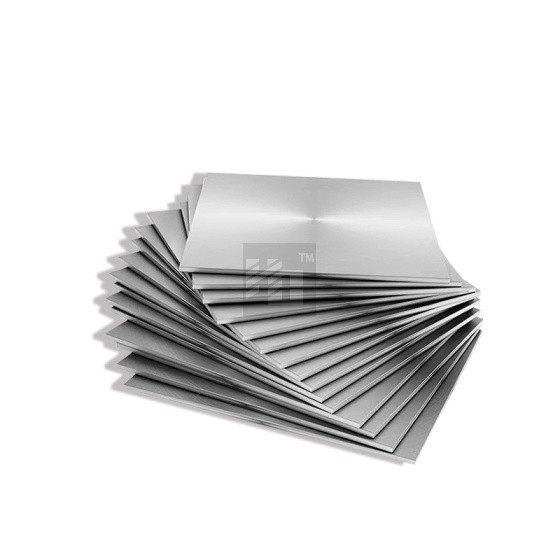

Hastelloy C-276 Plate

SKU: HC-1144584403635015680

Hastelloy C276 plate is a high-performance metal material with excellent corrosion resistance and mechanical properties. It is widely used in metal materials under high temperature, high pressure, and corrosive environments, such as petrochemical, chemical fertilizer, nuclear industry and other fields.

Testing & Certification

Key Features

  • Third-Party Inspection Support
  • Sufficient Inventory Supply
  • International Standard Certification
  • Custom Processing Service

Contact Us

Scan to chatWhatsApp QR Code

Product Description

Hastelloy C276 plate is a high-performance metal material with excellent corrosion resistance and mechanical properties. It is widely used in metal materials under high temperature, high pressure, and corrosive environments, such as petrochemical, chemical fertilizer, nuclear industry and other fields. Hastelloy C276 is a nickel-based alloy that has excellent corrosion resistance and high temperature strength. Due to its unique composition and specially processed processing technology, Hastelloy C276 plate can maintain stable performance in various harsh environments. Its high corrosion resistance makes it widely used in the marine, chemical and petroleum industries. In high-temperature environments, the strength and ductility of Hastelloy C276 can maintain a high level, which allows it to maintain stable performance in high-temperature environments. In addition, the welding performance of Hastelloy C276 alloy is also very good and it can be connected through various welding processes. Due to the particularity of its composition and processing technology, the processing of Hastelloy C276 requires special equipment and technology.

Product Parameters

Product NameHastelloy C-276 Plate
Thickness0.3mm-200mm
Length2000mm,2438mm,3000mm,5800mm,6000mm,12000mm,etc.
Width40mm-600mm,1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc.
StandardASTM,AISI,JIS,GB,DIN,EN,etc.
SurfaceBA,2B,NO.1,NO.4,4K,HL,8K,etc.
CertificateISO,SGS,BV
Production TechnologyHot Rolling,Cold Rolling

Chemical Composition

CPSiSVCrMnFeCoNiMoW
0.01 max0.08 max0.04 max0.03 max0.35 max14.5 - 16.51.0 max4.0 - 7.02.5 maxRemainder15.0 - 17.03.0 - 4.5

Mechanical Properties

Tensile Strength (ksi)0.2% Yield Strength (ksi)Elongation% in 2 inches
1004140

Physical Performance

UnitsTemperature in°C
Density8.69 g/cm³22°
Specific Heat0.102 Kcal/kg.CRoom
Melting Range1323-1371°C-
Modulus of Elasticity205 KN/mm²Room
Electrical Resistivity129.5 µΩ.cm24°
Coefficient of Expansion11.2 µm/m °C24-93°
Thermal Conductivity10.2 w/m-° K38°
