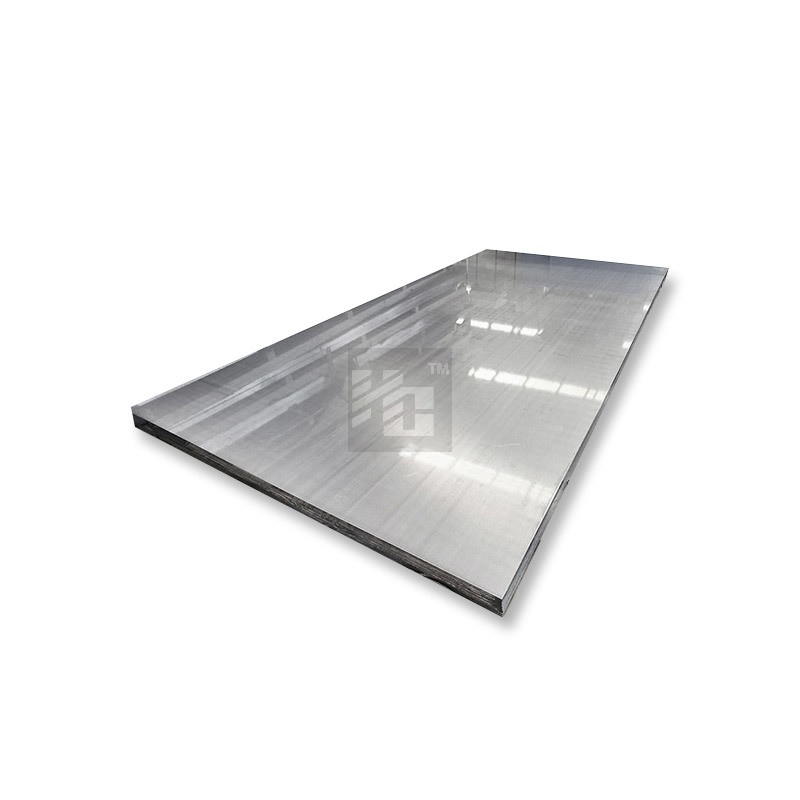

Hastelloy X Plate

SKU: HC-1144588898351792128

Hastelloy X plate is made of a high-quality alloy material. It has excellent corrosion resistance, high temperature strength and good processing properties, and is widely used in petroleum, chemical industry, pharmaceuticals, aerospace and other fields.

Testing & Certification

Key Features

  • Third-Party Inspection Support
  • Sufficient Inventory Supply
  • International Standard Certification
  • Custom Processing Service

Contact Us

Scan to chatWhatsApp QR Code

Product Description

Hastelloy X plate is made of a high-quality alloy material. It has excellent corrosion resistance, high temperature strength and good processing properties, and is widely used in petroleum, chemical industry, pharmaceuticals, aerospace and other fields. Hastelloy X plate has excellent corrosion resistance and can be used for a long time in various corrosive environments. This is because a large number of alloying elements are added to the alloy, such as nickel, chromium, molybdenum, etc. These elements form a dense oxide film on the surface of the alloy, which can effectively resist the erosion of various chemical substances. Hastelloy X plate has excellent high-temperature strength and can maintain high strength and hardness in high-temperature environments. This is because the alloying elements in the alloy can form strengthening molybdenum, which improves the tensile strength and yield strength of the alloy. Hastelloy X has good processing properties and can be used for casting, forging, rolling and other processing processes. During the processing process, the fluidity and plasticity of the alloy are relatively good.

Product Parameters

Product NameHastelloy X Plate
Thickness0.3mm-200mm
Length2000mm,2438mm,3000mm,5800mm,6000mm,12000mm,etc.
Width40mm-600mm,1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc.
StandardASTM,AISI,JIS,GB,DIN,EN,etc.
SurfaceBA,2B,NO.1,NO.4,4K,HL,8K,etc.
CertificateISO,SGS,BV
Production TechnologyHot Rolling,Cold Rolling

Chemical Composition

CSiPSCrMnFeCoNiMoW
0.05 - 0.151.0 max0.040.0320.5 - 23.01.0 max17.0 - 20.00.5 - 2.5Remainder8.0 - 10.00.2 - 1.0

Mechanical Properties

Tensile Strength (ksi)0.2% Yield Strength (ksi)Elongation% in 2 inches
953535

Physical Performance

UnitsTemperature in°C
Density8.22 g/cm³22°C
Specific Heat0.116 Kcal/kg.Room
Melting Range1260-1355°C-
Modulus of Elasticity205 KN/mm²Room
Electrical Resistivity118.3 µΩ.cm22°
Coefficient of Expansion13.9 µm/m °C26 - 93°
Thermal Conductivity9.1 w/m-° K21°
