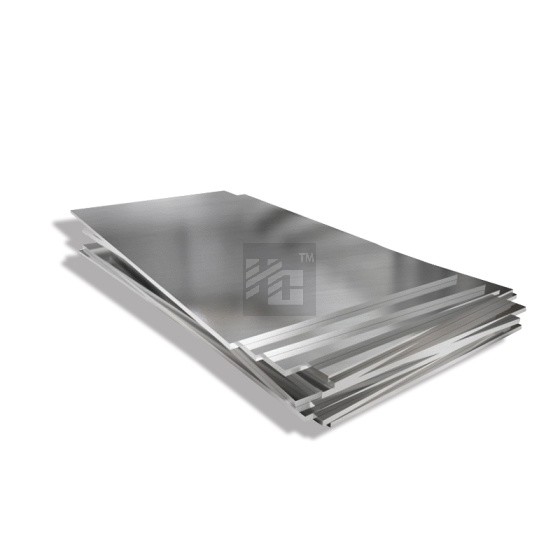

Incoloy 925 Plate
SKU: HC-1144593382331256832
Incoloy 925 plate is made of a nickel-based high-temperature alloy that is widely used in industrial fields under various extreme environments due to its excellent corrosion resistance and high-temperature strength.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:juniper@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Incoloy 925 plate is made of a nickel-based high-temperature alloy that is widely used in industrial fields under various extreme environments due to its excellent corrosion resistance and high-temperature strength. Incoloy 925 alloy is mainly composed of nickel, chromium, iron and other elements, and also contains a certain amount of aluminum, titanium and other elements. This alloy has good corrosion resistance and can maintain stable performance in oxidizing and reducing environments. In addition, Incoloy 925 also has good high-temperature strength and creep properties, and can maintain good mechanical properties in high-temperature environments. Other excellent properties include excellent welding and manufacturing processability. Besides, Incoloy 925 plate can resist oxidation and hot corrosion in high-temperature oxidizing environments and has long-term stability. One thing to note is Incoloy 925 plate shows good resistance to stress corrosion cracking in chlorine-containing media and is suitable for seawater environments and chemical process applications containing chlorides.
Product Parameters
| Product Name | Incoloy 925 Plate |
| Thickness | 0.3mm-200mm |
| Length | 2000mm,2438mm,3000mm,5800mm,6000mm,12000mm,etc. |
| Width | 40mm-600mm,1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc. |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. |
| Surface | BA,2B,NO.1,NO.4,4K,HL,8K,etc. |
| Certificate | ISO,SGS,BV |
| Production Technology | Hot Rolling,Cold Rolling |
Chemical Composition
| C | Al | Si | P | S | Ti | Cr | Mn | Fe | Ni | Cu | Nb | Mo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.03 max | 0.1 - 0.5 | 0.5 max | 0.03 max | 0.03 max | 1.9 - 2.4 | 19.5 - 22.5 | 1.0 max | 22.0 min | 42.00-46.00 | 1.5 - 3.0 | 0.5 max | 2.5 - 3.5 |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
| 85 | 35 | 30 |
Physical Performance
| Units | Temperature in°C | |
| Density | 8.14 g/cm³ | Room |
| Specific Heat | 0.105 Kcal/kg.C | Room |
| Melting Range | 1370-1400°C | - |
| Modulus of Elasticity | 196 KN/mm² | 20° |
| Electrical Resistivity | 113 µΩ.cm | 25° |
| Coefficient of Expansion | 14.1 µm/m °C | 25 - 100° |
| Thermal Conductivity | 11.1 w/m-° K | 25° |
