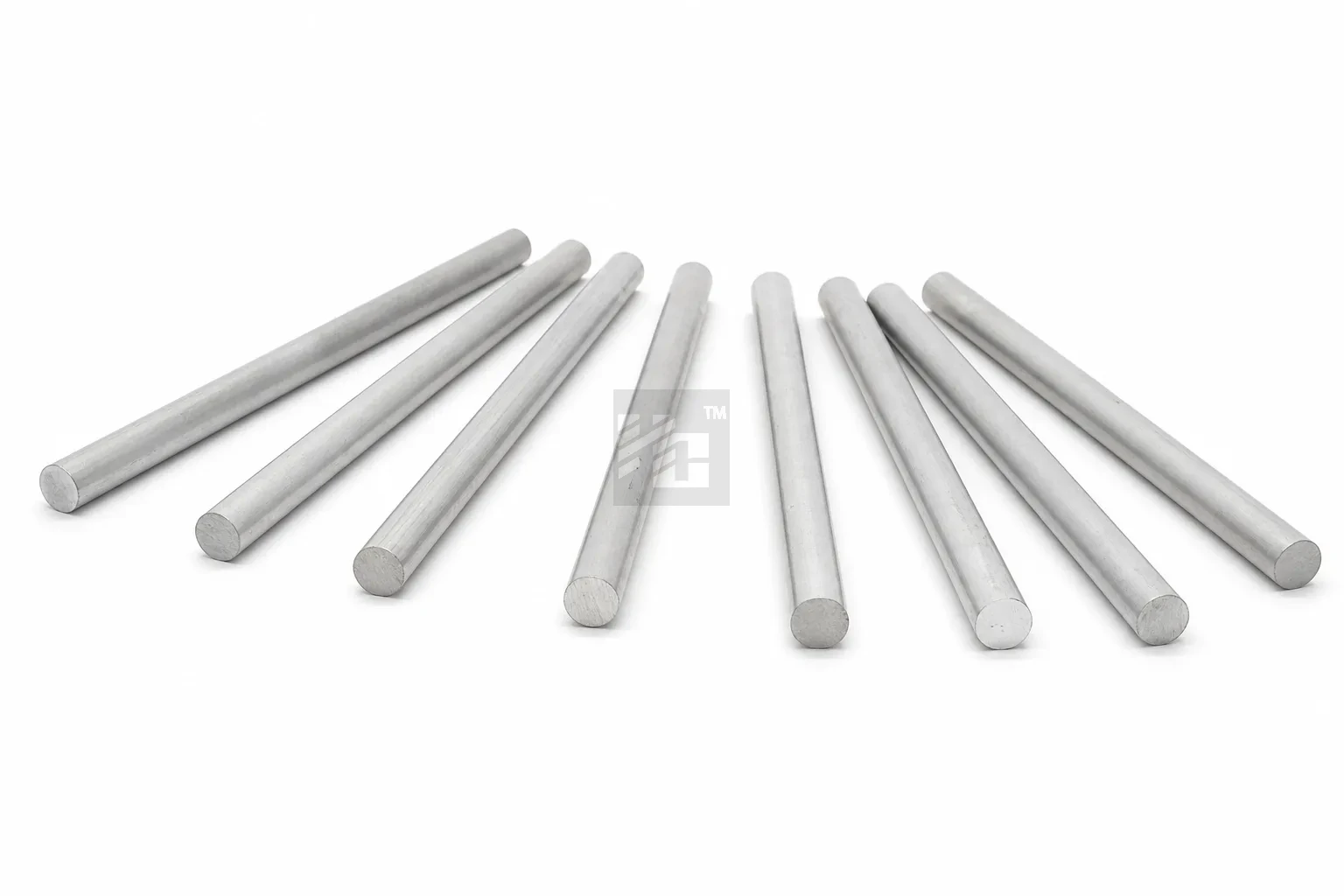

5005 Aluminum Bar
SKU: HC-1138859877465923584
5005 aluminum bar is made from a multifunctional alloy with a wide range of properties and uses. The bar has excellent corrosion resistance, weldability, formability and machinability, as well as medium strength. This bar is used in many industries and applications.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
5005 aluminum bar is made from a multifunctional alloy with a wide range of properties and uses. The bar has excellent corrosion resistance, weldability, formability and machinability, as well as medium strength. This bar is used in many industries and applications. 5005 aluminum bar is made from a common aluminum alloy material composed of aluminum and other alloy elements. Its chemical composition mainly consists of aluminum, making up more than 99.7%, as well as small amounts of magnesium, silicon, and iron. 5005 aluminum alloy are highly resistant to oxidation, corrosion, fading and other problems, having remarkable oxidation resistance in atmospheric environment. Besides, 5005 aluminum bar has good plasticity and processability, as it can be formed through various methods such as cold working and hot working. The process of 5005 aluminum bar has good adjustability. Its hardness, strength, plasticity and other properties can be flexibly adjusted through appropriate heat treatment processes.
Product Parameters
| Diameter | 5-650mm or customized | Length | 100-2000mm or customized |
| Certificate | ISO,SGS,BV | ||
| Standard | JIS,AISI,ASTM,GB,DIN,EN,etc. | ||
| Brand | 1000 Series : 1050,1060,1070,1100,1200,1235,etc.3000 Series : 3003,3004,3005,3104,3105,3A21,etc.5000 Series : 5005,5052,5083,5086,5154,5182,5251,5754,5A05,etc.6000 Series : 6061,6063,6082,6A02,etc.7000 Series : 7050,7475,7075,etc.8000 Series : 8A06,8011,8090,etc. | ||
| Surface | Coating,Embossing,Drawing,Polishing,Anodizing,etc. | ||
| OEM Service | Punching,Cutting special size,Making flat surface,Surface treatment,etc. | ||
| Application | Construction,Shipbuilding,Decoration,Industry,Manufacturing,Machinery,Hardware and other fields | ||
| Packaging | Strapping,Plastic bag,Film,Wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Allowance |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Allowance |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Allowance |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Allowance |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Allowance |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Allowance |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Allowance |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Allowance |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Allowance |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Allowance |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Allowance |
Mechanical Properties
| Tensile Strength (MPa) | Test Stress (MPa) | Hardness HV | Elongation Rate (%) |
|---|---|---|---|
| 160 | 145 | 46 | 11 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity | Resistance Rate |
|---|---|---|---|---|
| 2.7 Kg/m³ | 655 °C | 69.5 GPa | 201 W/m.K | 0.033x10 ^-6 Ω.m |
Annealing State
| Brand | Annealing State |
|---|---|
| 1xxx: 1050,1050A,1060,1100 | O,H12,H14,H16,H18,H22,H24,H26,H28,H111 |
| 3xxx: 3003,3004,3005,3105 | |
| 5xxx: 5005,5052,5754,5083,5086,5182,5049,5251,5454 | O,H22,H24,H26,H28,H32,H34,H36,H38,H111 |
| 6xxx: 6061,6082 | T4,T6,T451,T651 |
| 2xxx: 2024 | T3,T351,T4 |
| 7xxx: 7075 | T6,T651 |
Scope of Application
| Aluminum Uses And Application Area | |
| Food Packaging | Beverage can ends,cans,bottle caps,etc. |
| Building | Curtain walls,cladding,suspended ceilings,thermal insulation,venetian blinds,etc. |
| Transportation | Auto parts,passenger car bodies,aviation ships and air cargo containers. |
| Electronic Equipment | Electrical appliances,communication equipment,PCPlate drilling guide,lighting and heat dissipation materials,etc. |
| Consumer Goods | Umbrellas,cooking utensils,sports equipment,etc |
| Other | Military,color coated aluminum plate |
