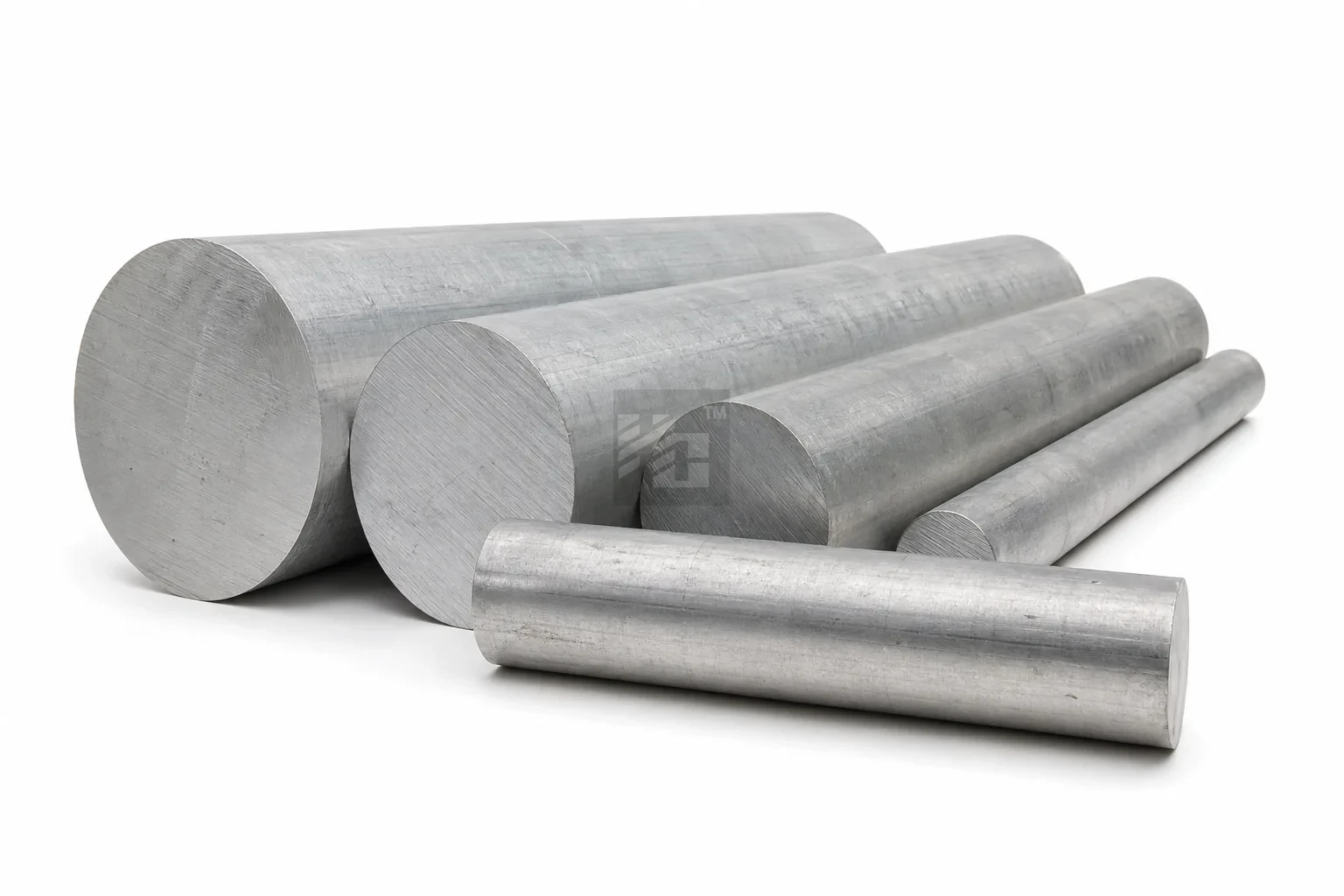

5083 Aluminum Bar
SKU: HC-1138860161375100928
5083 aluminum bar has magnesium as its main alloying element. Owing to its excellent corrosion resistance, weldability, workability, and medium strength, the bar is commonly adopted to manufacture sheet metal parts for transportation vehicles and ships.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
5083 aluminum bar has magnesium as its main alloying element. Owing to its excellent corrosion resistance, weldability, workability, and medium strength, the bar is commonly adopted to manufacture sheet metal parts for transportation vehicles and ships. 5083 aluminum is featured by high strength, high plasticity and great corrosion resistance. It has good plasticity during semi-cold work hardening and cold work. As a high-magnesium alloy material, it is widely favored for having good strength, corrosion resistance, and machinability among non-heat-treatable alloys. The main alloying element in 5083 aluminum bar is magnesium, which is associated with good corrosion resistance and weldability, as well as medium strength. Excellent corrosion resistance makes 5083 alloy widely used in maritime applications such as ships, as well as automobiles, aircraft welding parts, subways and light rails, and pressure vessels that require strict fire protection.
Product Parameters
| Diameter | 5-650mm or customized | Length | 100-2000mm or customized |
| Certificate | ISO,SGS,BV | ||
| Standard | JIS,AISI,ASTM,GB,DIN,EN,etc. | ||
| Brand | 1000 Series : 1050,1060,1070,1100,1200,1235,etc.3000 Series : 3003,3004,3005,3104,3105,3A21,etc.5000 Series : 5005,5052,5083,5086,5154,5182,5251,5754,5A05,etc.6000 Series : 6061,6063,6082,6A02,etc.7000 Series : 7050,7475,7075,etc.8000 Series : 8A06,8011,8090,etc. | ||
| Surface | Coating,Embossing,Drawing,Polishing,Anodizing,etc. | ||
| OEM Service | Punching,Cutting special size,Making flat surface,Surface treatment,etc. | ||
| Application | Construction,Shipbuilding,Decoration,Industry,Manufacturing,Machinery,Hardware and other fields | ||
| Packaging | Strapping,Plastic bag,Film,Wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Allowance |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Allowance |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Allowance |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Allowance |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Allowance |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Allowance |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Allowance |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Allowance |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Allowance |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Allowance |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Allowance |
Mechanical Properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate (%) | Hardness (HV) |
|---|---|---|---|
| 290 | 145 | 22 | 87 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
|---|---|---|---|
| 2.65 Kg/m³ | 591-638 °C | 70.3 GPa | 117 W/m.K |
Annealing State
| Brand | Annealing State |
|---|---|
| 1xxx: 1050,1050A,1060,1100 | O,H12,H14,H16,H18,H22,H24,H26,H28,H111 |
| 3xxx: 3003,3004,3005,3105 | |
| 5xxx: 5005,5052,5754,5083,5086,5182,5049,5251,5454 | O,H22,H24,H26,H28,H32,H34,H36,H38,H111 |
| 6xxx: 6061,6082 | T4,T6,T451,T651 |
| 2xxx: 2024 | T3,T351,T4 |
| 7xxx: 7075 | T6,T651 |
Scope of Application
| Aluminum Uses And Application Area | |
| Food Packaging | Beverage can ends,cans,bottle caps,etc. |
| Building | Curtain walls,cladding,suspended ceilings,thermal insulation,venetian blinds,etc. |
| Transportation | Auto parts,passenger car bodies,aviation ships and air cargo containers. |
| Electronic Equipment | Electrical appliances,communication equipment,PCPlate drilling guide,lighting and heat dissipation materials,etc. |
| Consumer Goods | Umbrellas,cooking utensils,sports equipment,etc |
| Other | Military,color coated aluminum plate |
