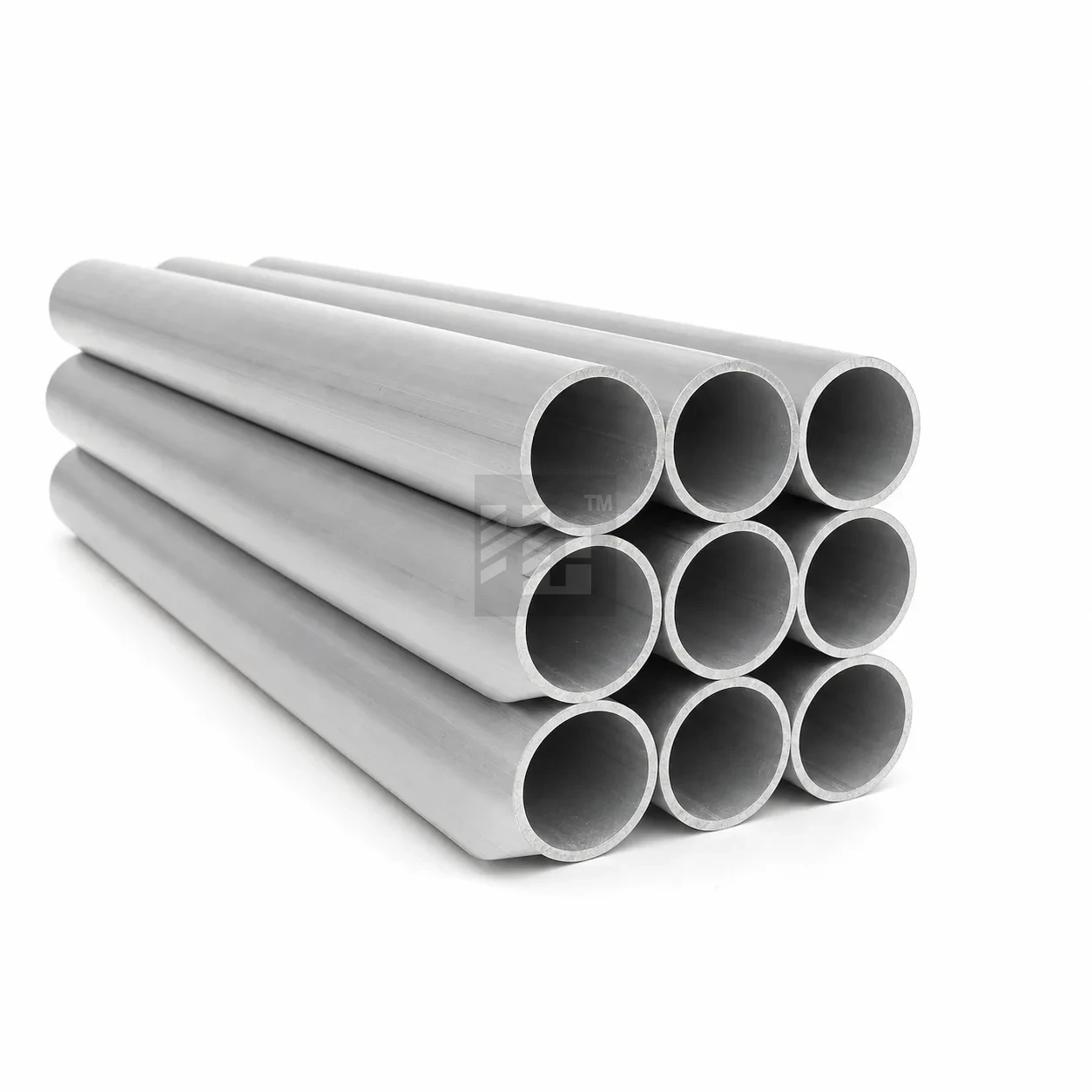

5A05 Aluminum Pipe
SKU: HC-1138770089074188288
5A05 aluminum pipe is made of an aluminum alloy material commonly used in aerospace, automotive manufacturing and structural engineering. It has outstanding strength and corrosion resistance.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
5A05 aluminum pipe is made of an aluminum alloy material commonly used in aerospace, automotive manufacturing and structural engineering. It has outstanding strength and corrosion resistance. 5A05 aluminum pipe can maintain surface smoothness and corrosion resistance in general atmospheric environments due to its excellent resistance to atmospheric corrosion. So it has widespread uses in outdoor environments, such as manufacturing building structures and vehicles. Besides, 5A03 aluminum pipe is often used in shipbuilding and marine engineering fields for its resistance to seawater corrosion. As the salt and moisture in seawater tend to corrode metal materials, and 5A03 aluminum alloy can effectively resist this corrosion and extend the service life of the material. Also, the pipe is an ideal option for chemical equipment manufacturing because of its good chemical stability in some common acidic and alkaline environments.
Product Parameters
| Wall Thickness | 0.4-20mm or customized | Length | 5-2000mm or customized |
| Outer Diameter | 10-2500mm or customized | Certificate | ISO,SGS,BV |
| Standard | JIS,AISI,ASTM,GB,DIN,EN,etc. | ||
| Brand | 1000 Series: 105010601070110012001235 etc.3000 Series: 300330043005310431053A21 etc.5000 Series: 500550525083508651545182525157545A05 etc.6000 Series: 6061606360826A02 etc.7000 Series: 705074757075 etc.8000 Series: 8A0680118090 etc. | ||
| Surface | Coating,Embossing,Drawing,Polishing,Anodizing,etc. | ||
| OEM Service | Punching,Cutting special size,Making flat surface,Surface treatment,etc. | ||
| Application | Construction,Shipbuilding,Decoration,Industry,Manufacturing,Machinery,Hardware and other fields | ||
| Packaging | Strapping,Plastic bag,Film,Wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Allowance |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Allowance |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Allowance |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Allowance |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Allowance |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Allowance |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Allowance |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Allowance |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Allowance |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Allowance |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Allowance |
Mechanical Properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate (%) |
|---|---|---|
| ≥ 225 | ≥ 110 | ≥ 15 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity | Resistance Rate |
|---|---|---|---|---|
| 2.65 Kg/m³ | 570 °C | 72 GPa | 121 W/m.K | 0.058 x10 ^-6 Ω.m |
Annealing State
| Brand | Annealing State |
|---|---|
| 1xxx: 1050,1050A,1060,1100 | O,H12,H14,H16,H18,H22,H24,H26,H28,H111 |
| 3xxx: 3003,3004,3005,3105 | |
| 5xxx: 5005,5052,5754,5083,5086,5182,5049,5251,5454 | O,H22,H24,H26,H28,H32,H34,H36,H38,H111 |
| 6xxx: 6061,6082 | T4,T6,T451,T651 |
| 2xxx: 2024 | T3,T351,T4 |
| 7xxx: 7075 | T6,T651 |
Scope of Application
| Aluminum Uses And Application Area | |
| Food Packaging | Beverage can ends,cans,bottle caps,etc. |
| Building | Curtain walls,cladding,suspended ceilings,thermal insulation,venetian blinds,etc. |
| Transportation | Auto parts,passenger car bodies,aviation ships and air cargo containers. |
| Electronic Equipment | Electrical appliances,communication equipment,PC Plate drilling guide,lighting and heat dissipation materials,etc. |
| Consumer Goods | Umbrellas,cooking utensils,sports equipment,etc |
| Other | Military,color coated aluminum plate |
