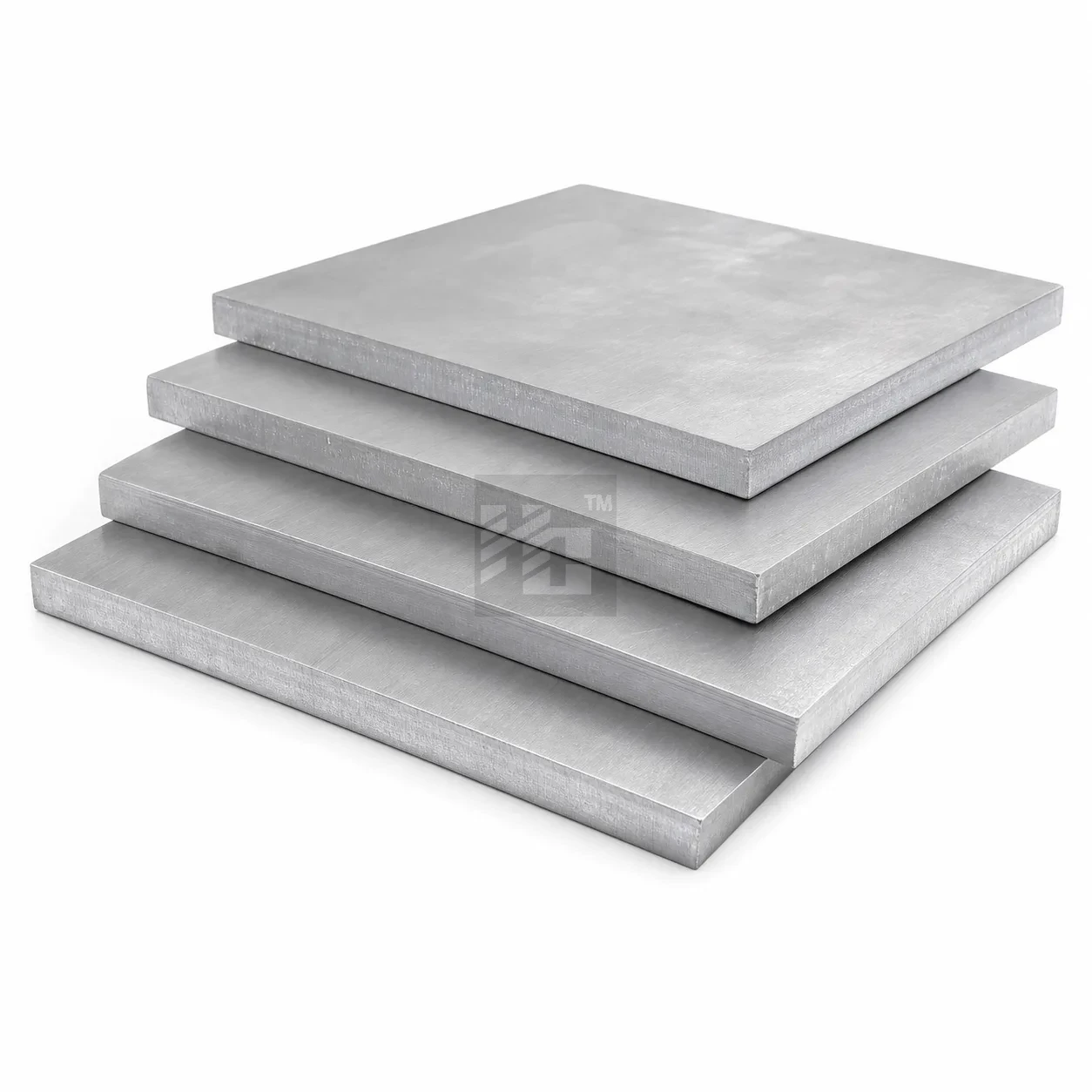

5A05 Aluminum Plate
SKU: HC-1138069963301150720
5A05 aluminum plate is made of an aluminum alloy material commonly used in aerospace, automotive manufacturing and structural engineering. It has good strength and corrosion resistance.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
5A05 aluminum plate is made of an aluminum alloy material commonly used in aerospace, automotive manufacturing and structural engineering. It has good strength and corrosion resistance. 5A05 aluminum plate has excellent resistance to atmospheric corrosion and can maintain surface smoothness and corrosion resistance in general atmospheric environments. This has led to its widespread use in outdoor environments, such as manufacturing building structures and vehicles. Besides, due to its resistance to seawater corrosion, 5A03 aluminum plate is often used in shipbuilding and marine engineering fields. The salt and moisture in seawater tend to corrode metal materials, and 5A03 aluminum alloy can effectively resist this corrosion and extend the service life of the material. Also, it has certain application potential in chemical equipment manufacturing because of its good chemical stability in some common acidic and alkaline environments.
Product Parameters
| Width | 20-3000mm or Customized | Thickness | 0.1-120mm or Customized |
| Length | 100-12000mm or Customized | Certificate | ISO,SGS,BV |
| Standard | JIS,AISI,ASTM,GB,DIN,EN,etc. | ||
| Brand | 1000 Series: 1050,1060,1070,1100,1200,1235,etc.3000 Series: 3003,3004,3005,3104,3105,3A21,etc.5000 Series: 5005,5052,5083,5086,5154,5182,5251,5754,5A05,etc.6000 Series: 6061,6063,6082,6A02,etc.7000 Series: 7050,7475,7075,etc.8000 Series: 8A06,8011,8090,etc. | ||
| Surface | Coating,Embossing,Drawing,Polishing,Anodizing,etc. | ||
| OEM Service | Punching,Cutting Special Size,Making Flat Surface,Surface Treatment,etc. | ||
| Application | Construction,Shipbuilding,Decoration,Industry,Manufacturing,Machinery,Hardware And Other Fields,etc. | ||
| Packaging | Strapping,plastic bag,film,wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Margin |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Margin |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Margin |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Margin |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Margin |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Margin |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Margin |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Margin |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Margin |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Margin |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Margin |
Mechanical Properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate (%) |
|---|---|---|
| ≥225 | ≥110 | ≥15 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity | Resistance Rate |
|---|---|---|---|---|
| 2.65 Kg/m³ | 570 °C | 72GPa | 121W/m.K | 0.058x10 ^-6 Ω.m |
Annealing State
| Brand | Annealing State |
|---|---|
| 1xxx: 1050,1050A,1060,1100 | O,H12,H14,H16,H18,H22,H24,H26,H28,H111 |
| 3xxx: 3003,3004,3005,3105 | |
| 5xxx: 5005,5052,5754,5083,5086,5182,5049,5251,5454 | O,H22,H24,H26,H28,H32,H34,H36,H38,H111 |
| 6xxx: 6061,6082 | T4,T6,T451,T651 |
| 2xxx: 2024 | T3,T351,T4 |
| 7xxx: 7075 | T6,T651 |
Scope of Application
| Aluminum Uses And Application Area | |
| Food Packaging | Beverage can ends,cans,bottle caps,etc. |
| Building | Curtain walls,cladding,suspended ceilings,thermal insulation,venetian blinds,etc. |
| Transportation | Auto parts,passenger car bodies,aviation ships and air cargo containers. |
| Electronic Equipment | Electrical appliances,communication equipment,PCPlate drilling guide,lighting and heat dissipation materials,etc. |
| Consumer Goods | Umbrellas,cooking utensils,sports equipment,etc |
| Other | Military,color coated aluminum plate |
