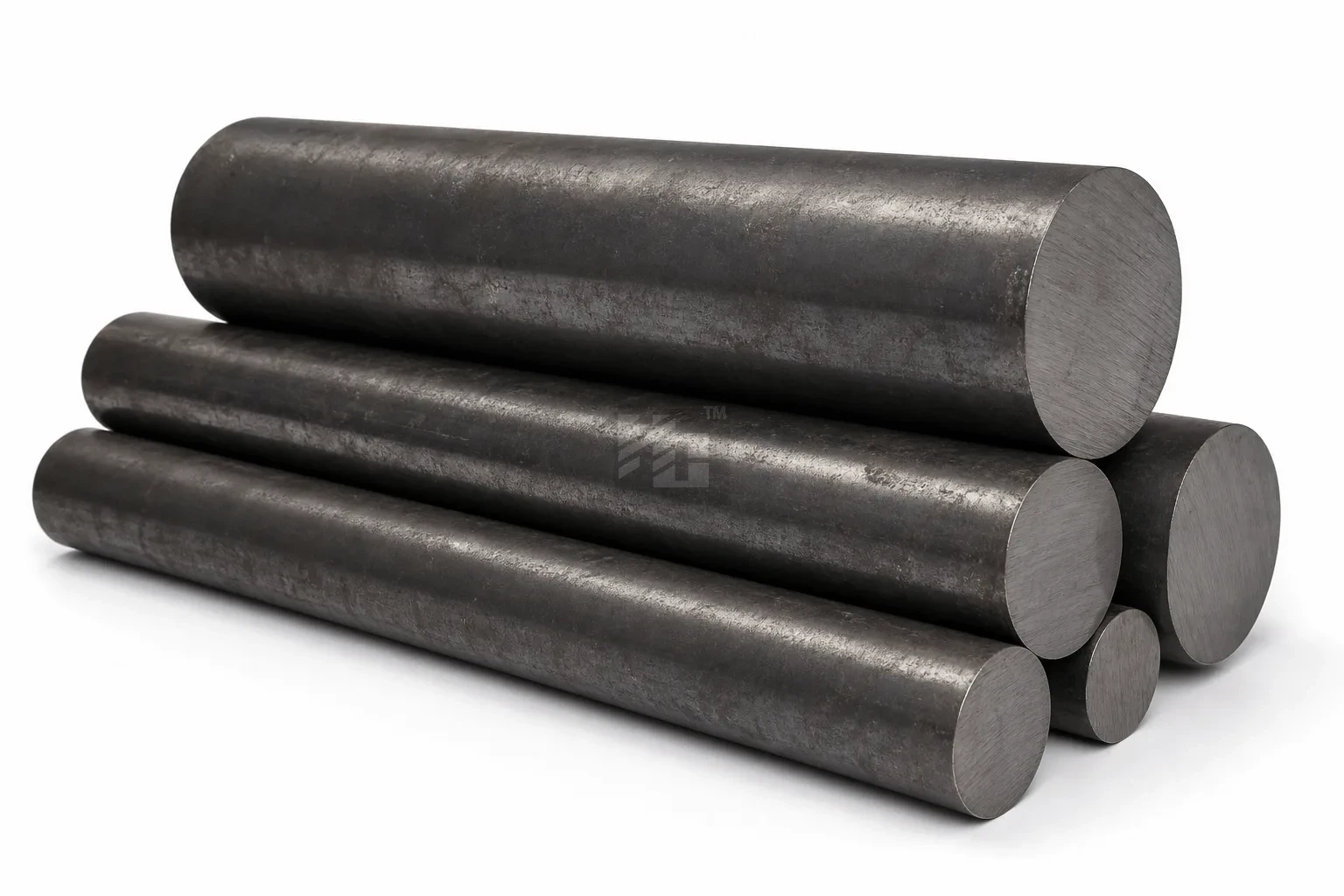

AISI/SAE 4340 Alloy Steel Bar
SKU: HC-1137084775220977664
AISI 4340 carbon steel bar is made of a heat treatable low alloy steel containing chromium, nickel and molybdenum. It has high toughness and high strength under heat treatment conditions.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:juniper@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
AISI 4340 carbon steel bar is made of a heat treatable low alloy steel containing chromium, nickel and molybdenum. It has high toughness and high strength under heat treatment conditions. AISI 4340 is a commonly used alloy steel with high strength, high toughness, good wear resistance and corrosion resistance. Its moderate carbon content gives it good machinability and weldability. In addition, it also contains appropriate amounts of chromium, nickel and other elements, which further improves its performance. At the same time, its toughness and ductility are also quite good, and it can maintain good performance even in both high or low temperature environments. Due to the excellent physical and mechanical properties of 4340 steel, 4340 steel bars are also widely used in equipment manufacturing in corrosive environments such as petroleum, chemical industry, and ships.
Product Parameters
| Product Name | AISI/SAE 4340 Alloy Steel Bar | |||
| Standard | EN / DIN / JIS / ASTM / BS / ASME / AISI,etc. | |||
| Common Round Bar Specifications | 3.0 - 50.8 mm,Over 50.8 - 300mm | |||
| Flat Steel Common Specifications | 6.35x12.7mm,6.35x25.4mm,12.7x25.4mm | |||
| Hexagon Bar Common Specifications | AF5.8mm - 17mm | |||
| Square Bar Common Specifications | AF2mm - 14mm,AF6.35mm,9.5mm,12.7mm,15.98mm,19.0mm,25.4mm | |||
| Length | 1 - 6 meters,Size Accept Custom | |||
| Diameter(mm) | Hot Rolling R ound Bar | 25 - 600 | Cold Rolling Square Bar | 6 - 50.8 |
| Hot Rolling Square Bar | 21 - 54 | Cold Rolling Hexagon Bar | 9.5 - 65 | |
| Cold Rolling Round bar | 6 - 101.6 | Forged Rebar | 200 - 1000 | |
| Surface Process | Bright,Polished,Black | |||
| Other Services | Machining(cnc),Centerless Grinding(cg),Heat Treatment,Annealing,Pickling,Polishing,Rolling,Forging,Cutting,Bending,Small Machining,etc. | |||
Chemical Composition
| Grade | Mn | S | C | P | Si | Cr | Ni |
|---|---|---|---|---|---|---|---|
| AISI 4340 | 0.60-0.80 | 0.035 | 0.38-0.43 | 0.04 | 0.15-0.35 | 0.70-0.90 | 1.65-2.00 |
Mechanical Properties
| Grade | Tensile Strength kg f/mm2 | Yield Strength kg f/mm2 | Elongation % | Hardness HB |
|---|---|---|---|---|
| AISI 4340 | ≥ 100 | ≥ 90 | ≥ 16 | 293-352 |
