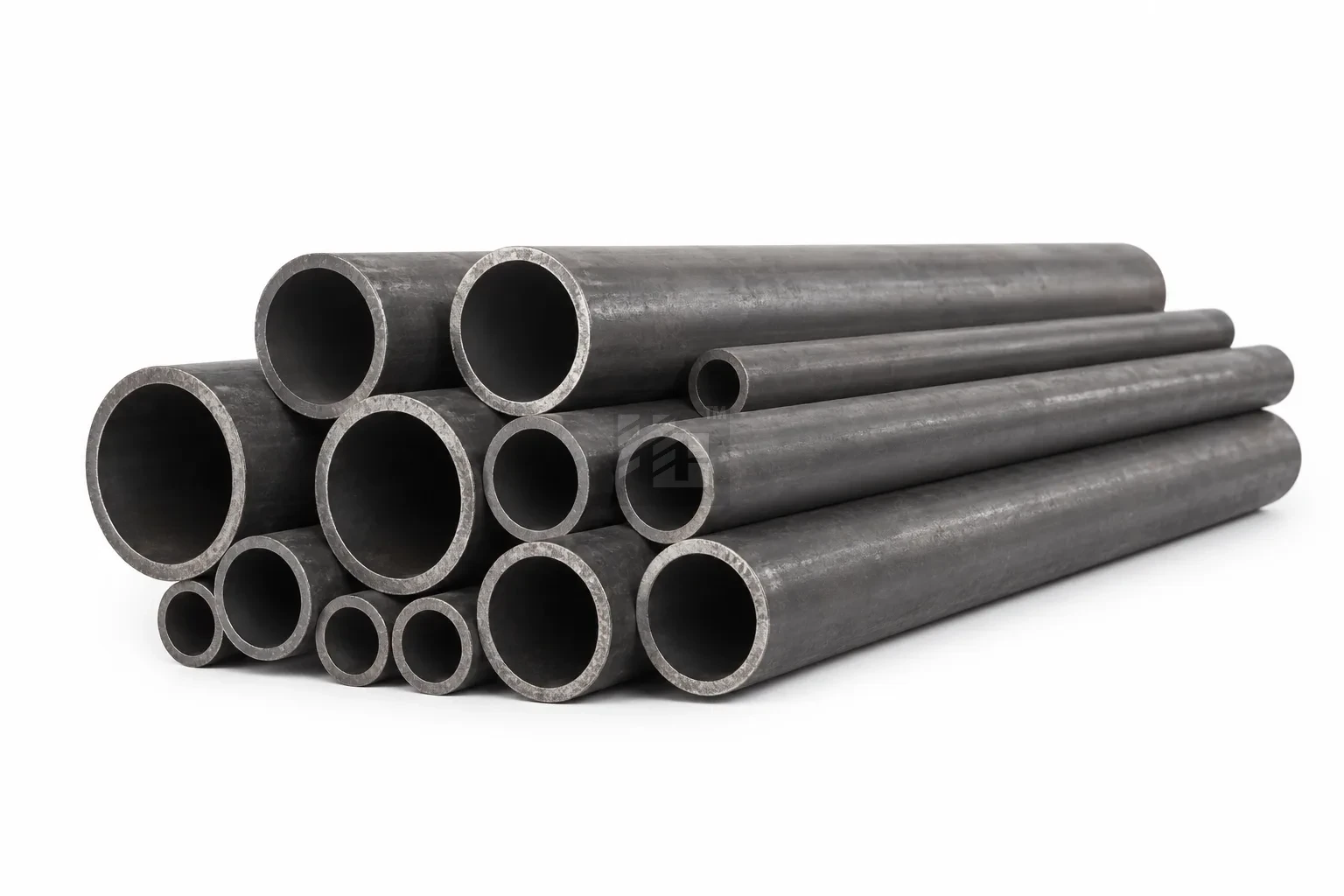

DIN 17175 Seamless Steel Pipe
SKU: HC-1137069683231121408
DIN 17175 is a standard specification for seamless tubes of heat-resistant steels used in elevated temperatures and high-pressure environments.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
DIN 17175 is a standard specification for seamless tubes of heat-resistant steels used in elevated temperatures and high-pressure environments. DIN 17175 standard covers a range of materials called heat-resistant steels, which are specifically de veloped to maintain their mechanical properties and structural integrity at elevated temperatures. These materials include various alloy and non-alloy steel grades, such as 15Mo3, 13CrMo44, 10CrMo910, and others.DIN 17175 pipes are intended for use in high-temperature and high-pressure environments, such as in boilers, pipelines, and heat exchangers. The standard outlines the requirements for dimensions, technical conditions, and mechanical properties of these tubes, ensuring their suitability and reliability in various industrial applications involving elevated temperatures.
Product Parameters
| Product Name | DIN 17175 Seamless Steel Pipe | |
| Standard | EN / DIN / JIS / ASTM / BS / ASME / AISI etc. | |
| Outer Diameter | Seamless: 1/4"-36" | Welding: 21.3mm-3620mm |
| Round Tube: 1/2"-10" | Square Tube /Rectangular Tube: 15x15mm-400x600mm | |
| Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm - 65mm |
| Length | 3-12 meters,Support customization | |
| Surface Process | Bright,Polished,Black | |
| Other Services | Machining(cnc),Centerless Grinding(cg),Heat Treatment,Annealing,Pickling,Polishing,Rolling,Forging,Cutting,Bending,Small Machining,etc. | |
Chemical Composition
| DIN 17175 | C | Si | Mn | P | S | Ni | Cr | Mo | Others |
|---|---|---|---|---|---|---|---|---|---|
| St35.8 | 0.17 Max | 0.10-0.35 | 0.40-0.80 | 0.040 Max | 0.040 Max | - | - | - | - |
| St45.8 | 0.21 Max | 0.10-0.35 | 0.40-1.20 | 0.040 Max | 0.040 Max | - | - | - | - |
| 17Mn4 | 0.14-0.20 | 0.20-0.40 | 0.90-1.20 | 0.040 Max | 0.040 Max | - | 0.30 Max | - | - |
| 19Mn5 | 0.17-0.22 | 0.30-0.60 | 1.00-1.30 | 0.040 Max | 0.040 Max | - | 0.30 Max | - | - |
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.80 | 0.035 Max | 0.035 Max | - | - | 0.25-0.35 | - |
| 13CrMo910 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | 0.035 Max | 0.035 Max | - | 0.70-1.10 | 0.45-0.65 | - |
| 10CrMo910 | 0.08-0.15 | 0.50 Max | 0.40-0.70 | 0.035 Max | 0.035 Max | - | 2.00-2.50 | 0.90-1.20 | - |
| 14MoV63 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | 0.035 Max | 0.035 Max | - | 0.30-0.60 | 0.50-0.70 | V: 0.22-0.32 |
| X20CrMoV121 | 0.17-0.23 | 0.50 Max | 0.40-0.70 | 0.030 Max | 0.030 Max | 0.30-0.80 | 10.00-12.50 | 0.80-1.20 | V: 0.25-0.35 |
Mechanical Properties
| DIN 17175 | Material No. | Minimum Yield Point MPa or N/mm2 | Tensile Strength | |
| WT: 16 mm Max | WT: 16-40 mm | |||
| St35.8 | 1.0305 | 235 | 225 | 360-480 |
| St45.8 | 1.0405 | - | 245 | 410-530 |
| 17Mn4 | 1.0481 | - | 275 | 460-580 |
| 19Mn5 | 1.0482 | - | 315 | 510-610 |
| 15Mo3 | 1.5415 | 275 | 275 | 450-600 |
| 13CrMo910 | 1.7335 | 295 | 295 | 440-590 |
| 10CrMo910 | 1.7380 | 285 | 285 | 450-600 |
| 14MoV63 | 1.7715 | 325 | 325 | 460-610 |
| X20CrMoV121 | 1.4922 | 490 | 490 | 690-850 |
