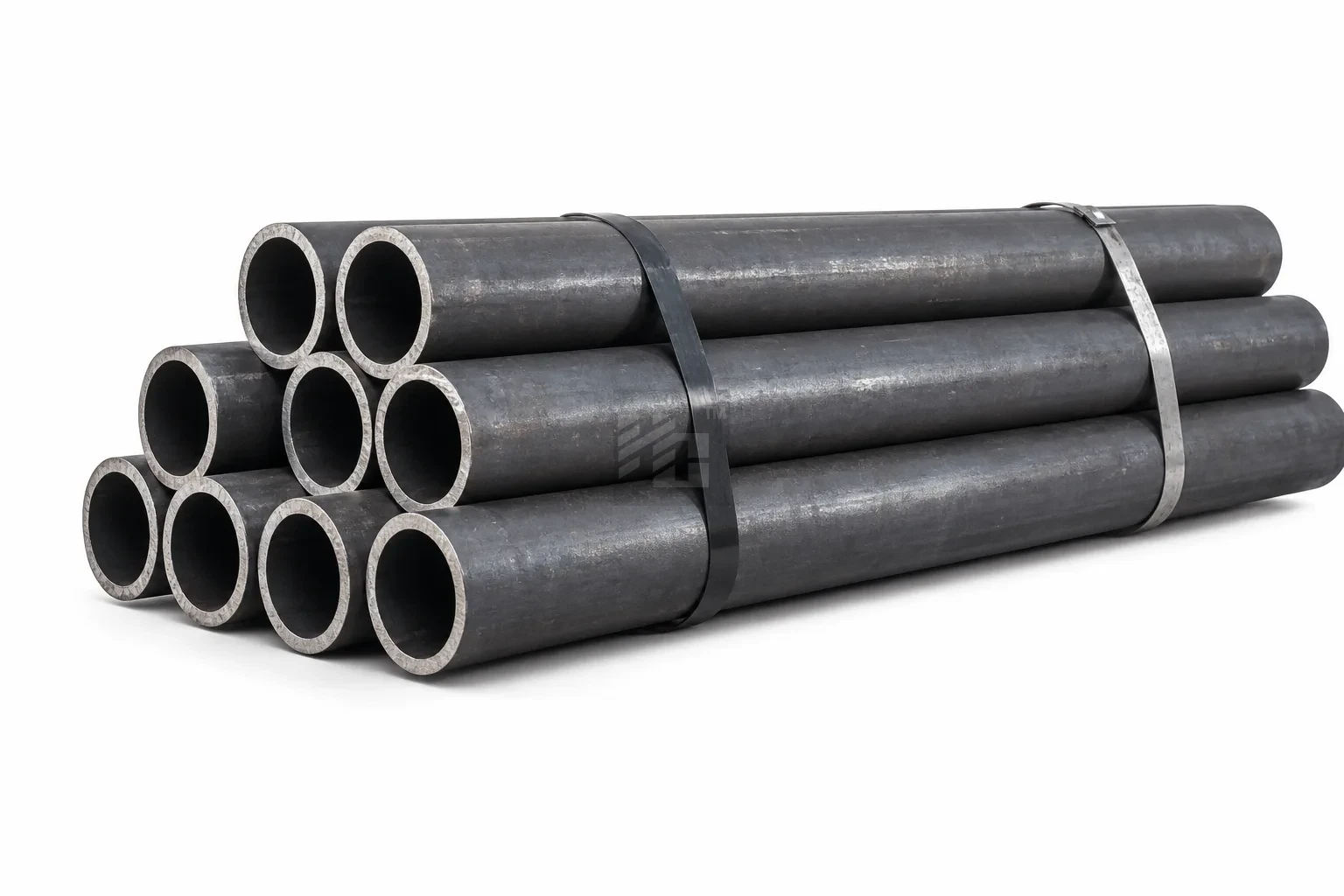

GB/T8162 Seamless Steel Pipe
SKU: HC-1137069117687947264
This standard applies to seamless steel tubes for general structural and mechanical structures. The main production of steel pipe grade includes Gr 10, Gr 20, Gr 35, Gr 45, Q345, 15CrMo, and 12Cr1MoV.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
This standard applies to seamless steel tubes for general structural and mechanical structures. The main production of steel pipe grade includes Gr 10, Gr 20, Gr 35, Gr 45, Q345, 15CrMo, and 12Cr1MoV. GB/T8162 is a standard seamless pipe, suitable for seamless pipes in general structures and mechanical structures. The parts after quenching and tempering of GB/T8162 seamless steel pipe have good comprehensive mechanical properties and are widely used in various important structural parts, especially those connecting rods, bolts, gears and shafts that work under alternating loads. However, the surface hardness is low and not wear-resistant. Quenching and tempering, as well as surface quenching can be used to improve the surface hardness of the parts.
Product Parameters
| Product Name | GB/T8162 Seamless Steel Pipe | |
| Standard | EN / DIN / JIS / ASTM / BS / ASME / AISI etc. | |
| Outer Diameter | Seamless: 1/4"-36" | Welding: 21.3mm-3620mm |
| Round Tube: 1/2"-10" | Square Tube /Rectangular Tube: 15x15mm-400x600mm | |
| Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm - 65mm |
| Length | 3-12 meters,Support customization | |
| Surface Process | Bright,Polished,Black | |
| Other Services | Machining(cnc),Centerless Grinding(cg),Heat Treatment,Annealing,Pickling,Polishing,Rolling,Forging,Cutting,Bending,Small Machining,etc. | |
Chemical Composition
| Grade | C | Si | Mn | P,S | Cu | Ni | Mo | Cr |
|---|---|---|---|---|---|---|---|---|
| 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | / | ≤ 0.15 |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | / | ≤ 0.25 |
| 35 | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | / | ≤ 0.25 |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | / | ≤ 0.25 |
| 16Mn | 0.12-0.20 | 0.20-0.55 | 1.20-1.60 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | / | ≤ 0.25 |
| 12CrMo | 0.08-0.15 | 0.17-0.37 | 0.40-0.70 | ≤ 0.035 | ≤ 0.25 | ≤ 0.30 | 0.40-0.55 | 0.40-0.70 |
| 15CrMo | 0.12-0.18 | 0.17-0.37 | 0.40-0.70 | ≤ 0.035 | ≤ 0.25 | ≤ 0.30 | 0.40-0.55 | 0.80-1.10 |
| 12Cr1MoV | 0.08-0.15 | 0.17-0.37 | 0.40-0.70 | ≤ 0.035 | ≤ 0.25 | ≤ 0.30 | 0.25-0.35 | 0.90-1.20 |
Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| 10 | ≥ 335 | ≥ 205 | ≥ 24 |
| 20 | ≥ 390 | ≥ 245 | ≥ 20 |
| 35 | ≥ 510 | ≥ 305 | ≥ 17 |
| 45 | ≥ 590 | ≥ 335 | ≥ 14 |
| 16Mn | ≥ 490 | ≥ 325 | ≥ 21 |
| 12CrMo | ≥ 410 | ≥ 265 | ≥ 24 |
| 15CrMo | ≥ 440 | ≥ 295 | ≥ 22 |
| 12Cr1MoV | ≥ 490 | ≥ 245 | ≥ 22 |
