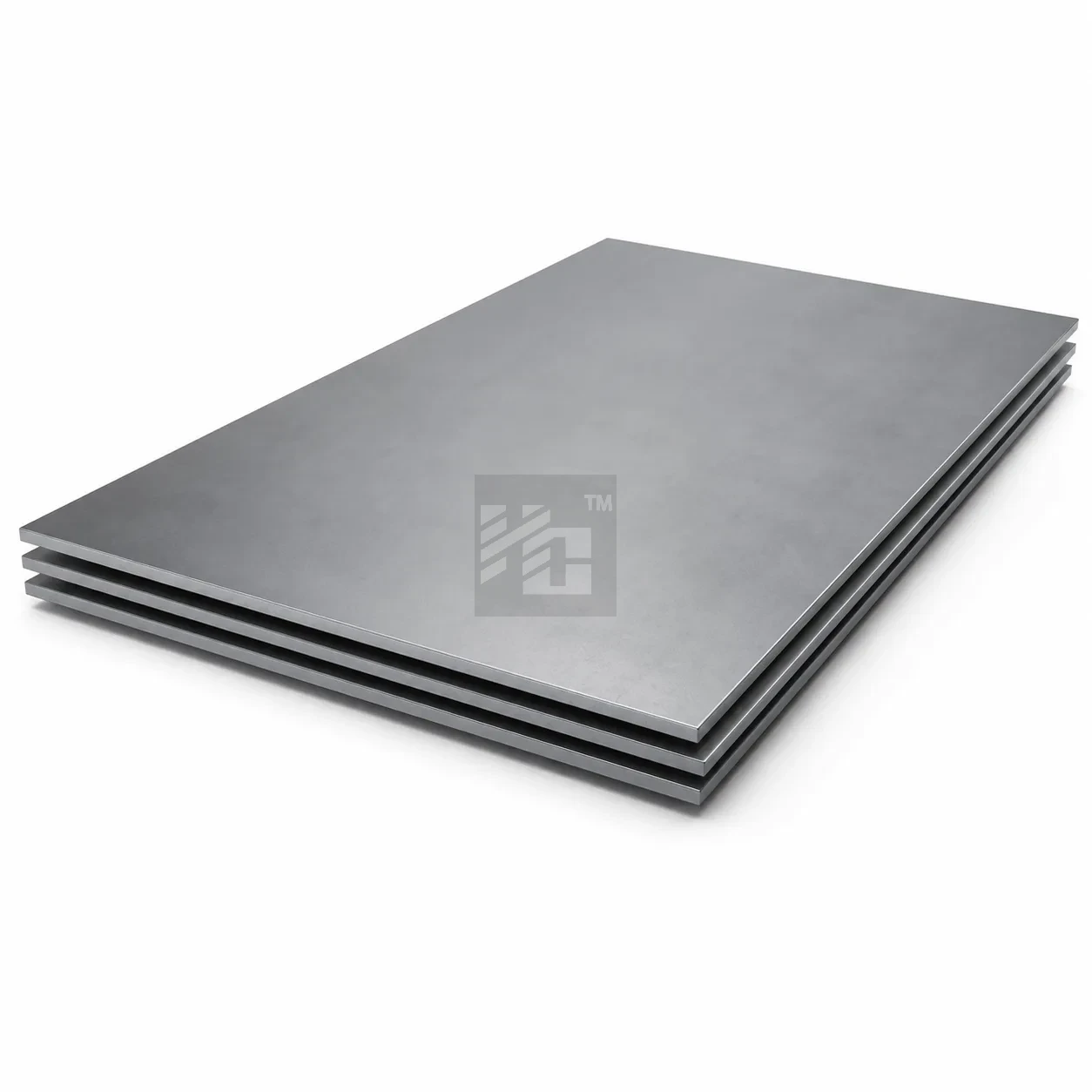

A283/Q195 Cold Rolled Steel Plate
SKU: HC-1134507802244657152
ASTM A283 is a carbon steel plate used for general structural purposes. The steel has low and medium tensile strength. The ASTM A283 steel specification covers four structural quality grades of mild steel, grades A, B, C, and D, for general application.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:juniper@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
ASTM A283 is a carbon steel plate used for general structural purposes. The steel has low and medium tensile strength. The ASTM A283 steel specification covers four structural quality grades of mild steel, grades A, B, C, and D, for general application. Due to its high strength and good plasticity, A283 steel plate exhibits excellent work hardening properties during cold forming. This means that after repeated cold working deformation, the steel plate can still maintain good strength and hardness, while its ductility and toughness have also been improved. In addition, due to its good welding performance, the plates are easy to weld into parts of various shapes and sizes, and the welding quality is stable and reliable. A283 steel plates are widely used in the manufacturing of various mechanical parts, such as bolts, nuts, pins and other standard parts as well as various non-standard mechanical parts. In addition, they are also used in the manufacture of building structural materials, such as steel bars, steel pipes, steel plates, etc..
Product Parameters
| Product Name | A283/Q195 Cold Rolled Steel Plate |
| Production Process | Hot Rolling,Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE,etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m,or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling,Annealing,Quenching,Tempered Or Standard |
| Surface Process | Ordinary,Wire Drawing,Laminated Film |
Chemical Composition
| A283 | C max. | Mn max. | P max. | S max. | Si (Greater 1 inch,less than 1/2 inch) | Si (Greater 1/2 inch) | Cu min. |
|---|---|---|---|---|---|---|---|
| Grade A | 0.14 | 0.90 | 0.035 | 0.04 | 0.40 | 0.15 - 0.40 | 0.20 |
| Grade B | 0.17 | 0.90 | 0.035 | 0.04 | 0.40 | 0.15 - 0.40 | 0.20 |
| Grade C | 0.24 | 0.90 | 0.035 | 0.04 | 0.40 | 0.15 - 0.40 | 0.20 |
| Grade D | 0.27 | 0.90 | 0.035 | 0.04 | 0.40 | 0.15 - 0.40 | 0.20 |
Mechanical Properties
| A283 | Tensile Strength | Yield Strength min. | Elongation Rate 8 Inches | Elongation Rate 2 Inches | ||
| Grade A | 45000 - 60000 psi | 310 - 415 MPa | 24000 psi | 165 MPa | 27% min. | 30% min. |
| Grade B | 50000 - 65000 psi | 345 - 450 MPa | 27000 psi | 185 MPa | 25% min. | 28% min. |
| Grade C | 55000 - 75000 psi | 380 - 515 MPa | 30000 psi | 205 MPa | 22% min. | 25% min. |
| Grade D | 60000 - 80000 psi | 415 - 550 MPa | 33000 psi | 230 MPa | 20% min. | 23% min. |
Physical Performance
| Physical Performance | Metric | Imperial |
|---|---|---|
| Density | 7.80 g/cc | 0.282 lb/in³ |
