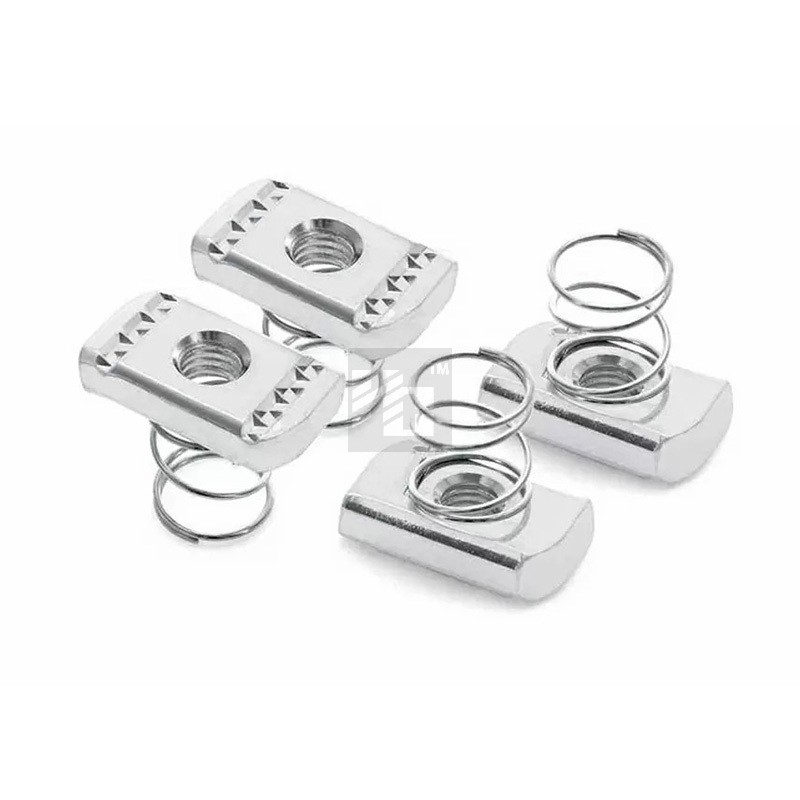

Spring Nuts
SKU: HC-1180173931705667584
The spring nut adopts a spring design with a certain degree of elasticity, which can keep the fastener in a long-term tightening state. This elasticity can make the spring nut have a certain buffering effect during operation, reducing the impact of external forces on the fastener.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
The spring nut adopts a spring design with a certain degree of elasticity, which can keep the fastener in a long-term tightening state. This elasticity can make the spring nut have a certain buffering effect during operation, reducing the impact of external forces on the fastener. Spring nut is a method of tightening threaded connections, which uses the principle of spring to automatically lock the nut onto the tensioner and maintain a certain pressure, making the connection subject to a more stable locking effect.
Product Parameters
| Size Of Spring Nuts | |||
| Diameter Size (d) | Nut (Length) | Nut (Width) | Nut (Thickness) |
| M6 | 34.5MM | 19MM | 6.0MM |
| M8 | 34.5MM | 19MM | 6.0MM |
| M10 | 34.5MM | 19MM | 8.0MM |
| M12 | 34.5MM | 19MM | 9.2MM |
| Diameter Size (d) | Nut (Length) | Nut (Width) | Nut (Thickness) |
|---|---|---|---|
| 1/4"-20UNC | 34.5MM | 19MM | 6.0MM |
| 3/8"-16UNC | 34.5MM | 19MM | 8.0MM |
| 1/2"-13UNC | 34.5MM | 19MM | 9.2MM |
