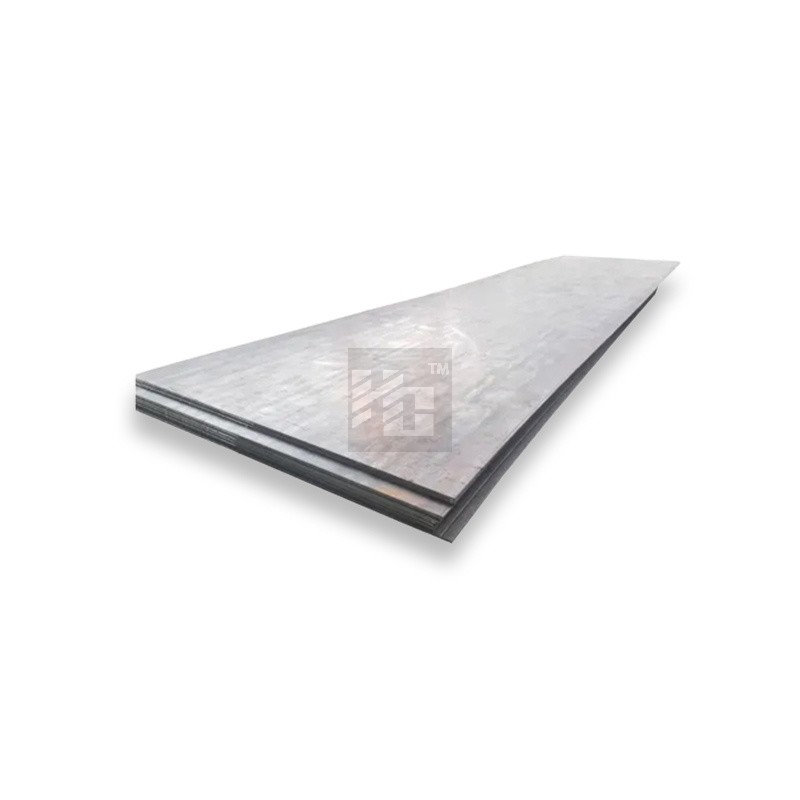

Docol 1100M Martensitic Steel (MS)
SKU: HC-1141696300914380800
As a high-grade martensitic steel with high tensile strength, Doco11100M helps to improve the anti-collision performance and provides reliable guarantee for lightweight design and cost-effective production in the automotive industry. Docol is one of the cold-rolled high-strength steels on the market and has become an ideal material for applications such as side anti-collision beams, bumpers and structural parts in the automotive industry.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
As a high-grade martensitic steel with high tensile strength, Doco11100M helps to improve the anti-collision performance and provides reliable guarantee for lightweight design and cost-effective production in the automotive industry. Docol is one of the cold-rolled high-strength steels on the market and has become an ideal material for applications such as side anti-collision beams, bumpers and structural parts in the automotive industry. As a high-grade martensitic steel with high tensile strength, Docol 1100 1100M helps to improve the anti-collision performance and provides reliable guarantee for lightweight design and cost-effective production in the automotive industry. Docol is one of the cold-rolled high-strength steels on the market and has become an ideal material for applications such as side anti-collision beams, bumpers and structural parts in the automotive industry.
Mechanical properties
| Steel Grade | Standard | Plating | Test Direction | Yield Strength Rp0.2 (MPa) | Tensile Strength Rm (MPa) | Extension Rate A80 (min %) | Minimum Bend Inner Diameter for 90 ° Bend |
|---|---|---|---|---|---|---|---|
| Docol CR860Y 1100T-MS | SSAB | UC,eg. | L | 860-1100 | 1100-1300 | 3 | 3.5xt |
Chemical Composition
| C (max %) | Si (max %) | Mn (max %) | P (max %) | S (max %) | Al (min %) | Nb+Ti (max %) | Cr+Mod(max %) | B(max %) | Cu(max %) |
|---|---|---|---|---|---|---|---|---|---|
| 0.13 | 0.40 | 1.90 | 0.020 | 0.010 | 0.010 | 0.10 | 1.00 | 0.10 | 0.20 |
Plating
| Plating Type | Plating Grade | Standard | Single-sided coating quality,single-point test (g/m2) | Single side thickness,for reference only(μm) |
|---|---|---|---|---|
| EG | ZE25/25 | EN 10152 | 12- | 1.7- |
| EG | ZE25/50 | EN 10152 | 29- | 4.1- |
| EG | ZE25/75 | EN 10152 | 47- | 6.6- |
| EG | ZE25/100 | EN 10152 | 65- | 9.1- |
