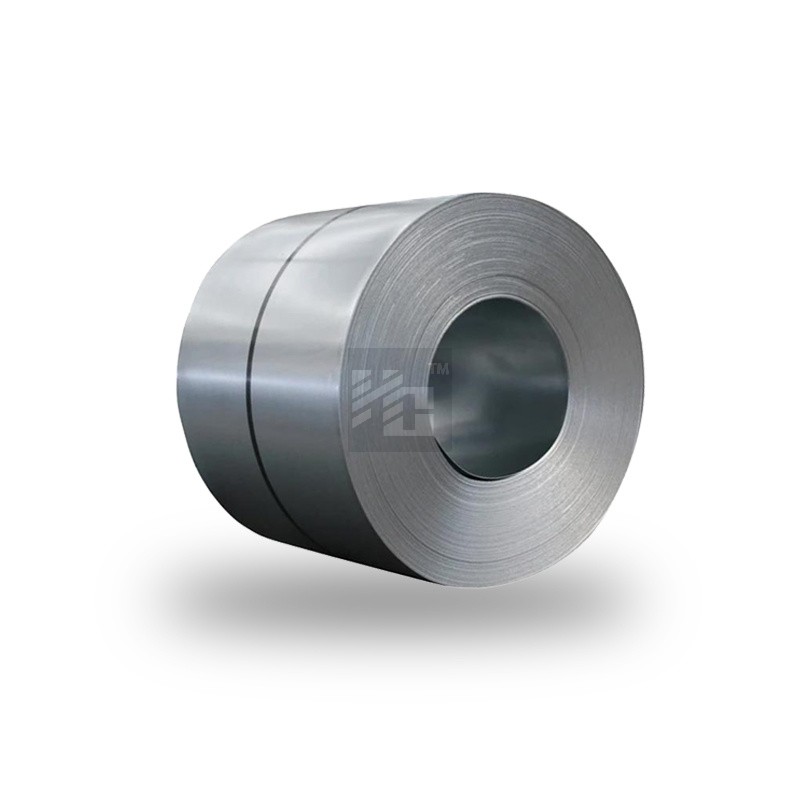

Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22
SKU: HC-1154747465813090304
Non-oriented electrical steel is a kind of ferrosilicon soft magnetic alloy with low carbon content, which is an indispensable material in electric power, electronic and military industry. With the development of high-speed and miniaturization of motors, the performance requirements of non-oriented silicon steel are put forward higher requirements, such as low iron loss and high magnetic induction strength at high frequency.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
Non-oriented electrical steel is a kind of ferrosilicon soft magnetic alloy with low carbon content, which is an indispensable material in electric power, electronic and military industry. With the development of high-speed and miniaturization of motors, the performance requirements of non-oriented silicon steel are put forward higher requirements, such as low iron loss and high magnetic induction strength at high frequency.
Fully Machined Non-oriented Electrical Steel (FP)M12/M15/M19/M22
| AISI | ASTM | Thickness | Max W/LB |
|---|---|---|---|
| M12 | 36F130 | 0.0140 | 1.30 |
| M15 | 36F145 | 0.0140 | 1.45 |
| 47F160 | 0.0185 | 1.60 | |
| M19 | 36F155 | 0.0140 | 1.55 |
| 47F165 | 0.0185 | 1.65 | |
| 64F200 | 0.0250 | 2.00 | |
| M22 | 36F165 | 0.0140 | 1.65 |
| 47F180 | 0.0185 | 1.80 | |
| 64F210 | 0.0250 | 2.10 | |
| M27 | 36F175 | 0.0140 | 1.75 |
| 47F200 | 0.0185 | 1.90 | |
| 64F235 | 0.0250 | 2.25 | |
| M36 | 36F185 | 0.0140 | 1.85 |
| 47F200 | 0.0185 | 2.00 | |
| 64F235 | 0.0250 | 2.35 | |
| M43 | 36F195 | 0.0140 | 1.95 |
| 47F210 | 0.0185 | 2.10 | |
| 64F250 | 0.0250 | 2.50 |
Product Parameters
| Category | Silicon Content/% | Nominal Thickness/Mm | Lord To Use Way | ||
| Hot Rolled Silicon Steel (No Orientation) | Hot rolled low silicon steel(Motor Steel) | 1.0~2.5 | 0.5 | Household motors and micromotors | |
| Hot rolled high silicon steel(Transformer steel) | 3.0~4.5 | 0.35,0.50 | Transformer | ||
| Cold Rolled Electrical Steel | Cold rolled non-oriented electrical steel(Motor Steel) | Low carbon electrical steel | ≤ 0.5 | 0.50,0.65 | Small transformers and ballasts for household motors,micromotors |
| Silicon steel | >0.5~3.5 | 0.35,0.50 | Medium and large motors,generators and transformers | ||
| Cold rolled grain oriented silicon steel(Transformer steel) | Ordinary oriented silicon steel | 2.9~3.3 | 0.18,0.23,0.270.30,0.35 | Large,medium and small transformers and ballasts | |
| High magnetic induction oriented silicon steel | |||||
| Special Purpose Silicon Steel | Cold rolled grain oriented silicon steel strip | 2.9~3.3 | 0.03,0.05,0.10 | Pulse transformer,magnetic amplifier,high frequency transformer and electric welding machine | |
| Cold rolled non-oriented silicon steel strip | 3.0 | 0.15,0.20 | High-frequency motors and generators | ||
| Cold rolled non-oriented silicon steel for magnetic switch | 3.0 | 0.70 | Relays and magnetic switches | ||
| Cold rolled high silicon steel | 6.5 | 0.1~0.5 | High-frequency motors,transformers and magnetic shielding | ||
