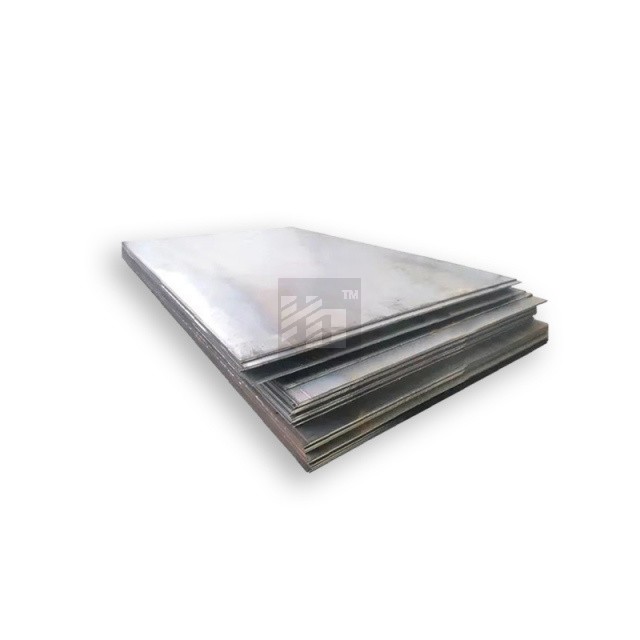

Docol PHS CR2000 Hot-Formed Steel (PHS)

SKU: HC-1141750656867975168

Docol PHS CR2000 is a steel that can be supplied in the form of hot rolled steel and cold rolled steel. Docol PHS CR2000 hot-formed steel is widely developed for parts made by direct or indirect hot forming in the automotive industry.

Testing & Certification

Key Features

  • Third-Party Inspection Support
  • Sufficient Inventory Supply
  • International Standard Certification
  • Custom Processing Service

Contact Us

Scan to chatWhatsApp QR Code

Product Description

Docol PHS CR2000 is a steel that can be supplied in the form of hot rolled steel and cold rolled steel. Docol PHS CR2000 hot-formed steel is widely developed for parts made by direct or indirect hot forming in the automotive industry. Hot-formed steel is a type of steel whose structure and properties change through thermo-mechanical processing (such as rolling, forging, extrusion, etc.) under high temperature. Hot-formed steel is more elastic than cold-formed steel, which means it can deform under larger bending and stretch forming conditions and is less likely to break. Therefore, it is suitable for material applications such as structural parts that need to withstand bending and deformation during use. Hot-formed steel has better toughness, which means it can withstand a larger hit or impact without breaking easily. It is suitable for applications that require protection or energy absorption, such as car bodies and security doors. Lastly, a thin layer of oxide film is formed on the surface of the steel when at high temperature, which can effectively prevent corrosion and oxidation of the steel.

Mechanical Properties

Steel GradeStandardStatusTest DirectionYield Strength Rp0.2 (MPa)Tensile Strength Rm (MPa)Extension Rate A80 (%)Extension Rate A5 (%)
Docol PHS FH 2000SSABFull hardT98011004-
Docol PHS CR 2000SSABFire after deliveryT33053026-
Docol PHS CR 2000SSABHot printingT138020405-
Docol PHS HR 2000SSABhot rollingT4906901822
Docol PHS HR 2000 ASSABAnnealingT3305402731
Docol PHS HR 2000SSABHot printingT1360204067

Chemical Composition

BrandC (max %)Si (max %)Mn (max %)P (max %)S (max %)Cr (max %)B (max %)Nb Title (max %)
Docol PHS CR 20000.30-0.380.15-0.351.10-1.500.0250.0050.350.0010-0.00500.2
Docol PHS HR 20000.30-0.380.15-0.351.10-1.500.0250.0050.350.0010-0.00500.2
