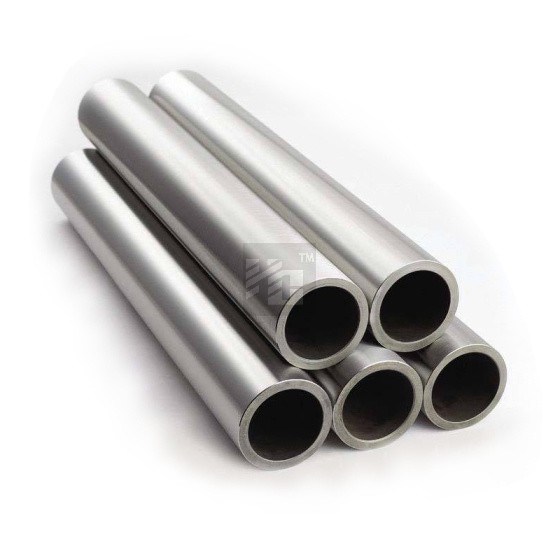

420 Stainless Steel Pipe
SKU: HC-1131508106580029440
420 stainless steel is a high-carbon stainless steel, mainly composed of chromium, carbon and molybdenum, with good corrosion resistance and strength.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
420 stainless steel is a high-carbon stainless steel, mainly composed of chromium, carbon and molybdenum, with good corrosion resistance and strength. 420 stainless steel pipe is a medium carbon (0.15% to 0.40%) chromium stainless steel . 420 stainless steel has limited heat resistance and is more suitable for low-temperature working environments. Its maximum operating temperature is usually 650 ° C. Heat treatment processes, such as solution treatment and quenching and annealing, can be performed to improve the heat resistance of 420 stainless steel. These treatments can improve the material's grain boundary structure and grain size, thereby improving its heat resistance. 420 stainless steel pipe has lower heat resistance than other heat-resistant stainless steels and works more efficiently in low temperature environments. In high temperature applications, it is recommended to choose stainless steel materials with better heat resistance.
Product Parameters
| Product Name | 420 Stainless Steel Pipe | |
| Type | Steel Pipe | |
| Outer diameter | Round Tube | 4mm-200mm |
| Square Tube | 10*10mm-100*100mm | |
| Rectangular Tube | 10*20mm-50*100mm | |
| Wall Thickness | 0.6mm-6.0mm | |
| Length | 1-6 meters,Length can be customized | |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. | |
| Surface | Black,Bright Polished,Rough Turning,Matt Surface Treatment,No.4. BA,etc. | |
| Scope of Application | Common applications for stainless steel pipes include food processing,Textile operations,Breweries,Water treatment plants,Oil and gas processing,Fertilizers and pesticides,Chemical applications,Construction,Pharmaceuticals,Auto parts,etc. | |
| Certificate | ISO,SGS,BV,etc. | |
| Production Technology | Hot Rolling,Cold Rolling | |
| Edge Processing | Edging,Trimming | |
Chemical Composition
| C | Si | Mn | Cr | S | P |
|---|---|---|---|---|---|
| ≤ 0.15 | ≤1.0 | ≤1.0 | 12.0～14.0 | ≤ 0.03 | ≤ 0.04 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥ 634 | ≥ 440 | ≥ 20 | Annealing ≤ 223HB; quenching and tempering ≥ 192HB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10 -6 /°C) | Coefficient of Thermal Conductivity(W/m * K) | Resistivity(ΜΩ. cm) |
|---|---|---|---|---|
| 7.74 | 200 | 10.2 | 24.9 | 55 |
