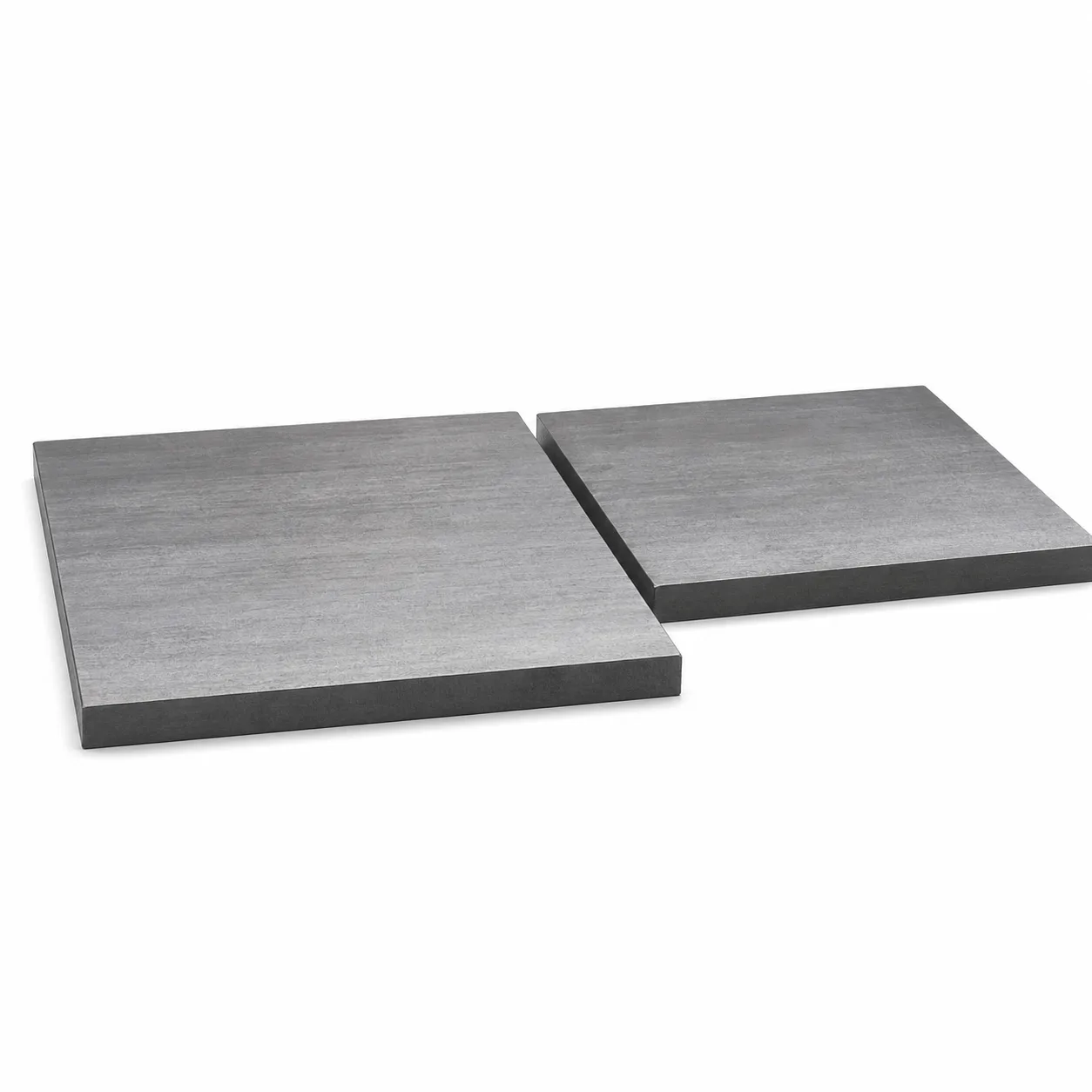

DIN 17155 压力容器钢板
型号: HC-1134527101439148032
DIN 17155压力容器钢板是锅炉和压力容器用钢。除了锅炉和压力容器，DIN 17155压力容器钢亦用于制造高温液体输送管道。
核心优势
- ✓支持三方检测
- ✓充足库存供应
- ✓国际标准认证
- ✓定制加工服务
联系我们
- 电话：+86 15052357278
- 邮箱：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
扫码沟通
产品描述
DIN 17155压力容器钢板是锅炉和压力容器用钢。除了锅炉和压力容器，DIN 17155压力容器钢亦用于制造高温液体输送管道。
Product Parameters
| Product Name | DIN 17155 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling,Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE,etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m,or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling,Annealing,Quenching,Tempered or Standard |
| Surface Process | Ordinary,Wire Drawing,Laminated Film |
Chemical Composition
| DIN 17155 | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|---|
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.90 | 0.035 | 0.03 | - | 0.25 | 0.3 | 0.3 | 0.25-0.35 |
| 13CrMo44 | 0.08-0.18 | 0.10-0.35 | 0.40-0.10 | 0.035 | 0.03 | - | 0.70-1.10 | 0.3 | - | 0.4-0.6 |
| 17Mn4 | 0.14-0.20 | 0.4 | 0.90-1.40 | 0.035 | 0.03 | 0.02 | 0.25 | 0.3 | 0.3 | 0.1 |
| 10CrMo9-10 | 0.06-0.15 | 0.5 | 0.40-0.70 | 0.035 | 0.03 | - | 2.00-2.50 | 0.3 | - | 0.9-1.0 |
| 19Mn6 | 0.2 | 0.5 | 0.90-1.70 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 |
| HI | 0.16 | 0.35 | 0.40/1.20 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 |
| HII | 0.2 | 0.35 | 0.50-1.30 | 0.035 | 0.03 | 0.02 | 0.25 | 0.3 | 0.3 | 0.1 |
Equivalent Material
| DIN 17155 | Material No. | EN 10028-2 | UNI 5869 | BS 1501 | A 36087 | ASTM | JIS G3115 |
|---|---|---|---|---|---|---|---|
| HI | 1.0345 | P235GH | Fe360 - 1KW | 161 Gr.360 / 164 Gr.360 | A37RCI | A285 Gr.C / A414 Gr.C / A516 Gr.55 | SPV 24 |
| HII | 1.0425 | P265GH | Fe410 - 1KW | 161 Gr.400 / 164 Gr.400 / 224 Gr.400 | A42RCI | A414 Gr.E / A516 Gr.60 | - |
| 17Mn4 | 1.0481 | P295GH | Fe460 - 1KW | 224 Gr.490 | A47RCI | A414 Gr.F / A516 Gr.65 | SPV 32 |
| 19Mn6 | 1.0473 | P355GH | Fe510 - 1KW | - | A52RCI | A414 Gr.G | SPV 36 |
| 15Mo3 | 1.5415 | 16Mo3 | 15Mo3 | 1503 - 243 B | 16Mo3 | A204 Gr.B | - |
| 13CrMo44 | 1.7335 | 13CrMo4-5 | 14CrMo4.5 | 620 Gr.27 | 14CrMo4.5 | A387 Gr.12 | - |
| 10CrMo910 | 1.7380 | 10CrMo9-10 | - | 622 Gr.31 | - | A387 Gr.22 | - |
