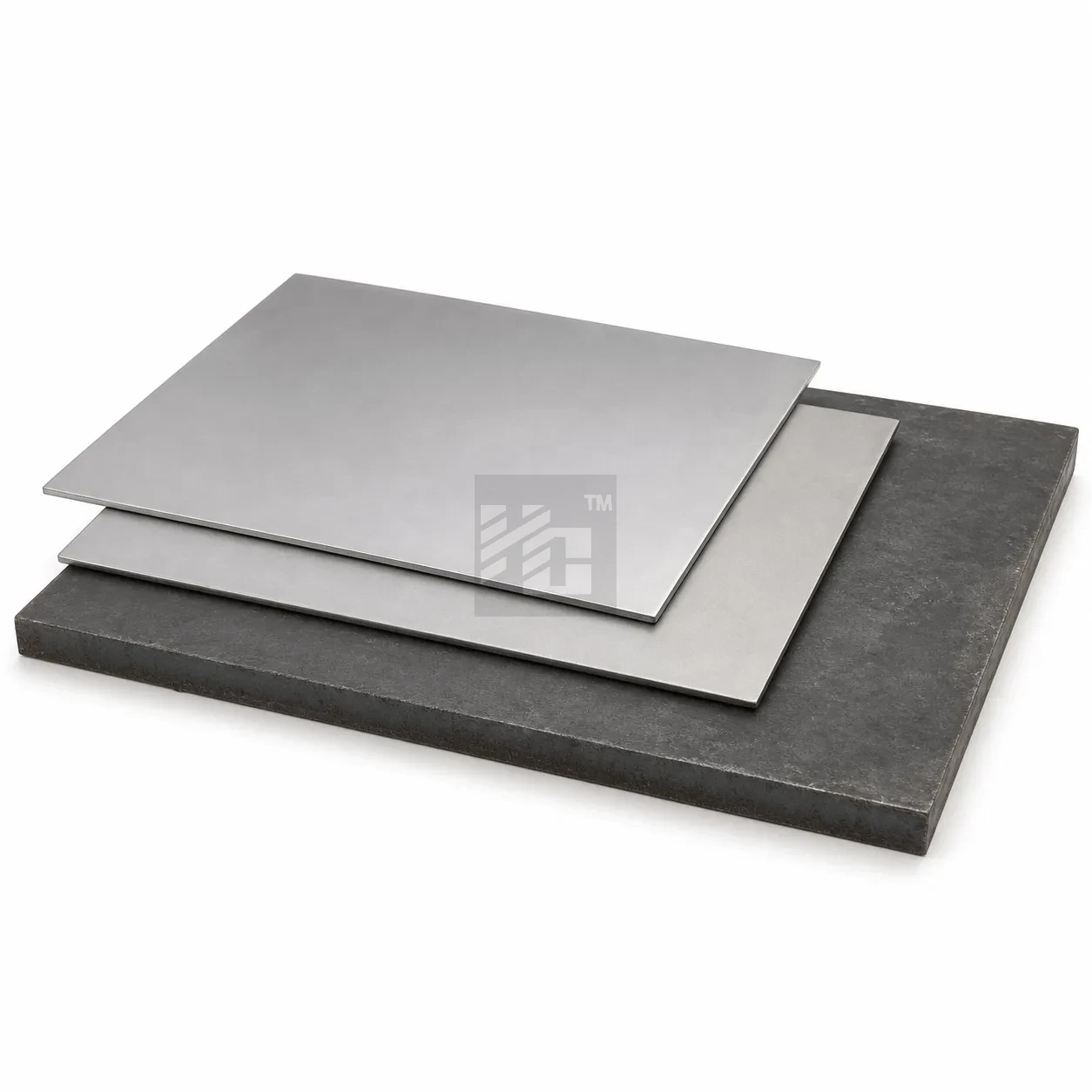

DIN 17100 ST37/ST52碳钢板
型号: HC-1134514453894901760
DIN 17100钢板适用于翼缘梁、钢筋、钢带、钢板、宽扁钢、无缝钢管和焊接钢管、方形和矩形空心型材，根据标准，DIN 17100钢板用于焊接、铆接和螺纹结构部件产品，除应力消除热处理和正火外，不用于热处理。
核心优势
- ✓支持三方检测
- ✓充足库存供应
- ✓国际标准认证
- ✓定制加工服务
联系我们
- 电话：+86 15052357278
- 邮箱：juniper@hongchen-steel.com
- WhatsApp：+86 15052357278
扫码沟通
产品描述
DIN 17100钢板适用于翼缘梁、钢筋、钢带、钢板、宽扁钢、无缝钢管和焊接钢管、方形和矩形空心型材，根据标准，DIN 17100钢板用于焊接、铆接和螺纹结构部件产品，除应力消除热处理和正火外，不用于热处理。
Product Parameters
| Product Name | DIN 17100 ST37/ST52 Carbon Steel Plate |
| Production Process | Hot Rolling,Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE,etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m,or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling,Annealing,Quenching,Tempered or Standard |
| Surface Process | Ordinary,Wire Drawing,Laminated Film |
Chemical Composition
| Brand | C | P | S | N | ||||
| ≤ 16 mm | 16-32 mm | 32-40 mm | 40-63 mm | 63-100 mm | ||||
| St37-2 | 0.17 | 0.20 | 0.20 | 0.20 | 0.20 | 0.050 | 0.050 | 0.009 |
| USt37-2 | 0.17 | 0.20 | 0.20 | 0.20 | 0.20 | 0.050 | 0.050 | 0.007 |
| RSt37-2 | 0.17 | 0.17 | 0.17 | 0.20 | 0.20 | 0.050 | 0.050 | 0.009 |
| St37-3 | 0.17 | 0.17 | 0.17 | 0.17 | 0.17 | 0.040 | 0.040 | - |
| St52-3 | 0.204 | 0.204 | 0.22 | 0.22 | 0.22 | 0.040 | 0.040 | - |
| ST12 Chemical Elements | C | Mn | P | S | Al |
|---|---|---|---|---|---|
| Percentage | ≤ 0.10 | ≤ 0.50 | ≤ 0.035 | ≤ 0.035 | ≥ 0.020 |
| Steel grade | Chemical Composition % | |||||
| C | Mn | p | S | Alta | Ti b | |
| DC04 (St14,St15) | ≤ 0.08 | ≤ 0.40 | ≤ 0.025 | ≤ 0.020 | ≥ 0.020 | - |
Mechanical Properties
| Brand | Tensile Strength | Yield Strength | |||||
| < 3 mm | 3-100 mm | ≤ 16 mm | 16-40 mm | 40-63 mm | 63-80 mm | 80-100 mm | |
| St37-2 | 360-510 | 340-470 | 235 | 225 | 215 | 205 | 195 |
| USt37-2 | - | - | - | - | - | - | - |
| RSt37-2 | - | - | 235 | 225 | 215 | 215 | 215 |
| St37-3 | - | - | - | - | - | - | - |
| St52-3 | 510-680 | 490-630 | 365 | 355 | 345 | 335 | 325 |
| ST12 Mechanical Properties | Tensile Strength | Yield Strength | Elongation |
| 270-410 MPa | ≤ 280 MPa | ≥ 28% |
| Steel grade | Yield Strength a MPa | Tensile Strength Mpa ≥ | After Breakage Percent Elongation (L o =80mm,b=20mm) % ≥ | r,b,c ≥ | n,b,c ≥ | |||
| Nominal Thickness mm | ||||||||
| < 0.70 | 0.70-< 1.0 | 1.0-< 1.6 | ≥ 1.6 | |||||
| DC04 (St14,St15) | 120-210 | 270 | 36 | 38 | 39 | 40 | 1.5 | 0.18 |
